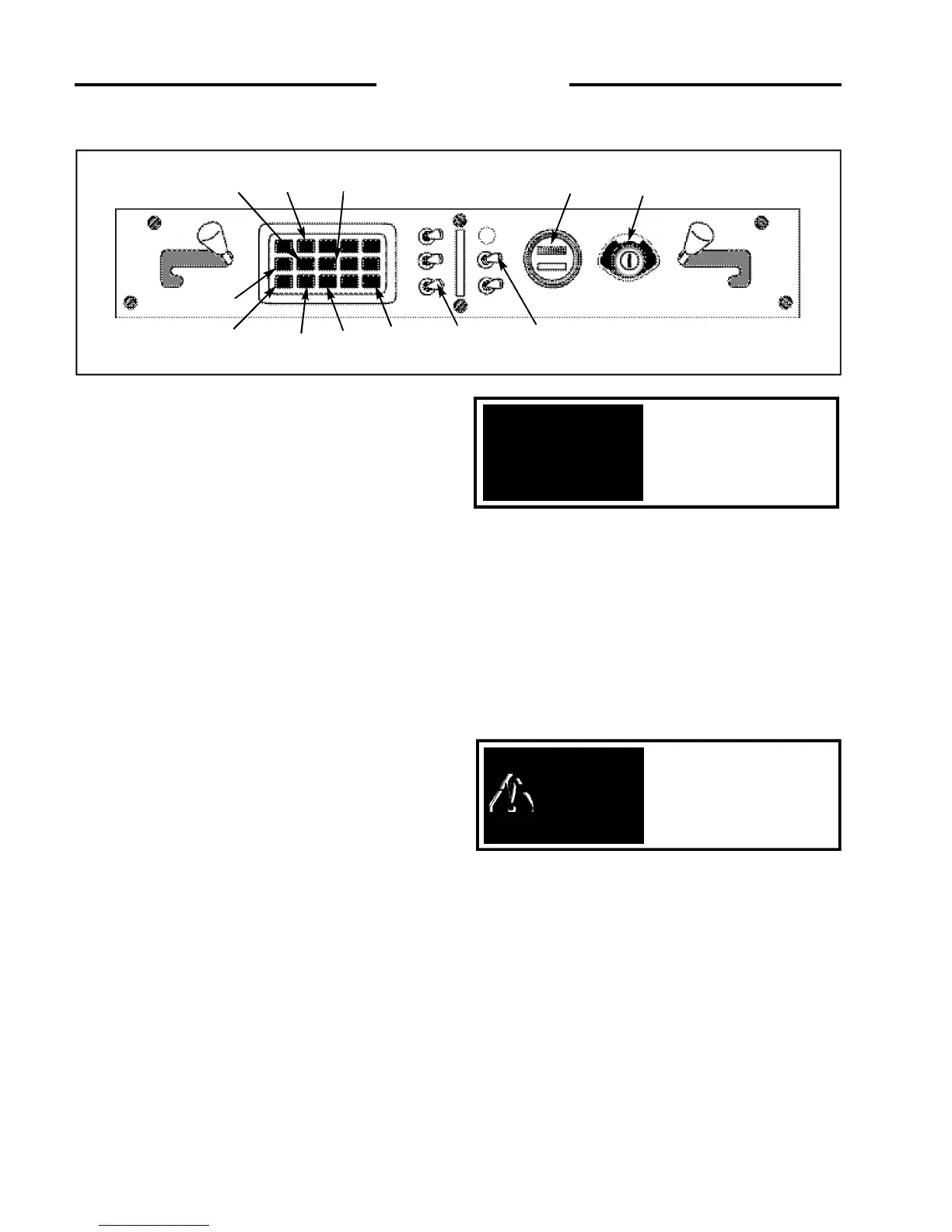

2. 1 INSTRUMENT PANEL
1. Engine Oil Pressure
If the light comes on during operation or fails to go out
after starting, shut off the engine immediately and
determine cause.
2. Engine Coolant Temperature
Light comes on when coolant is too hot.
3. Light Switch (Optional)
The light switch is an on-off toggle switch.
4. Hour Meter
The hour meter records the number of engine operating
hours and has a total read out of 9999.9 hours.
5. Fuel Gauge
This gaugeindicates the quantity of fuel in the tank.
6. Hydraulic Oil Temperature Light
The hydraulic oil temperature light comes on when the
hydraulic oil becomes too hot.
7. Engine Pre-Heat Indicator (Diesel only)
The diesel engine is equipped with glow plugs to assist in
starting. The glow plug indicator light will turn red when
glow plugs are activated.
8. Ignition Switch
The ignition switch is a four position switch, off, pre-heat,
run and start. Turning the key counter clockwise will
engage the engine pre-heat. To engage the starter, turn the
key clockwise. When the key is released it will return to
run position.
9. Alternator Light
The alternator light will come on if the alternator is not
producing sufficient current. Refer to the engine manual
for test procedures.
10. Seat Belt Light
Refer to Section 2. 2.
11. Auxiliary Hydraulics Switch (Optional)
The panel mounted on/off switch will provide continuous
hydraulic flow of the auxiliary circuit.
12. Park Brake Light
Park brake light is illuminated when the park brake is
engaged.
13. Auxiliary Hydraulic Light
Auxiliary hydraulic light is illuminated when the
auxiliary hydraulics are engaged.
6
2 CONTROLS
The diesel engine is
equipped with glow plugs.
Do not use ether or any
high energy fuels to assist
starting.
To prevent personal
injury do not start the
engine unless you are in
the seat with the seat belt
fastened around you.
IMPORTANT
WARNING
C3066
Fig. 2. 1
13 10
8
4, 5
113
12
2 9
7
1
6
