Thomas 85 - Loader Specifications

50
5 SPECIFICATIONS

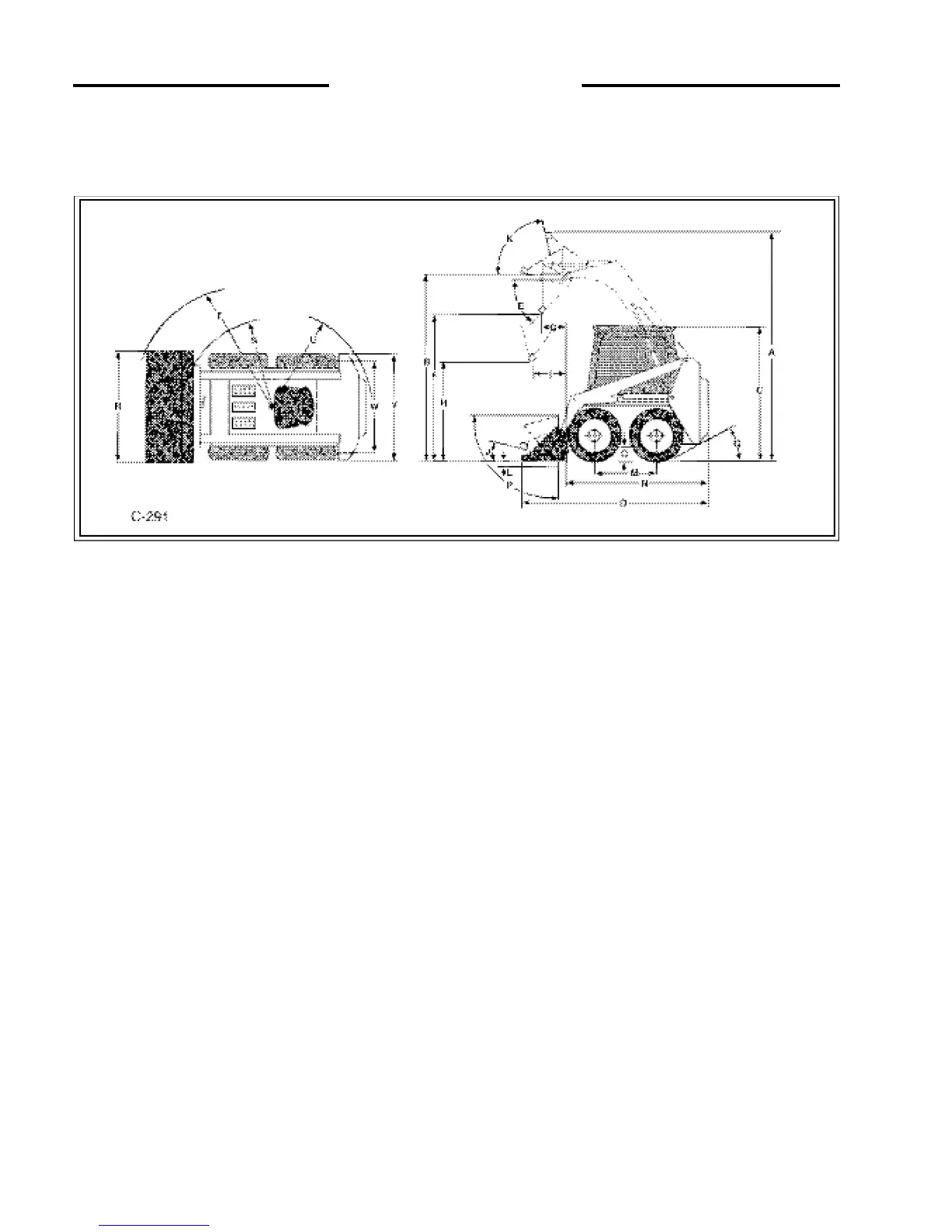

Dimensions:
85
A. Overall operating height . . . . .121.5” (3086 mm)
B. Height to hinge pin . . . . . . . . .93.5” (2375 mm)
C. Overall height of vehicle . . . . .71.5” (1816 mm)
D. Overall length with bucket . . . 105” (2667 mm)
E. Dump angle . . . . . . . . . . . . . . . 45°
F. Dump height . . . . . . . . . . . . . . 69” (1753 mm)
G. Reach — fully raised . . . . . . . . 14.5” (368 mm)
H. Height at 45° dump angle . . . . 69” (1753 mm)
I. Reach at 45° dump angle . . . . 14.5” (368 mm)
J. Maximum roll back at ground . 30°
K. Maximum roll back fully raised 94°
M. Wheel base . . . . . . . . . . . . . . .33.18” (843 mm)
N. Overall length less bucket . . . .83.5” (2121 mm)
O. Ground clearance . . . . . . . . . . . 7” (178 mm)
P. Maximum grading angle –
bucket . . . . . . . . . . . . . . . . . . . 91°
Q. Angle of departure . . . . . . . . . . 30°
R. Bucket width . . . . . . . . . . . . . . 36” (914 mm)
S. Clearance circle – front –
less bucket . . . . . . . . . . . . . . . . 38.0” (967 mm)
T. Clearance circle – front –
with bucket . . . . . . . . . . . . . . .60.25” (1530 mm)
U. Clearance circle – rear . . . . . . . 48” (1219 mm)
V. Overall width – less bucket . . .35.75” (908 mm)
W. Tread . . . . . . . . . . . . . . . . . . . . . 29.25” (743mm)
Operational:
*Rated operating capacity . . . . . . . 900 lbs. (408 kg)
Travel speed . . . . . . . . . . . . ..0 - 5.0 mph (0 - 8 km/hr)
Pump capacity . . . . . . . . . . . . . . .8.0 GPM (30.3 l/min)
@ 2150 PSI (148.2 Bar)
Shipping weight . . . . . . . . . . . . . 2670 lbs. (1211 kg)
Operating weight . . . . . . . . . . . . 3000 lbs. (1361 kg)
Controls:
VEHICLE: Steering direction and speed controlled
by two hand-operated control levers.
HYDRAULICS: Boom lift, bucket tilt and auxiliary hy-
draulic functions controlled by separate
foot pedals.
ENGINE: Hand lever throttle and key type
ignition starter and stop switch.
Engine:
Loader model . . . . . . . . . . . . . . . . . . . . . . 85
Make and model . . . . . . . . . . . . . . . . . . . Kubota
(D722B)
Cylinders . . . . . . . . . . . . . . . . . . . . . . . . . 3
Cooling system . . . . . . . . . . . . . . . . . . . . Liquid
*Equipped with flotation tires 19TE0190 and dirt bucket
19TE0186
5. 1 LOADER SPECIFICATIONS
