3 OPERATION
Drive the loader forward slowly. As the bucket begins to fill,
push on the heel of the bucket pedal to raise the front of the
bucket (Fig. 3. 3B) and push on the heel of the boom pedal to
raise the lift arms. When the bucket is full, back away from
the pile. For hand control units, move the R.H. control lever
towards you to raise the front of the bucket and move the L.H.
control lever away from you to raise the lift arms (Fig. 3. 3B).
When the bucket is full back away from the pile.
Drive the loader forward slowly. As the bucket begins to fill,
push on the heel of the bucket pedal to raise the front of the
bucket (Fig. 3. 3B) and push on the heel of the boom pedal to
raise the lift arms.
To dump the bucket (Fig. 3. 3C) push down on the heel of the
boom pedal to raise the bucket. Push down on the toe of the
bucket pedal small amounts as the boom arms are raising to
stop material from falling off the back of the bucket. When
the bucket is at the correct height for dumping, push on the
toe of the bucket pedal to empty the bucket.
For hand control units, move the L.H. control lever away
from you (Fig. 3. 3C) to raise the boom. Move the R.H.
control lever away from you in small amounts as the boom
arms are raising to stop material from falling from the back of
the bucket. When the bucket is at the correct height for
dumping, move the R.H. lever away from you to empty the
bucket.
3. 4 DIGGING WITH A BUCKET
Push on the toe of the boom pedal and lower the boom
completely down. Push on the toe of the bucket pedal and
place the cutting edge of the bucket on the ground (Fig. 3.
4A). Drive the loader forward at a slow rate and continue to
tilt the bucket down until it enters the ground. For hand
control units, move the L.H. control lever towards you to
lower the boom completely down. Move the R.H. control
lever away from you and place the cutting edge of the bucket
on the ground (Fig. 3. 4A).
To prevent personal
injury when starting or
operating loader in an
enclosed area make sure
there is enough
ventilation.EXHAUST
FUMES CAN KILL.
WARNING
C-707

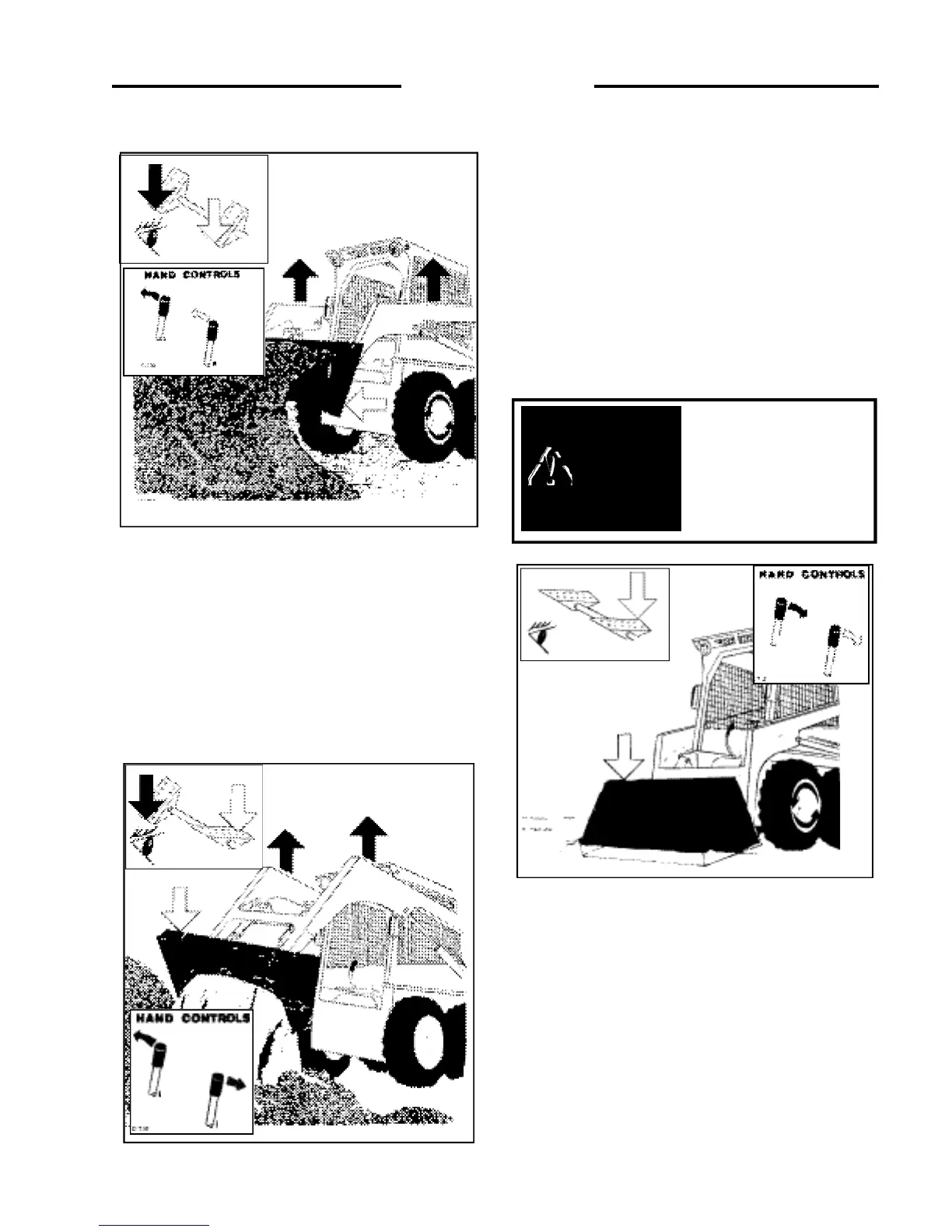

Fig. 3.3B
C - 711 Fig. 3. 4A
C-709
Fig. 3.3C
LH
RH
LH
RH
LH
RH
