35
4 MAINTENANCE
To fill the cooling system; close the drain valve. Fill the
radiator with a 50-50 mixture of ethylene glycol and water.
Fill to within .375 inches (10 mm) from the bottom of the
filler tube. Refit the radiator cap.

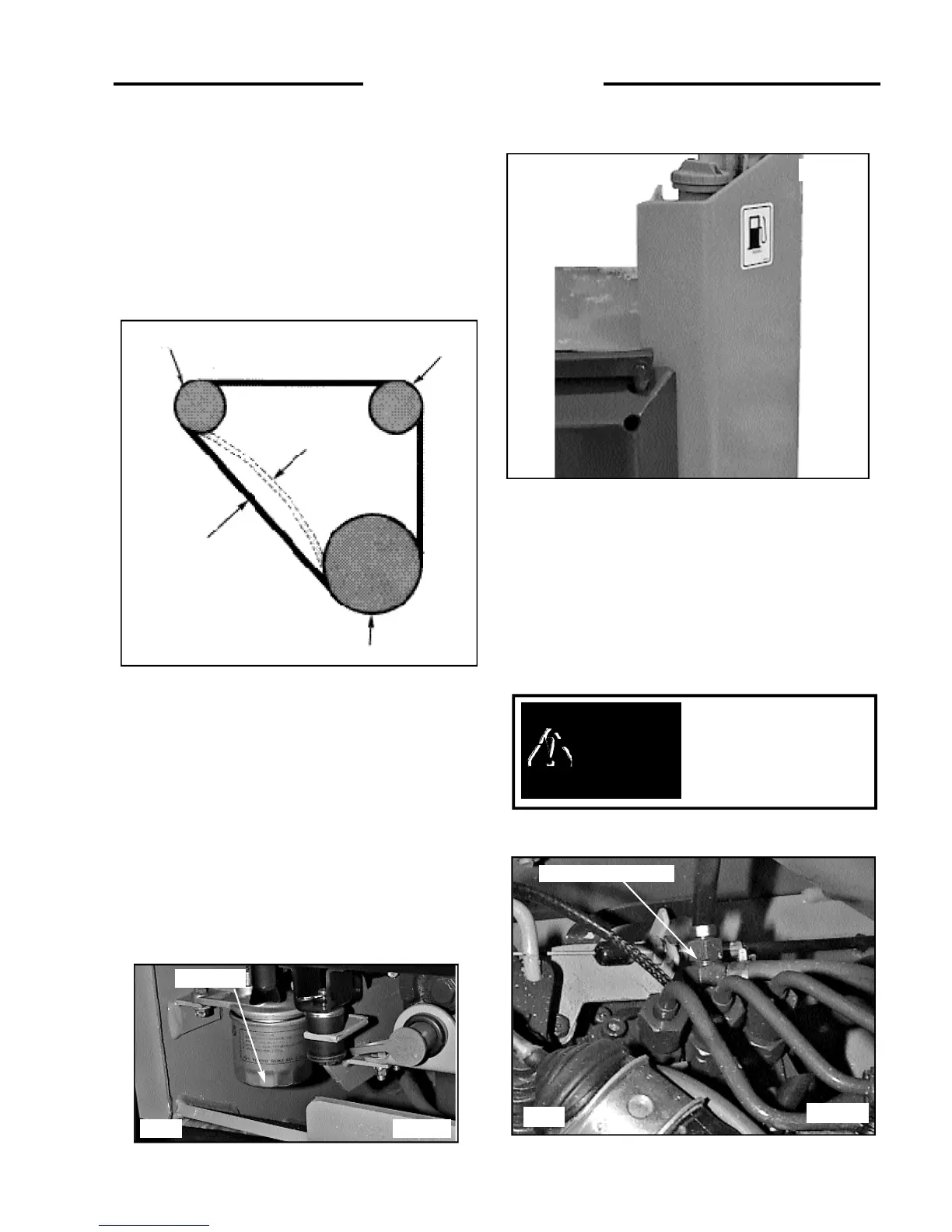

4. 7D Fan Belt Tension
Check and adjust the fan belt tension after the first 50
hours of operation. Adjust the tension as shown in Fig.
4.7D.
4. 7E Fuel Filter Replacement
The fuel filter is located in the engine compartment on the
left hand side (Fig. 4. 7E). The fuel filter should be
removed every 150 hours and any water or dirt found in
the element drained off. Change the filter every 400 hours.
To replace the filter, first close the fuel shut-off cock
located on the fuel tank. Remove the old filter element.
Lubricate the seal on the new filter element and install the
filter hand tight. Open the fuel shut - off cock on the fuel
tank.
It may be necessary to remove air from the fuel system
after changing the filter element. (Refer to Section 4. 7G).
4. 7F Adding Fuel
The loader is equipped with one fuel tank on the right hand
side of the loader at the rear (Fig. 4. 7F).
Before adding fuel to the loader, the key must be OFF and
the engine must be cool. Remove the fuel cap (Fig. 4. 7F).
Use a clean approved safety container to add fuel. Add fuel
only in an area that is well ventilated and away from open
flames or sparks – NO SMOKING.
Fill with No. 2 Diesel Fuel.
WARNING
To avoid personal injury
never add fuel to the
loader when the engine is
running or is hot. NO
SMOKING.
Alternator Pulley
Fan Pulley
Crankshaft Pulley
.25/.35 In. (7-9mm)
20 Lbs. (9 kg)
Fig. 4. 7G
C-945
INJECTION VENT SCREW
C-949 Fig. 4. 7F
Fuel Filter
C-950
Fig. 4. 7E
C3267
Fig. 4. 7D
