14 HA0363T Rev D Jan 2017
Chapter 3
3.2.3 Using the Baseplate

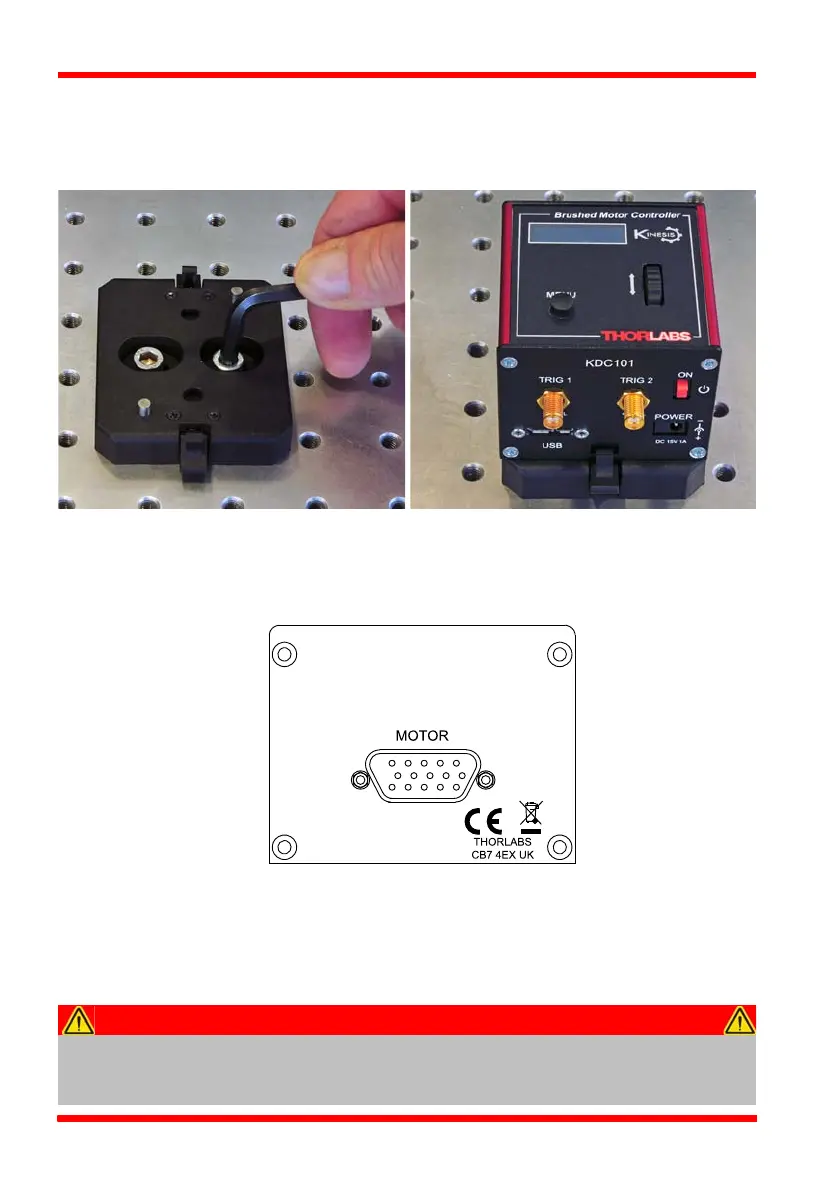

The baseplate must be bolted to the worksurface before the K-Cube is fitted, as
shown below. The K-cube is then located on two dowels in the baseplate and secured
by two clips.
Fig. 3.1 Using The Baseplate
3.3 Electrical Installation
3.3.1 Rear Panel
Fig. 3.2 Rear Panel Connections
The rear panel of the unit is fitted with a 15 pin D-type connector as shown above,
which is compatible with Thorlabs DC servo motor actuators (refer to Appendix A
for details of pin outs).
Caution
DO NOT connect a motor actuator while the K-Cube is powered up.
Only use motor drive cables supplied by Thorlabs, other cables may have
incompatible wiring.
