K-Cube Brushed DC Servo Motor Driver

5.9 Setting Move Sequences

This section explains how to set move sequences, allowing several positions to be

visited without user intervention.

For details on moving to absolute positions initiated by a mouse click – see Section 5.8.

1) From the Motor GUI Panel, select 'Move Sequencer' tab to display the Move

Sequencer window.

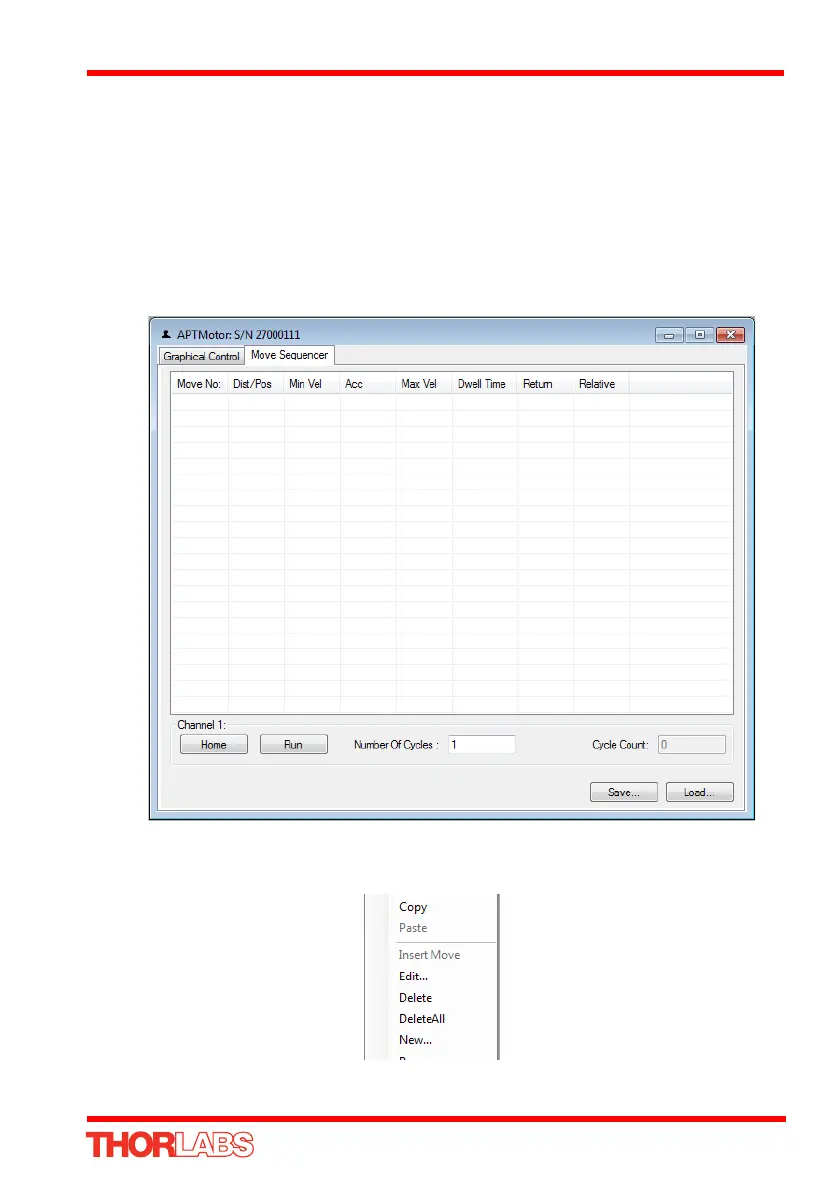

Fig. 5.9 Move Sequencer Window

2) Right click, in the move data field to display the pop up menu.

Fig. 5.10 Move Sequencer Pop Up Menu
