THUNDER TIGER MINI TITAN V2 - MANUAL 2 User Manual

-11-

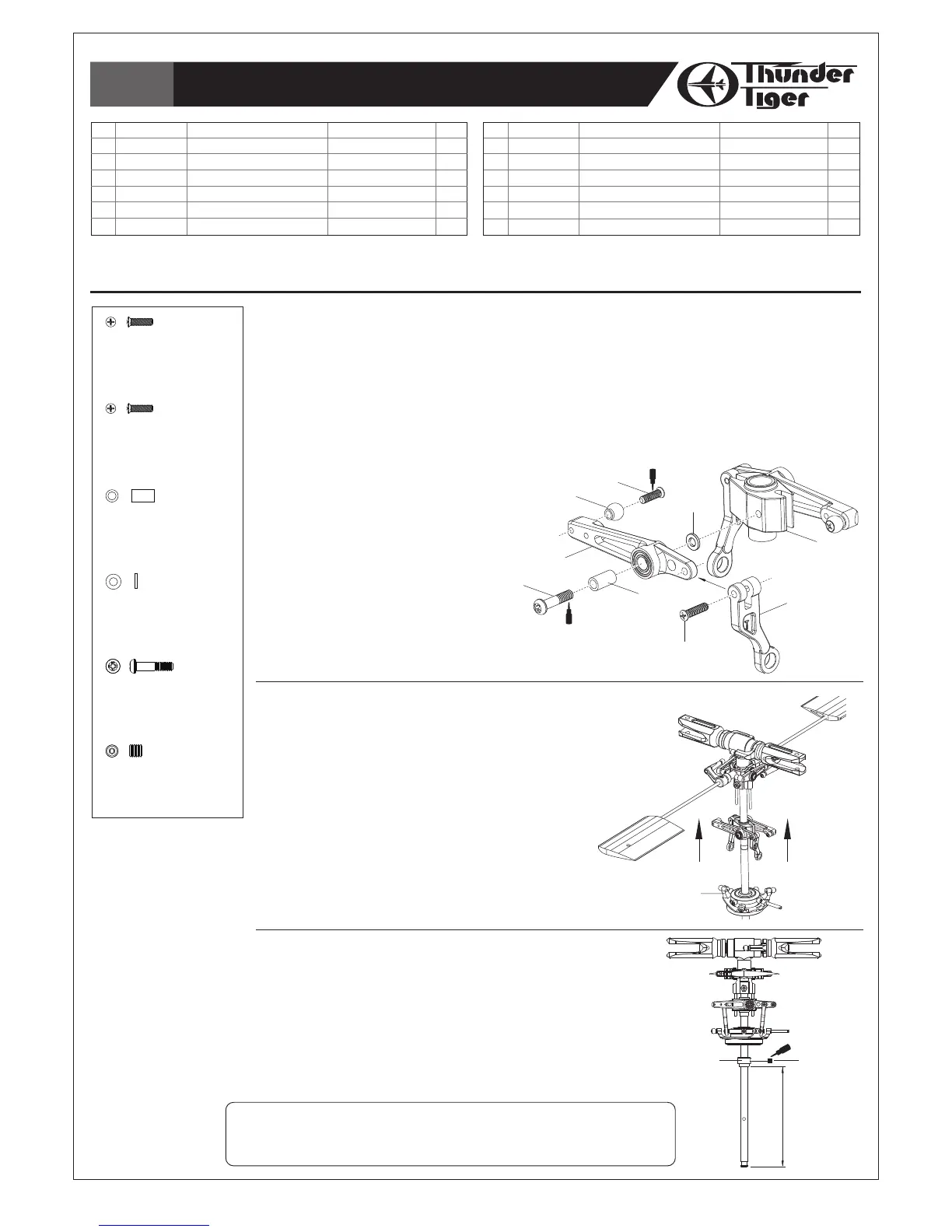

Main Rotor-6 / 主旋翼機構組裝 -6
Bag C
70mm
HSP17-7N
Countersunk Screw M1.7×7
圓頭十字螺絲 M1.7×7
HSP16-6N
Countersunk Screw M1.6×6
圓頭十字螺絲 M1.6×6
HNU2-9Z
SHOULDER SCREW M2x9
圓頭十字軸套螺絲 M2×9
BK1480
COLLAR, d2×D3×5.6t
軸環 d2×D3×5.6t
HME3-3B
Set Screw M3×3
無頭內六角螺絲 M3×3
BK1481
FLAT WASHER d2xD3.7x0.5t
墊片 d2xD3.7x0.5t
No.
1
2
3
4
5
6
Qty
2
2
2
2
2
2
Material No.
BV1406
BK1014
HSP17-7N
BK1480
HSP16-6N
BK1203
Description
M. FLYBAR C. LEVER
WASHOUT LINKAGE
COUNTERSUNK SCREW M1.7×7
COLLAR, d2×D3×5.6t
COUNTERSUNK SCREW M1.6×6
LINKAGE BALL(ø3.8)
名稱
金屬穩定翼控制臂組
連接座
圓頭十字螺絲 M1.7×7
軸環 d2×D3×5.6t
圓頭十字螺絲 M1.6×6
連接頭 (ø3.8)
No.
7
8
9
10
11
12
Qty
2
2
1
1
1
1
Material No.
BK1481
HNU2-9Z
BV1405
BV1419A
BK1020
HME3-3B
Description
FLAT WASHER d2xD3.7x0.5t
SHOULDER SCREW M2x9
METAL WASHOUT BASE SET
METAL Swashplate
MAIN SHAFT LOCK RING
SET SCREW M3×3
名稱
墊片 d2xD3.7x0.5t
圓頭十字軸套螺絲 M2×9
金屬控制臂座組
金屬十字盤
止擋圈
無頭內六角螺絲 M3×3
T22
T22
T22
(5)
(6)
(1)
(8)
(4)
(3)
(10)
(12)
(11)
(7)
(9)
(2)
Step 1 / 步驟一
1. Secure the Washout Linkage to the Metal Flybar Control Lever and ensure the Washout
Linkage runs effortlessly.
2. Secure the Linkage Balls to the Metal Flybar Control Lever. The inner hole on the lever is for
novice, and the outer hole is for 3D flying.
3. Secure the Metal Flybar Control Lever to the Washout Base.
4. Make sure the Metal Flybar Control Lever runs effortlessly.
1. 將連接座固定於金屬穩定桿控制臂上，需確認轉動順暢。
2. 將球頭鎖入穩定桿控制臂，內孔適合初學者，外孔則適合
3D特技飛行。
3. 將金屬穩定桿控制臂鎖上固定於控制臂座上。
4. 確認金屬穩定桿控制臂轉動順暢。
Step 2 / 步驟二
1. Slide the metal washout set into the Main Shaft,
and ensure the pins of the Metal Main Rotor Hub
go through the slots of the Metal Washout Base.
2. Slide the Metal Swashplate into the Main Shaft.
Attach the Washout Linkage to the inner linkage
balls of the Metal Swashplate.
1. 將控制臂組穿過主軸，並將主旋翼固定座插銷穿過控制
臂中心座。
2. 將十字盤穿過主軸，將控制臂座組連桿與十字盤內盤連
桿頭連接。
Step 3 / 步驟三
Slide the Main Shaft Lock Ring and fix by a Set Screw
with a drop of threadlocking.
將主軸固定套環穿過主軸並用螺絲固定。
The length from the end of the Min Shaft to the Lock Ring is 70mm.
固定套環安裝位置為距離主軸底部約70mm處（如圖示）。
Note / 注意
