-13-
Main Frame Assembly-1 /
本體組裝
-1
Bag E+F
HSA2-6
Button Head Socket Screw, M2x6
半圓頭內六角螺絲
HMY1-5
Pin ø1×5.3
插銷
ø1×5.3L
HMD2-6
Flat Head Phillips Screw, M2x6
平頭十字螺絲
M2x6
HNX2-10B
Socket Button Head Self Tapping Screw M2×10
半圓頭內六角自攻螺絲M2×10
No.
1
2
3
4
5
6
Qty
2
1
1
2
1
16
Material No.
BK1892
BV1882
BV1883
BK1878
BK1881
HSA2-6
Description
CARBON MAIN FRAME
UPPER BEARING SET
LOWER BEARING SET
FRONT SERVO TRAY
RARE SERVO TRAY
BUTTON HEAD SOCKET SCREW, M2X6
名稱
碳纖側板
上軸承座組
下軸承座組
前伺服機座
後伺服機座
半圓頭內六角螺絲
No.
7
8
9
10
11
12
Qty
1
1
1
1
1
4
Material No.
BV2609
BV1412
BK1445
HMY1-5
HMD2-6
HNX2-10B
Description
TAIL BEARING FLANGE SET
METAL PULLEY SET (14T)
TAIL GEAR 28T
PIN ø1×5.3
FLAT HEAD PHILLIPS SCREW, M2X6
Socket Button Head Self Tapping Screw M2×10
名稱
尾傳動齒軸承座組
金屬皮帶輪組
(14T)
金屬尾驅動齒
28T
插銷
ø1×5.3L
平頭十字螺絲
M2x6
半圓頭內六角自攻螺絲M2×10
(6)
(5)

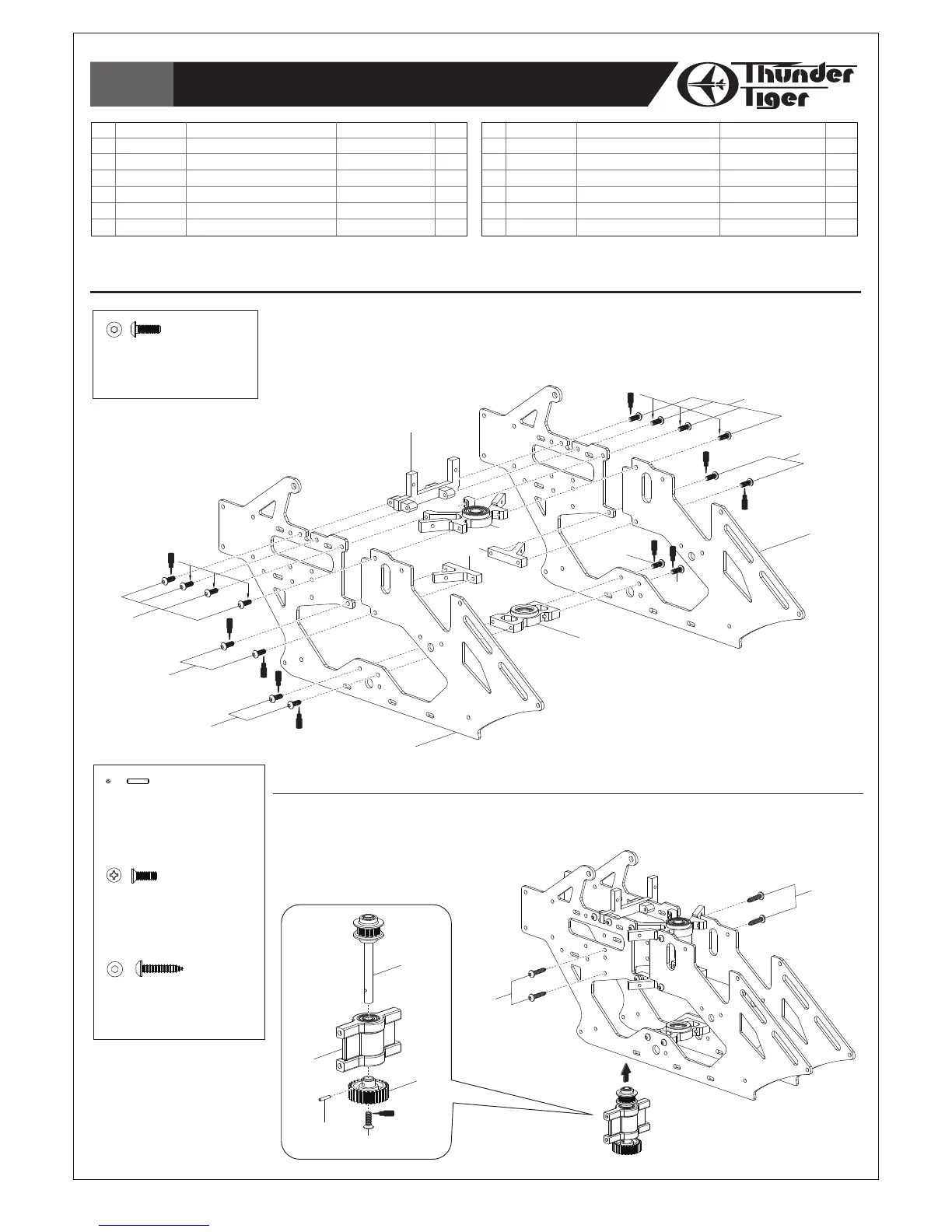

Step 1 / 步驟一
Assemble the left main frame as drawing. Secure the screws with a drop of
threadlocking but not over tighten.
參考圖示組裝左側板。使用適量防鬆劑固定，但請勿過度鎖緊。
Step 2 / 步驟二
1. Assemble the tail drive gear set as drawing.
2. Secure the tail drive gear set to the main frame set.
1. 參考圖示組裝尾傳動齒輪組。
2. 將尾傳動齒輪組組裝至側板組上。
(2)
(3)
(6)
(1)
(6)
(6)
(6)
(6)
(4)
(6)
(1)
(11)
(10)
(12)
(9)
(7)
(8)
(12)
T22
T22
T22
To Next Page
