-6-
Main Rotor-1 /
主旋翼機構組裝
-1
Bag A
No.
1
2
Qty
1
1
Material No.
BK2615
BV1403
Description
MATEL MAIN ROTOR HUB SET
METAL SEESAW HUB
HNU2-6Z
SHOULDER SCREW M2x6
圓頭十字軸套螺絲M2×6
BK1456
COLLAR, d2×D3×2.7t
軸環, d2×D3×2.7t
名稱
金屬主旋翼固定座組
金屬穩定桿固定座組
No.
3
4
Qty
2
2
Material No.
BK1456
HNU2-6Z
Description
COLLAR, d2×D3×2.7t
SHOULDER SCREW M2x6
名稱
軸環, d2×D3×2.7t
圓頭十字軸套螺絲M2×6

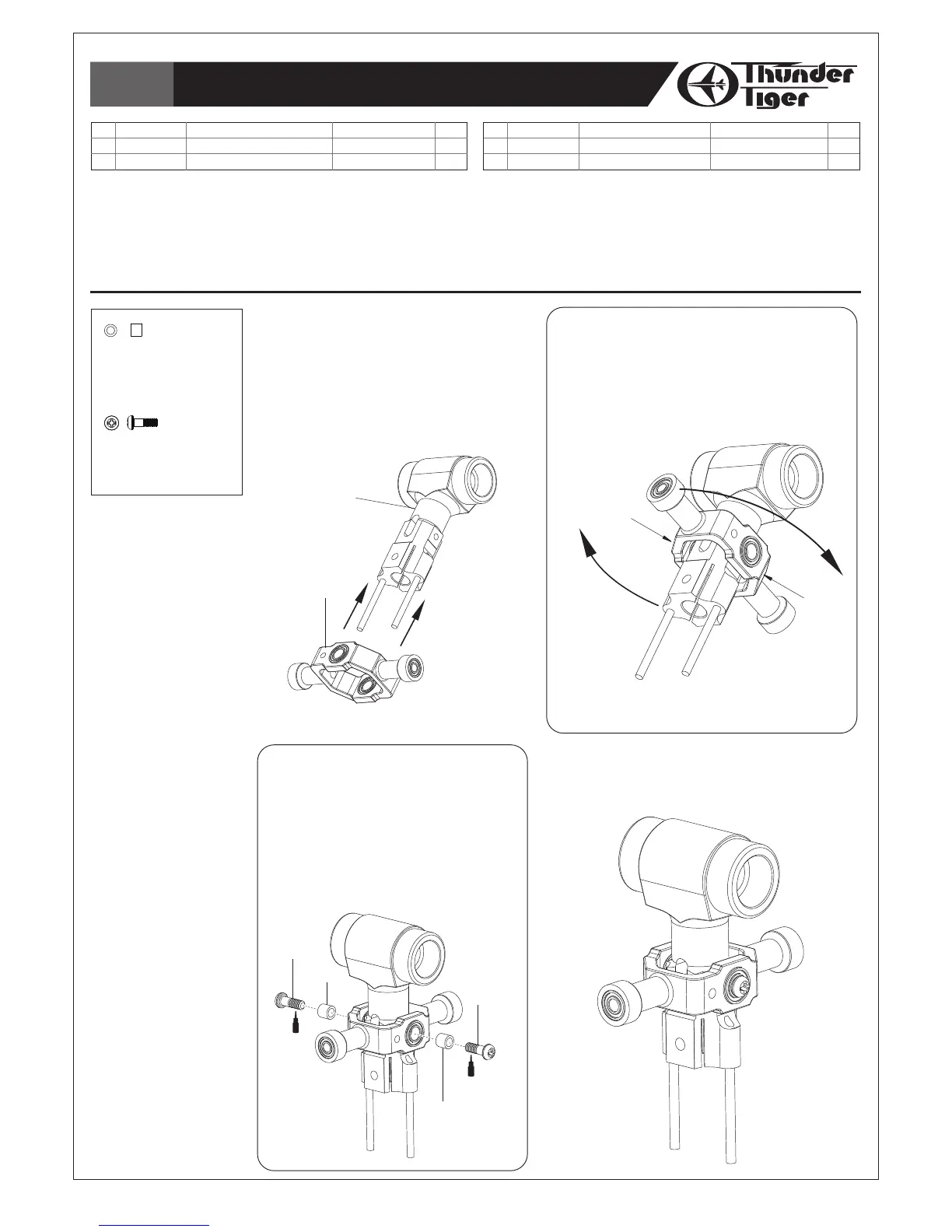

Step 1 / 步驟一
1. Slide the Metal Seesaw Hub into the Main
Rotor Hub.
2. Note the orientation of the Metal Seesaw
Hub.
1. 將主旋翼固定座穿過穩定桿固定座。
2. 注意穩定桿固定座安裝方向。
Step 2 / 步驟二
1. Rotate the Metal Seesaw Hub toward for
90 degree.
2. Note the orientation of the Chamfer on the
Metal Seesaw Hub.
1. 90度旋轉穩定桿固定座。
2. 注意金屬穩定固定座倒角方向。
(1)
(2)
(4)
(4)
(3)
(3)
Step 3 / 步驟三
Fit the Collar into the bearings, tighten
the screws and ensure the Metal
Seesaw Hub runs effortlessly.
如圖示，鎖緊固定螺絲，並確認穩定桿固
定座能自由活動。
Completed View
組裝完成
T22
T22
chamfer / 倒角
chamfer
倒角
To Next Page
