-17-
Tail Unit Assembly-1 /
尾管組裝
-1
Bag I
HMD2-5B
Flat Head Phillips Screw, M2x5
平頭十字螺絲
M2x5
HSA2-6
Button Head Socket Screw, M2x6
半圓頭內六角螺絲
M2x6
T22
No.
1
2
3
4
5
Qty
1
1
1
1
1
Material No.
BK1073
BK1004-1
BK1872
BV1873
BV1874
Description
BELT MXL-3T（413T）
TAIL BOOM 356MMXø14
METAL TAIL UNIT
METAL TAIL SIDE COVER- R
METAL TAIL SIDE COVER- L
名稱
皮帶
MXL-3t（413T）
尾管
356mmxø14
金屬尾座
金屬尾座側蓋組
-
右
金屬尾座側蓋組
-
左
No.
6
7
8
9
Qty
1
1
6
1
Material No.
BK1875
BV0973A
HMD2-5B
HSA2-6
Description
TAIL UNIT SPACER
MATEL TAIL ROTOR SHAFT SET
FLAT HEAD PHILLIPS SCREW, M2X5
BUTTON HEAD SOCKET SCREW, M2X6
名稱
尾座支柱
尾旋翼軸組
平頭十字螺絲
M2x5
半圓頭內六角螺絲
M2x6
(2)
(8)

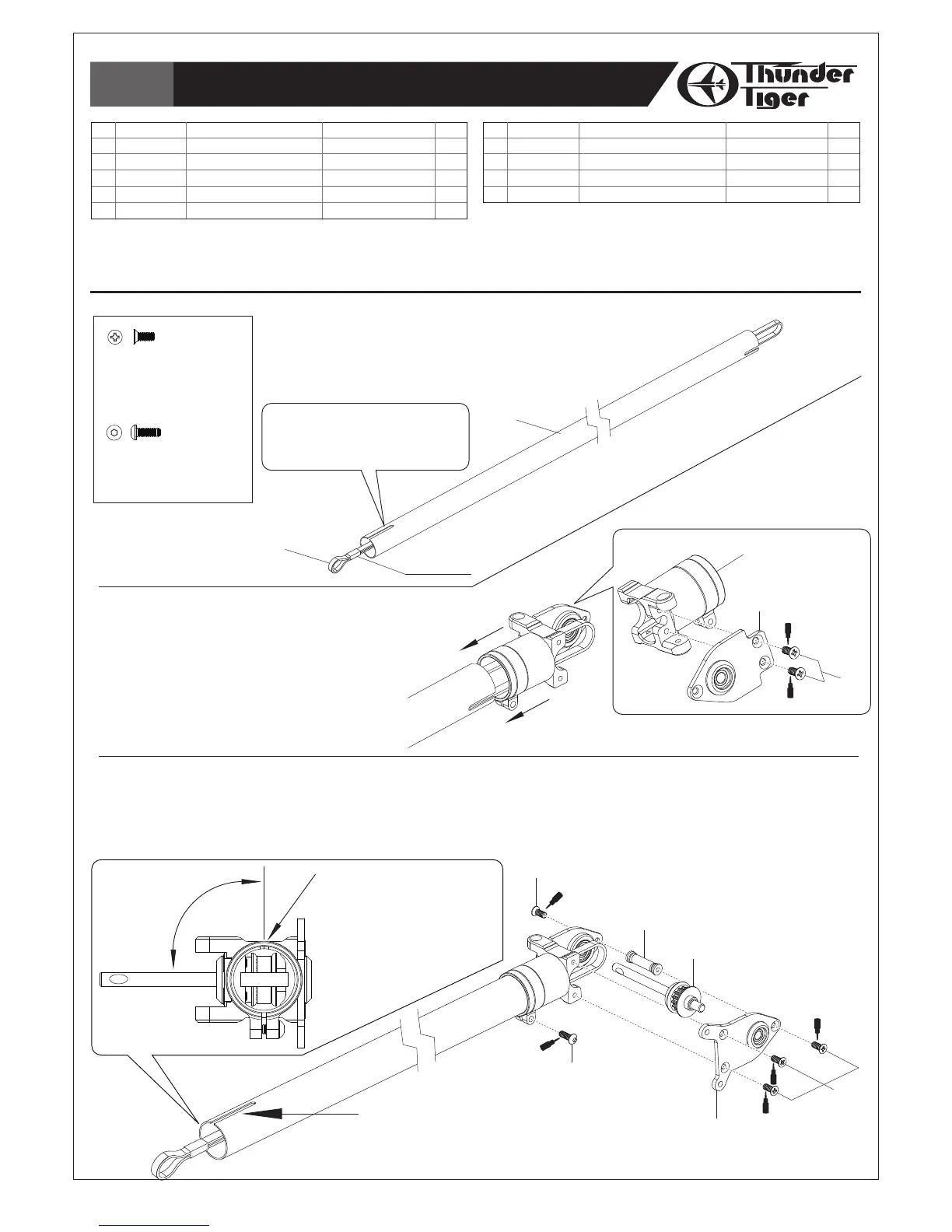

Step 1 / 步驟一
Insert the Belt into the Tail Boom. First tape the belt & insert
the end of the belt as shown, and not twist the belt.
將皮帶穿過尾管。用膠帶將皮帶尾端貼合可使皮帶較容易穿過尾管；
並請勿扭轉皮帶。
Step 2 / 步驟二
1. Attach the Metal Tail Side Cover- R to Metal Tail Unit
as drawing.
2. Slide the Metal Tail Unit onto the Tail Boom.
1. 參考圖示將金屬尾座側蓋（右）安裝至金屬尾座上。
2. 將金屬尾座套入尾管。
Step 3 / 步驟三
1. Assemble the Tail Unit as drawing, as well as warp the belt around the Tail Pulley.
2. Secure the Tail Unit to the Tail Boom tightly with a drop of Locitite.
1. 依圖示完成尾部組裝，同時將皮帶繞過皮帶輪。
2. 使用適量防鬆膠將尾部鎖緊在尾管上。
90°
The slot should be at upper side
缺口朝上
(1)
(4)
(3)
(8)
(6)
(9)
(7)
(8)
(5)
The slot is toward upper side.
尾管上缺口朝上
Tape / 膠帶
Note / 注意
Note / 注意
The slot o n the boom is
right angle to the Metal
Tail Rotor Shaft. (View
from nose to tail)
請注意，尾管上缺口應與尾
旋翼軸呈直角狀態。
（由機首向機尾
方向看）
T22
T22
T22
T22
