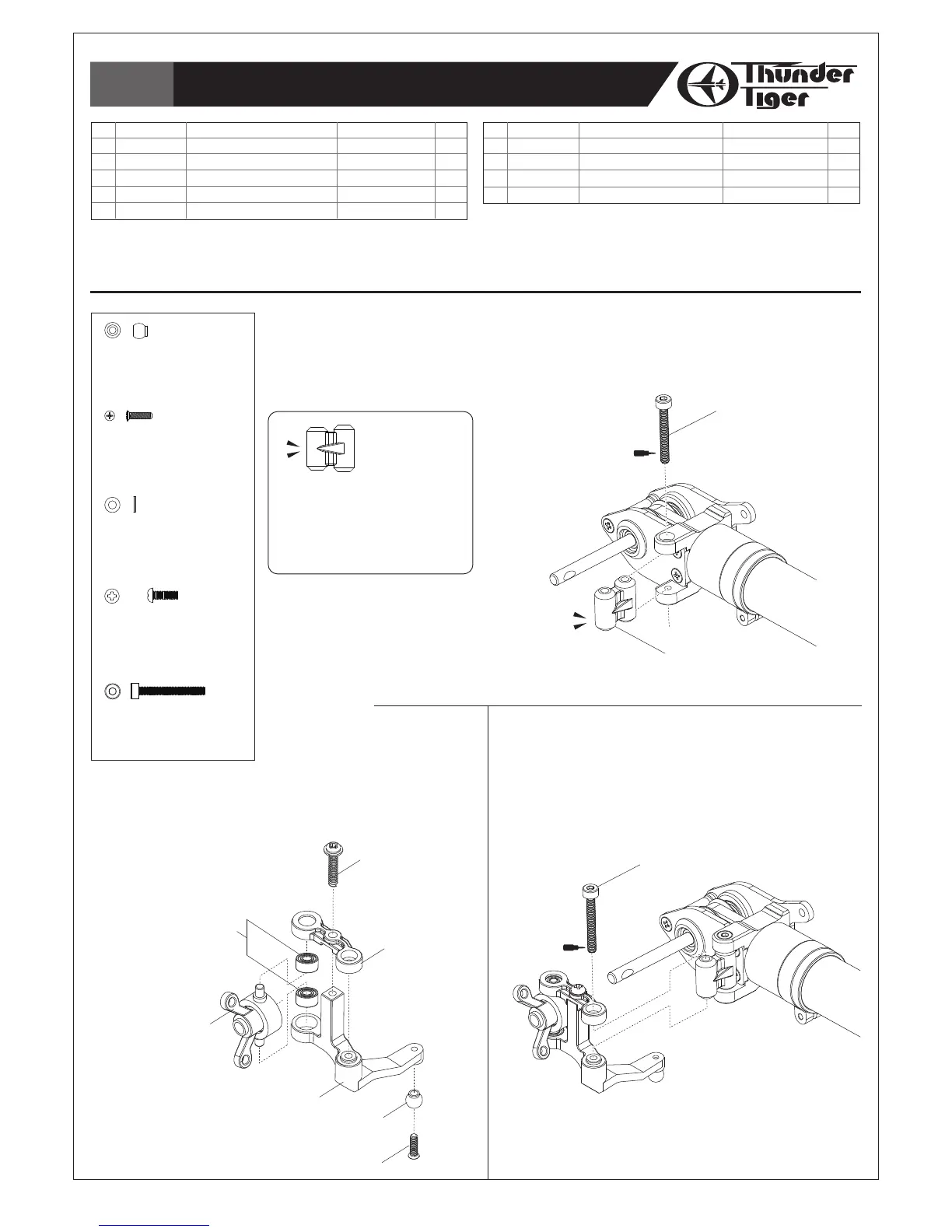

-18-
Tail Unit Assembly-2 /
尾管組裝
-2
Bag J
HMC2-16B
Socket Screw M2×16
內六角螺絲
M2×16
BK1481
FLAT WASHER d2xD3.7x0.5t
墊片
d2xD3.7x0.5t
HSP16-6N
COUNTERSUNK SCREW M1.6×6
圓頭十字螺絲
M1.6×6
BK1203
LINKAGE BALL(ø3.8)
連接頭
(ø3.8)
HMF2-6N
Countersunk Screw M2×6
圓頭十字螺絲
M2×6
No.
1
2
3
4
5
Qty
1
1
1
1
2
Material No.
BK0990
BK0991
BK1203
HSP16-6N
HMV520ZZY
Description
TAIL PITH CONTROL LEVER-1
TAIL PITH CONTROL LEVER-2
LINKAGE BALL(ø3.8)
COUNTERSUNK SCREW M1.6×6
BALL BEARING, d2xD5xW2.5
名稱
尾旋翼控制桿
-1
尾旋翼控制桿
-2
連接頭
(ø3.8)
圓頭十字螺絲
M1.6×6
滾珠軸承
d2xD5xW2.5
No.
6
7
8
9
Qty
1
1
1
2
Material No.
HNN2-10B
BV1421A
BK1091
HMC2-16B
Description
TAPPING SCREW(WASHER)
M. TAIL PITH CONTROL SET
DOUBLE JOINT LEVER
SOCKET SCREW M2×16
名稱
墊圈自攻螺絲
M2×10
金屬尾旋翼攻角控制組
雙關連接桿
內六角螺絲
M2×16
(9)
(8)
(9)
Step 1 / 步驟一
1. Secure the Double Joint Lever to Tail Unit as drawing.
2. Do not over tighten the Socket Screw, ensure the lever rotate effortlessly.
1. 將雙關節連接桿安裝至尾管座。
2. 固定螺絲請勿過度鎖緊，確認機構能靈活作動。
Step 2 / 步驟二
1. Secure the Linkage Ball to the Tail Pitch Control Lever-1.
2. Assemble the Tail Pitch Control Lever and the Tail Pitch
Control Set as drawing.
1. 將球頭固定於金屬尾旋翼控制臂上。
2. 如圖示，組裝金屬尾旋翼控制臂組。
Step 3 / 步驟三
Do not over tighten the Socket Screw,
ensure the lever runs effortlessly.
請勿過度鎖緊固定螺絲，確認機構作動順暢。
T22
T22
Note the orientation of the
triangle mark on the Double
Joint Lever.
請注意雙關連接桿上三角形凸
標的方向。
(7)
(1)
(6)
(2)
(3)
(4)
(5)
To Next Page
