-19-

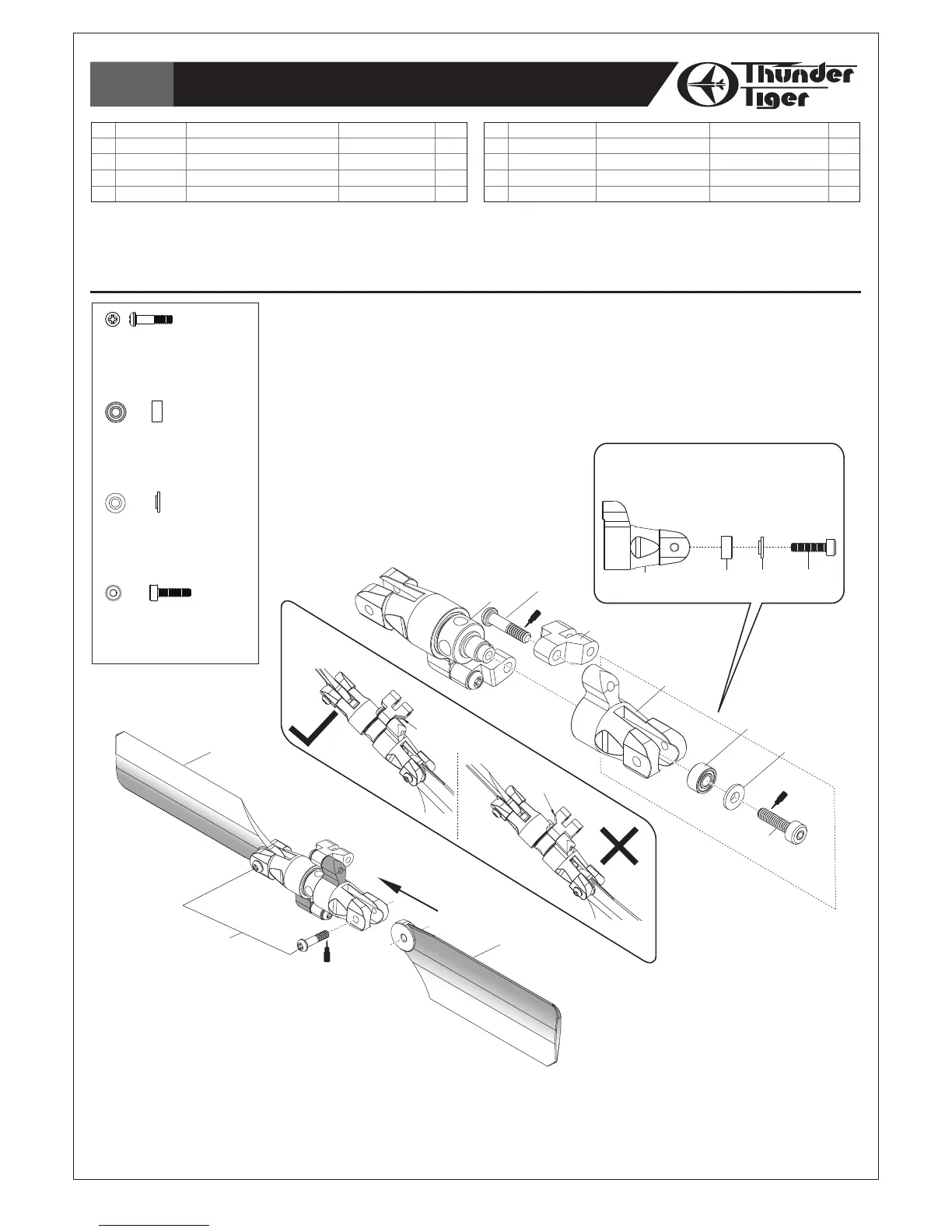

Tail Unit Assembly-3 /
尾管組裝
-3
Bag K
HNU2-9Z
SHOULDERED SCREW M2×9
圓頭十字軸套螺絲
M2×9
HMC2-8B
SOCKET SCREW M2×8
內六角螺絲
M2×8
BK1080
SAFTY WASHER
墊圈
HMV520ZZWY
BEARING D2×D5×2.5
滾珠軸承
d2×D5×2.5
No.
1
2
3
4
Qty
2
2
4
1
Material No.
BV1411
BK1000
HNU2-9Z
BK0972
Description
METAL TAIL PITCH HOUSING
TAIL PITCH LINK
SHOULDERED SCREW M2×9
TAIL ROTOR HUB
名稱
金屬尾旋翼轉座組
尾旋翼連接頭
圓頭十字軸套螺絲
M2×9
尾旋翼固定座
No.
5
6
7
8
Qty
2
2
2
2
Material No.
HMV520ZZWY
BK1080
HMC2-8B
BK0961
Description
BEARING D2×D5×2.5
SAFTY WASHER
SOCKET SCREW M2×8
TAIL ROTOR BLADE
名稱
滾珠軸承
d2×D5×2.5
墊圈
內六角螺絲
M2×8
尾旋翼
(3)
(2)
(1)
(5)
(6)
(7)
(8)
(8)
(3)
(4)
(1) (5) (6) (7)
Step 1 / 步驟一
1. Secure the Metal Tail Pitch Control Link to the Metal Tail Pitch Housing but do not over
tighten. Note the orientation of the Chamfer on the link.
2. Attach the Metal Tail Pitch Housing into the Tail Rotor Hub by the Socket Screws with a
drop of threadlocking. Note the orientation of the Safety Washer.
1. 如圖示，組裝金屬尾舵控制臂、夾片組，需注意連接座安裝方向性，請勿過度鎖緊固定螺絲，確認
機構可以靈活作動。
2. 組合金屬尾舵控制臂與金屬夾片組，需使用防鬆膠，並注意墊片的安裝方向。
Note / 注意
The orientation of the Satefy Washer
注意墊片安裝方向
Step 2 / 步驟二
1. Attach the Tail Rotor Blades to the Metal Tail Pitch Housing as drawing. Ensure the leading edges of the blades are
toward proper side as shown.
2. Secure with a drop of threadlocking but do not over tighten the screws.
1. 參考圖示將尾旋翼安裝於金屬尾旋翼夾座。請確認旋翼前橼朝向正確方向(如圖示)。
2. 使用適量防鬆劑固定螺絲，但請勿過度鎖緊。
chamfer
倒角
chamfer
倒角
T22
T22
T22
Note
注意
To Next Page
