SERVO CONNECTING / 伺服機連結
E-CCPM system requires 3 channel for aileron, elevator and an AUX(for pitch). But people may get
confused because the 3 channels are not referred to any independent movement. They are operated
together to carry out the rolling, flipping and collective controlling. As a result, the following connecting
manner is recommended.
1. The rear servo located in back of the swashplate MUST be plugged into the elevator channel.
2. Suppose the servo in the right side is plugged into the aileron channel.
3. The left servo is plugged into the AUX channel.

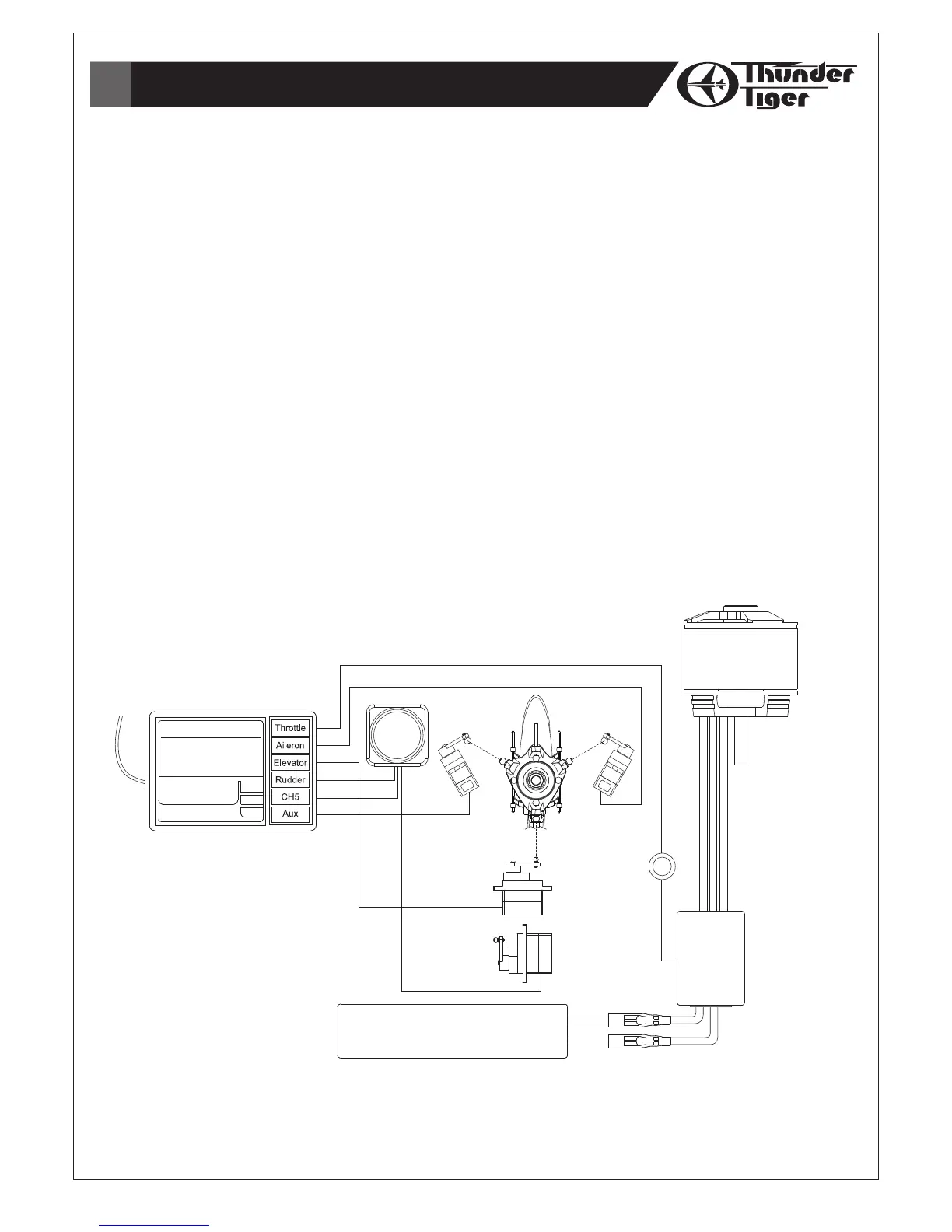

The following chart is the E-CCPM connecting for your reference. Please also consult your radio
instruction manual.
E-CCPM系統需要使用三個通路予副翼、升降舵、與螺距（使用AUX通道）。許多愛好者可能會對於此設定感到困
惑，但是在混控模式下，必須藉由三顆伺服機同時完成動作，因此建議依照下列說明完成伺服機與接收機連結。
1. 十字盤後方伺服機與接收機ELEVATOR通道連接。
2. 右側伺服機與接收機AILERON通道連接。
3. 左側伺服機與接收機AUX通道連接。
下列圖示為安裝範例，實際接線方式，請參照您的遙控器使用說明書。
Receiver / 接收機
Left Servo
左側伺服機
Left Servo
右側伺服機
Brushless Motor
無刷馬達
Elevator Servo
升降舵伺服機
Magnet Ring
防磁環
Li-Po Battery
鋰聚電池組
Rudder Servo
尾舵伺服機
Speed
Controller
速控器
Gyro / 陀螺儀
