-12-

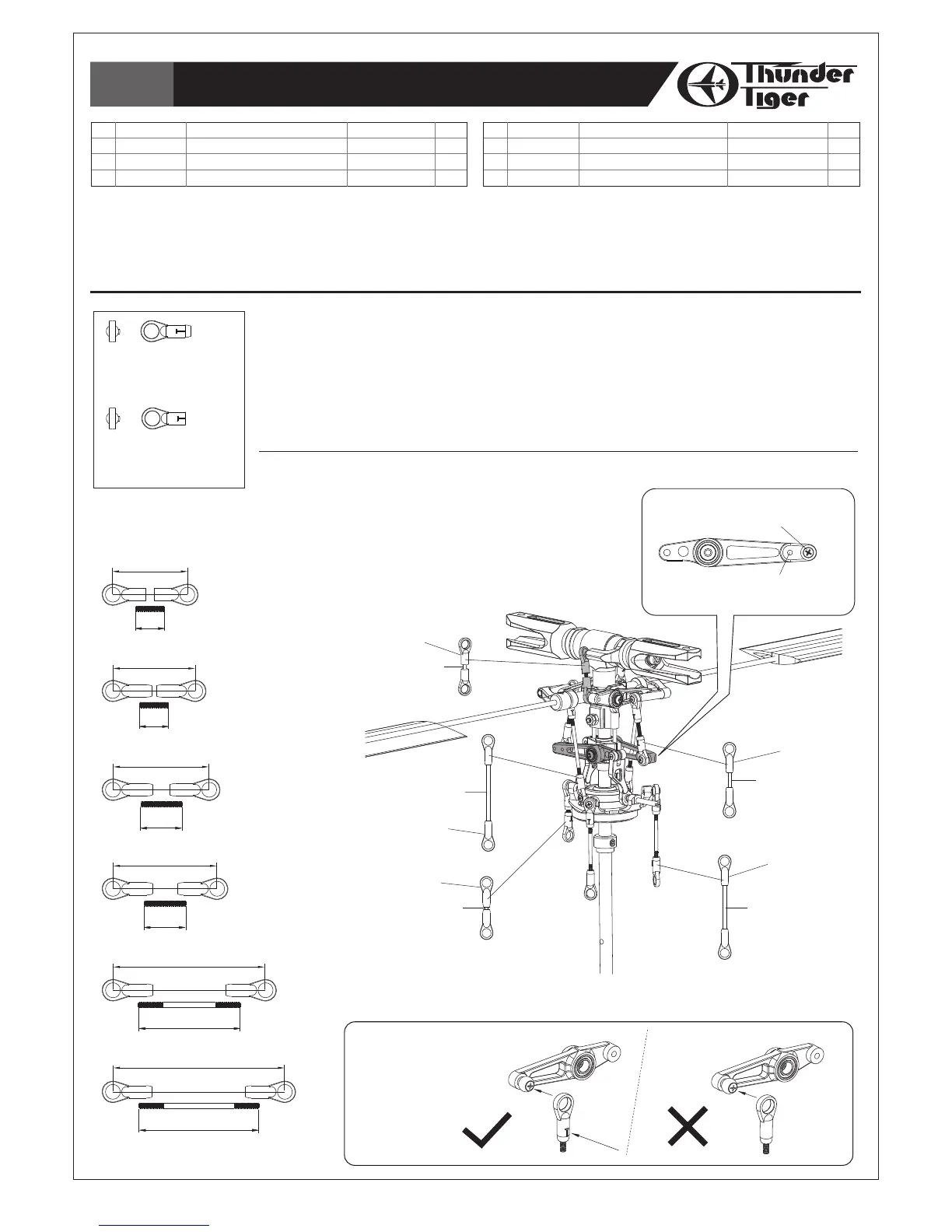

Linkage Rod Installation /
連桿組裝
Bag D
No.
1
2
3
Qty
4
3
14
Material No.
BK0932
BK1063
BK0922
Description
BALL LINK d3.8x10mm
LINKAGE ROD D1.3x7mm
BALL LINK d3.8x12mm
名稱
單頭連接桿
連接桿
單頭連接桿
No.
4
5
6
Qty
2
2
2
Material No.
BK1064
BK1066
BK1065
Description
LINKAGE ROD 1.3X10mm
LINKAGE ROD 1.3x24.5mm
LINKAGE ROD 1.3x29mm
名稱
連接桿
連接桿
連接桿
(1)
(2)
(6)
(E)
(B)
(E)
(D)
(C)
(3)
(3)
(4)
(5)
(3)
(3)
(2)
(A)
18
7
7
10
24.5
29
X2
(D)
X2
(C)
X2
For 3D flying
3D飛行設定
For 3D flying
3D飛行設定
For novice
初學者設定
For novice
初學者設定
(A)
X2
Scale=1:1
(unit:mm)
(B)
X1
36.5
41.5
20
23
10
(C)
X2
25
Note / 注意
T mark on the Ball
Link goes toward
outside.
球頭上T字凸起向外
Step 1 / 步驟一
Assemble the Linkage Rods as drawings. The linkage length is measured by the center of the
2 Ball Links. These drawings are printed actual size; you can lay the linkage sets on the left
drawings to measure the correct length.
請參考圖示組裝連桿及連桿頭。連桿長度距離的計算應以兩端連桿頭中心點為基準。圖示尺寸與實物相
同，您可直接對照左方圖示以快速獲得正確長度。
Step 2 / 步驟二
Attach the linkage sets on the main rotor head set.
Please refer below drawing.
參考下圖正確連接連桿組及主旋翼組。
BK0922
Ball Link d3.8x12mm
單頭連接桿
BK0932
Ball Link d3.8x10mm
單頭連接桿
To Next Page
