-21-
Tail Boom Bracket Set-1 /
尾管固定座組裝
-1
Bag M
HMJ12-6B
TAPPING SCREW M1.2×6
圓頭十字自攻螺絲
M1.2×6
HNN2-10B
TAPPING SCREW(W/WASHER) M2×10
圓頭墊圈自攻螺絲
M2×10
Note / 注意
No.
1
2
3
Qty
2
2
2
Material No.
BK1082
HMJ12-6B
BK0923
Description
ROD GUIDE
TAPPING SCREW M1.2×6
TAIL SERVO TRAY
名稱
固定環
圓頭十字自攻螺絲
M1.2×6
尾伺服機座
No.
4
5
6
Qty
2
1
2
Material No.
HNN2-10B
BK2610
BK1886
Description
TAPPING SCREW(W/WASHER) M2×10
TAIL BOOM BRACKET
BRACKET SPACER
名稱
圓頭墊圈自攻螺絲
M2×10
尾管固定座
固定座支柱
(4)

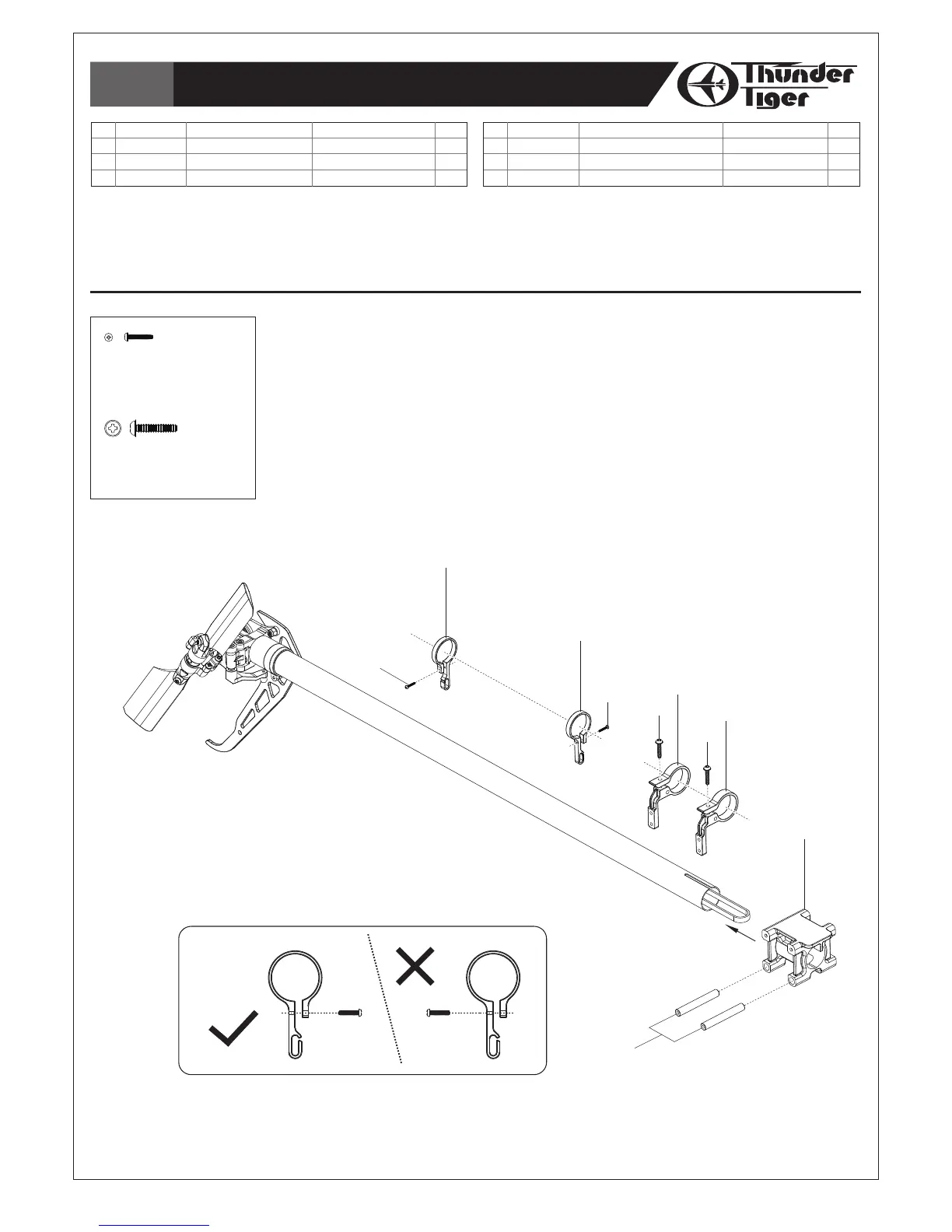

1. Slide the Rod Guides and the Tail Servo Tray onto the Tail Boom.
2. Secure the Self-tapping Screws but do not tighten at this step, the position of these guides
& servo tray may be adjusted later.
3. Insert the Bracket Spacers into the Tail Boom Bracket.
1. 將固定環與尾伺服機座跨入尾管。
2. 使用自攻螺絲稍事固定，以便後續調整。
3. 將固定座支柱穿入尾管固定座中。
(4)
(6)
(2)
(2)
(1)
(3)
(3)
(5)
(1)
