-23-
Electric System-1 /
電子系統
-1
Bag N
HSA3-5B
SOCKET SCREW M3×5
半圓頭內六角螺絲
M3×5
HME3-3B
SET SCREW M3×3
無頭內六角螺絲
M3×3
HSA2-6
BUTTON HEAD SOCKET SCREW M2X6
半圓頭內六角螺絲
M2x6
T22
T22
T22
No.
1
2
3
Qty
1
2
1
Material No.
BK1890
HSA3-5B
HME3-3B
Description
MOTOR MOUNT
SOCKET SCREW M3×5
SET SCREW M3×3
名稱
馬達座
半圓頭內六角螺絲
M3×5
無頭內六角螺絲
M3×3
No.
4
5
Qty
1
4
Material No.
BK1009
HSA2-6
Description
DRIVE GEAR 13T
BUTTON HEAD SOCKET SCREW M2X6
名稱
驅動齒輪
13T
半圓頭內六角螺絲
M2x6
(3)
(5)
(5)
(2)
(2)
(1)
(4)

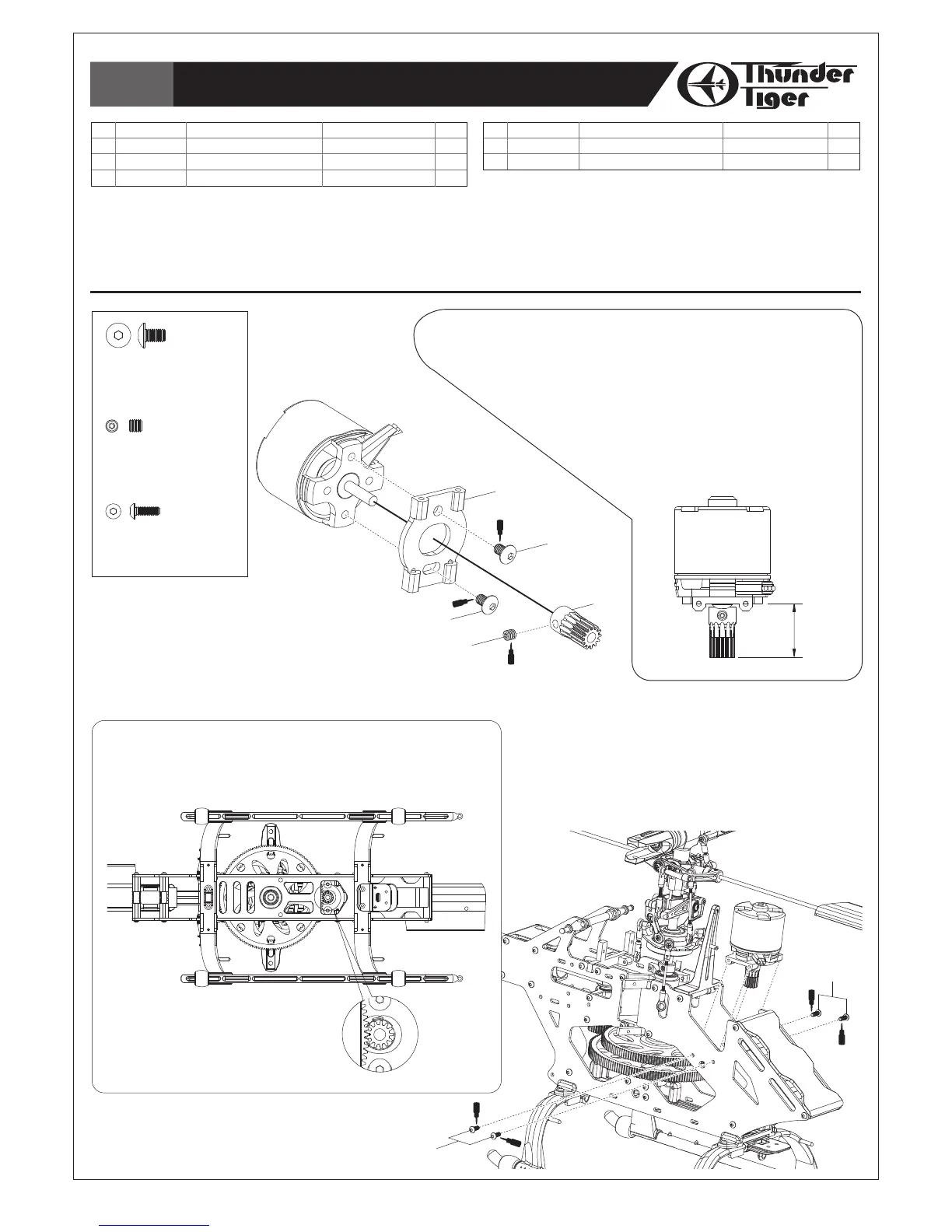

Step 1 / 步驟一
1. Mount the motor to the Motor Mount.
2. Secure the Drive Gear to the motor shaft tightly
with a drop of threadlocking.
1. 將馬達固定於馬達固定片上。
2. 使用適量防鬆劑將驅動齒論固定於馬達主軸上。
Step 2 / 步驟二
1. Install the Motor Mount into the main frame.
2.
Adjust the mesh between the Main Gear and Drive Gear
until there is a small amount of backlash all the way.
1. 將組裝好的馬達座固定於機身。
2. 調整好齒輪間隙之後，確實固定馬達座。
T22
T22
T22
16mm
Note 2 / 注意 2
You can observe the gear mesh from the bottom
of Bottom Bracket.
您可從機體底部檢視齒輪間隙。
Note 1 / 注意 1
1.
The length from the end of Drive Gear to Motor Mount is 16mm.
2. Please select the Drive Gear based on your motor & battery.
The OBL 29/37-10H (No. 2382) Brushless Motor and 13T
pinion are recommended for mini Titan V2 with ACE
Power 3S1P Li-Po battery.
1. 驅動齒輪末端至馬達座距離為16mm。
2. 請依馬達及電池種類搭配驅動齒輪。使用ACE
RC OBL 29/37-10H無刷馬達，建議搭配
13T驅動齒輪及3S1P鋰聚電池組。
