-30-
MOVEMENT OF 120°E-CCPM SYSTEM / E-CCPM 120°說明
AILERON

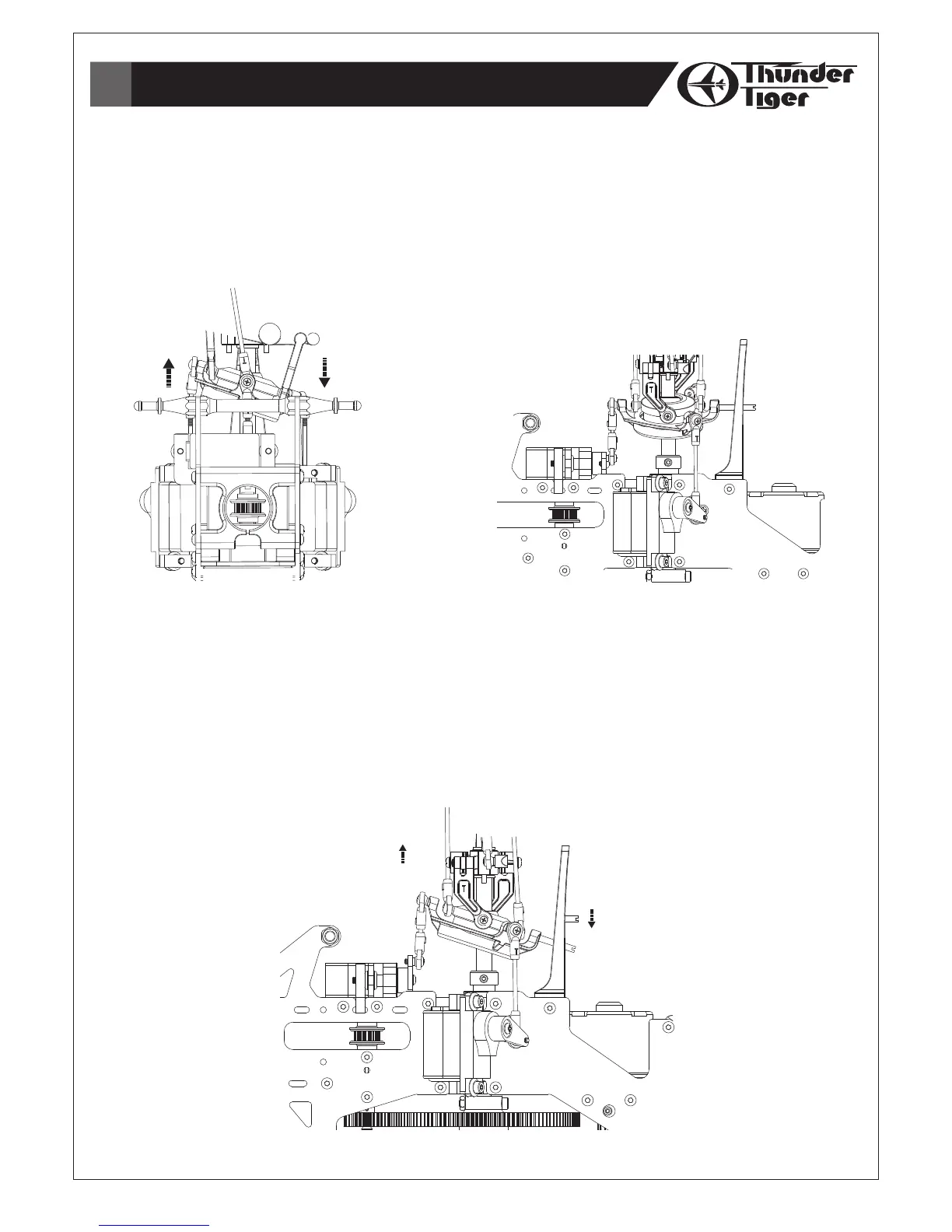

Aileron is controlled by the 2 servos in the front. When an aileron command is given, one servo will pull the
swashplate downward and the other will push the swashplate upward so that the roll command is executed.
They move contrary with same speed and travel distance, and the third servo in the back remains still at this
moment.
副翼
副翼由前方兩顆伺服機控制。副翼執行動作時，一顆伺服機上推十字盤、另一顆下拉十字盤，完成動作，此時另一顆
伺服機保持中立點。
（Right View /
右側圖）
（Rear View /
後視圖）
（Right View /
右側圖）
ELEVATOR
The elevator is controlled by all of the 3 servos. When an elevator command is given, the 2 servos in the front
move in the same direction and the third one move contrary. For example, when a down elevator command
is given, the 2 front servos pull the swashplate downward and the third one push the swashplate upward so
that the down elevator command is executed. The 3 servos pull/push the swashplate at the same time to
accomplish the given command.
升降舵
升降舵由三顆伺服機同步控制，執行升降舵指令時，前方兩顆伺服機，將會配合第三顆伺服機進行連動。因此三顆伺
服機在推、拉十字盤時將會以相同的速度與行程量同時進行完成動作。例如執行降舵時，前方兩顆伺服機拉下十字
盤，第三顆上推十字盤完成動作。
