-16-
Main Frame Assembly-4 /
本體組裝
-4
Bag G
HNX2-6B
Button Head Socket Screw, M2x6
半圓頭內六角自攻螺絲M2×6
HMC2-14B
Socket Screw M2×14
內六角螺絲
M2×14
HML2
M2 Nut
M2
螺帽
HME3-3B
Set Screw M3×3
無頭內六角螺絲
M3×3
No.
1
2
3
4
5
Qty
1
1
1
8
4
Material No.
BK2602
BK2603
BK1473
HNX2-6B
BK1038
Description
ANTENNA HOLDER
CANOPY CLIP
LANDING SKID (BLACK)
Button Head Socket Screw, M2x6
LANDING SKID DAMPER
名稱
天線管座
機殼固定夾
腳架
（
黑
）
半圓頭內六角自攻螺絲M2×6
腳架墊圈
No.
6
7
8
9
Qty
1
1
1
1
Material No.
BK1020
HME3-3B
HMC2-14B
HML2
Description
MAIN SHAFT LOCK RING
SET SCREW M3×3
SOCKET SCREW M2×14
M2 NUT
名稱
止擋圈
無頭內六角螺絲
M3×3
內六角螺絲
M2×14
M2
螺帽

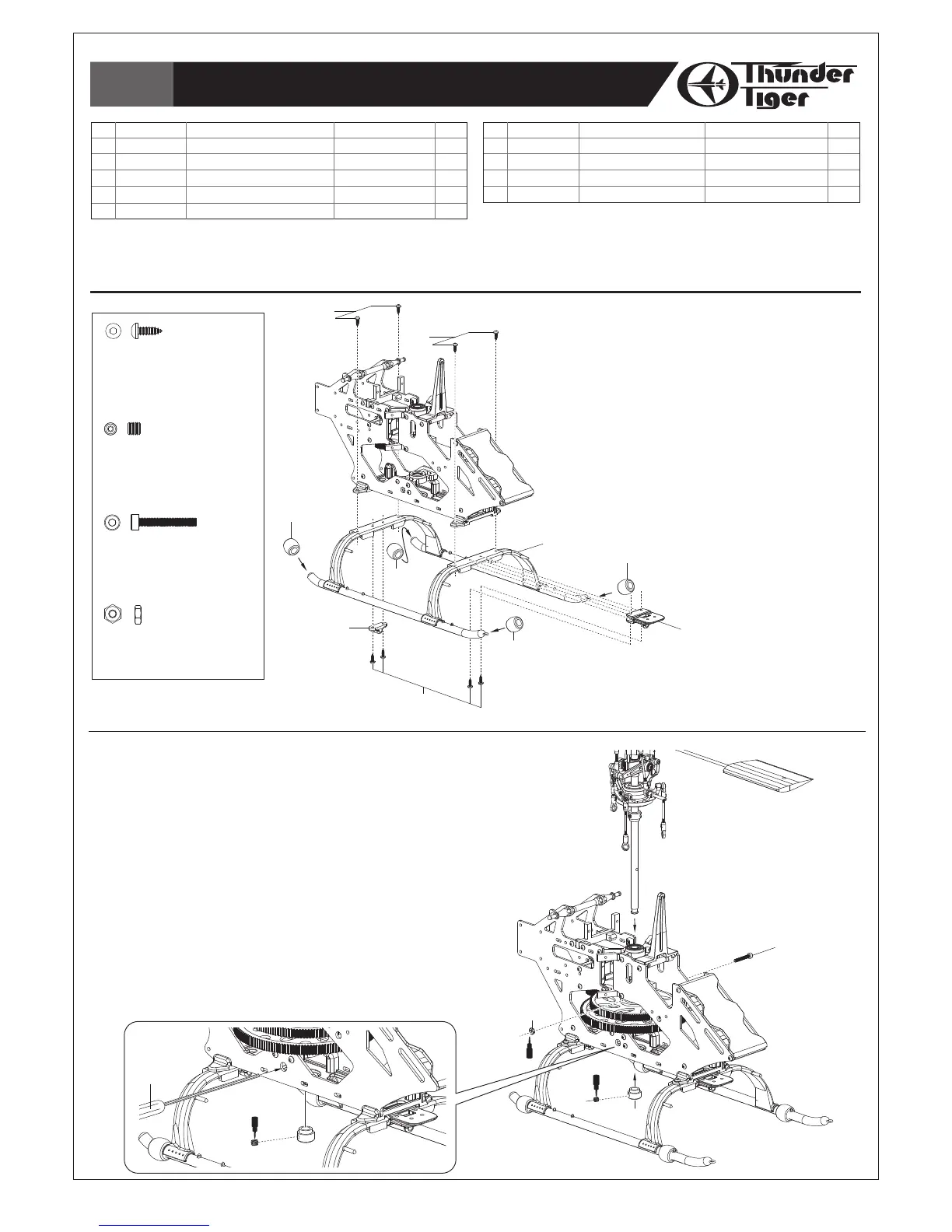

Step 1 / 步驟一
Assemble the Landing Skid, Canopy Clip & Antenna
Holder as drawing, and then attach the skid set on the
main frame set.
先組裝腳架、機殼固定夾及天線管座，然後再將腳架組安裝
至側板組。
Step 2 / 步驟二
1. Slide the main gear set into the main frame set.
2. Insert the Main Shaft into the Upper Bearing Housing, main
gear set & Lower Bearing Housing.
3. Line up the holes of the Autorotation Tail Drive Gear, One Way
Bearing Shaft & Main Shaft, and then insert the Socket Screw
to fix them with a M2 Nut. Add a drop of threadlocking when
securing, but do not over tighten.
4. Attach the Main Shaft Lock Ring on the end of the Main Shaft.
Secure the ring by a Set Screw with a drop of threadlocking,
note there should be no play of the Main Shaft.
1. 將主齒輪組套入側板組中。
2. 將主軸穿過上軸承座、主齒輪組及下軸承座。
3. 對正尾驅動主齒、單向承軸及主軸上孔位後，穿入內六角螺絲並加上
螺帽，並使用適量防鬆劑固定。注意! 請勿過度緊迫螺絲!
4. 將止擋環套入主軸尾端，使用適量防鬆膠鎖上，正確安裝時，主軸不
會有上下移動之空間。
(8)
(2)
(4)
(4)
(4)
(1)
(5)
(5)
(3)
(5)
(5)
(9)
(7)
(6)
T22
T22
T22
Screw Driver
螺絲起子
To Next Page
