THUNDER TIGER MINI TITAN V2 - MANUAL 2 User Manual

-15-

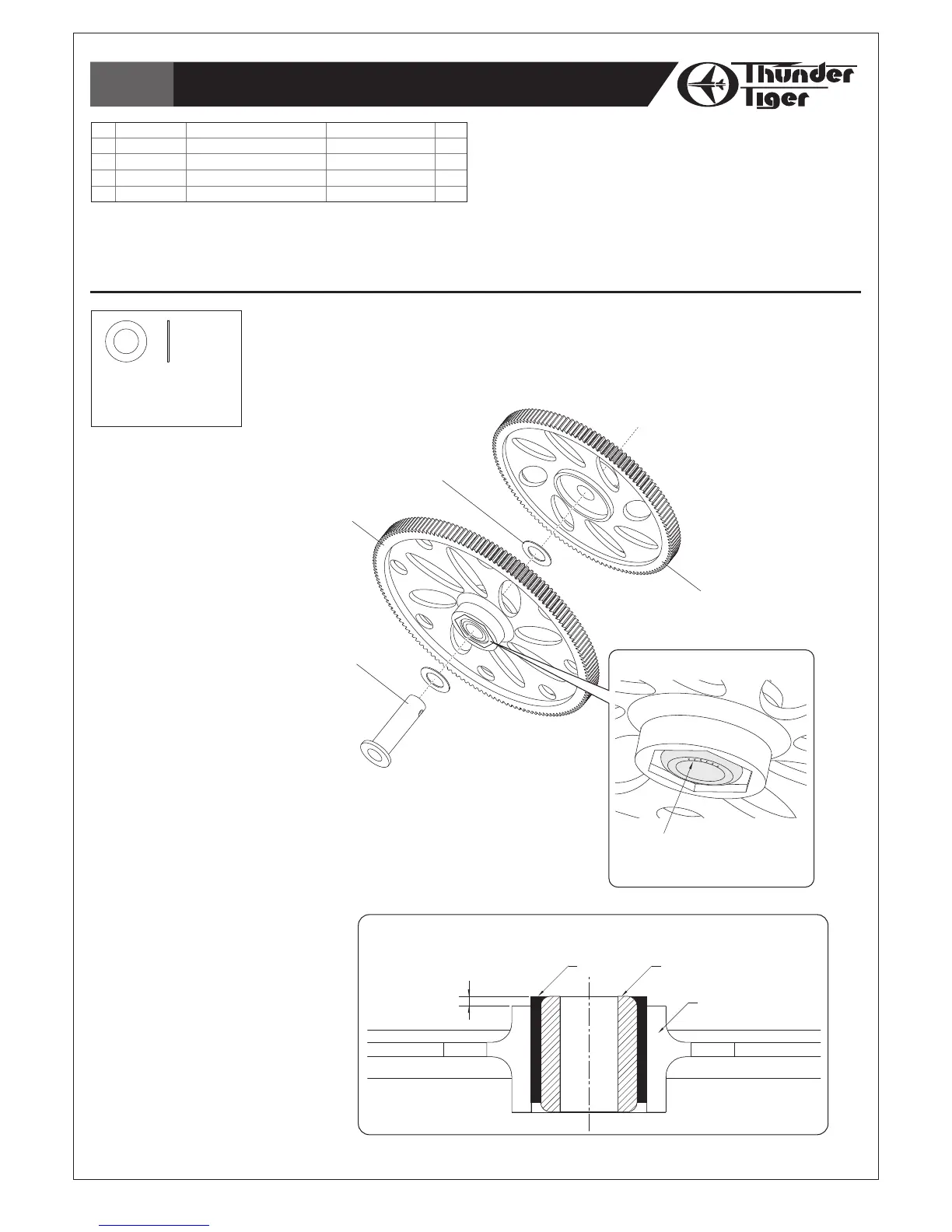

Main Frame Assembly-3 / 本體組裝 -3
Bag H
1. The One Way Bearing and the Spacer are pre-assembled.
2. Assemble the Main Gear and the Autorotation Tail Drive Gear with the One Way Bearing
Shaft.
1. 單向軸承與墊片原廠已安裝完成。
2. 以單向軸套組合主齒輪與尾驅動齒輪。
BK0931
Flat Washer d6×D10×0.3
單向軸套墊 圈 d6×D10×0.3
No.
1
2
3
4
Qty
1
1
2
1
Material No.
BK0933
BV0934
BK0931
BK0930
Description
AUTOROTATION TAIL DRIVE GEAR
MAIN GEAR (W/BEARING)
FLAT WASHER D6×D10×0.3
ONE WAY BEARING SHAFT
名稱
尾驅動輪
(124T)
主齒輪 ( 含軸承 )
單向軸套墊 圈 d6×D10×0.3
單向軸套
(1)
(3)
(2)
(4)
1mm
Spacer
六角軸環
Note 1 / 注意 1
Note 2 / 注意 2
The Words on the One Way
Bearing is toward bottom
單向軸承刻字端朝下
One Way Bearing
單向軸承
Main Gear 150T
主齒輪
