-14-
Main Frame Assembly-2 /
本體組裝
-2
Bag G
HNX2-6B
Socket Button Head Self Tapping Screw M2×6
半圓頭內六角自攻螺絲M2×6
No.
1
2
3
Qty
1
1
1
Material No.
BK2601
BK2604
BK2606
Description
ANTI-ROTATION BRACKET
BATTERY TRAY
BOTTOM BRACKET
名稱
十字盤相位導軌
電池板
機身底板
No.
4
5
6
Qty
12
1
2
Material No.
HNX2-6B
BK1887
BK1888
Description
Socket Button Head Self Tapping Screw M2×6
STANDOFF SPACER
CANOPY STANDOFF
名稱
半圓頭內六角自攻螺絲M2×6
定位柱
機殼支柱
(4)
(3)
(6)
(1)
(6)
(5)
(2)
(4)
(4)

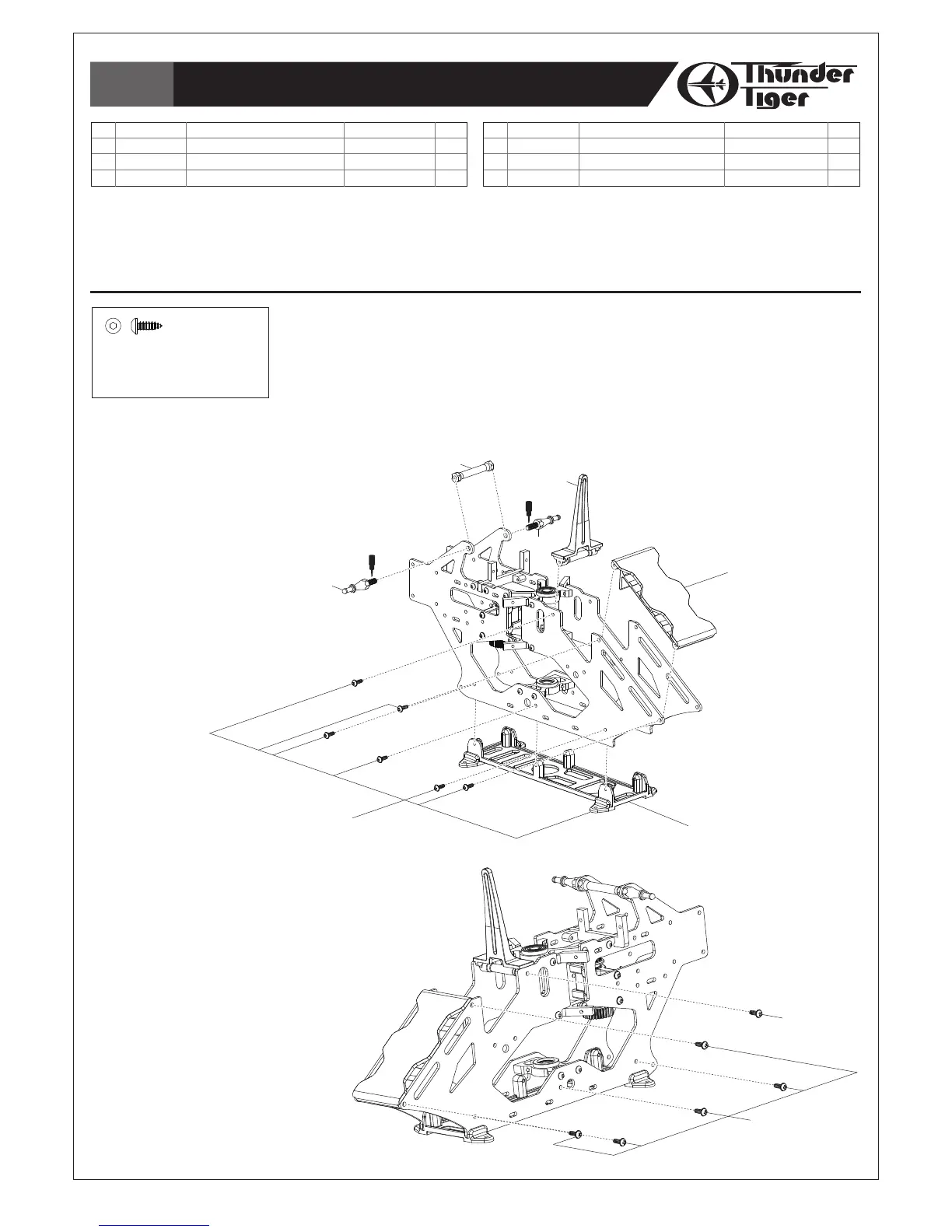

Step 1 / 步驟一
1. Assemble the Battery Tray, Anti-rotation Bracket and Bottom Bracket by Tapping
Screws (M2 x 6, #4) as drawing.
2. Assemble the Canopy Standoff & Standoff Spacer on the main frame set, secure
tightly with a drop of thrardlocking.
1. 參考圖示將電池板、十字盤相位導軌及機身底板以自攻螺絲組裝至側板組。
2. 使用適量防鬆劑將將機殼支柱及定位柱組裝至側板組。
T22
T22
To Next Page
