TOF camera: higher supply voltage is added to support Panasonic TOF camera
module with a switch board
Raspberry Pi Camera: duplicated with CAM0B
Sensors
TDK ICM-42688-P with footprint compatible for Bosch BMI160
AKM compass AK09918C
TDK Pressure sensor (ICP-10111)
Audio
4 digital PDM mics that interface directly to QRB5165 chipset
Speaker connectors
10.1.2 Board views

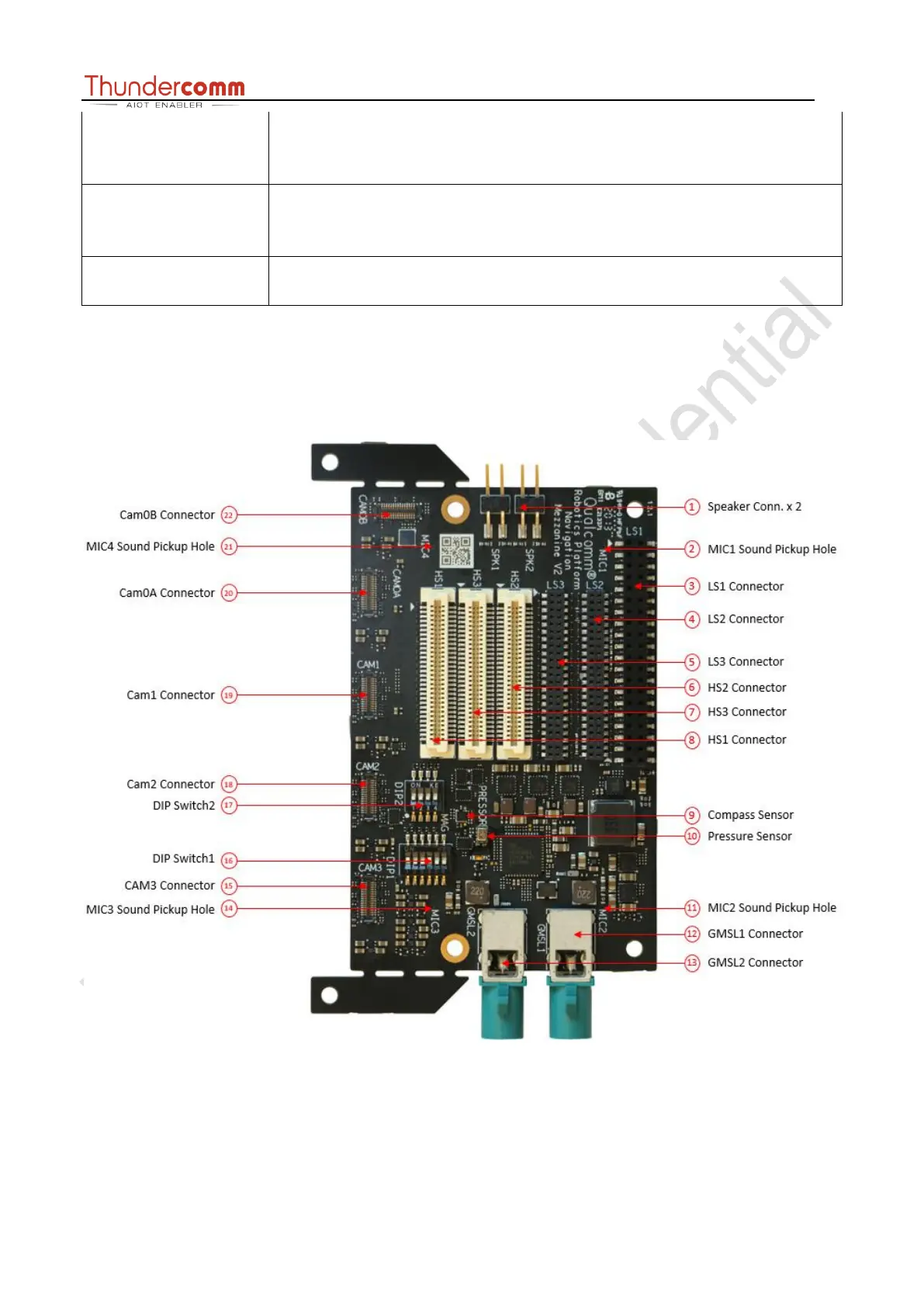

Top view
