Stroller Handles
(TRA, YRA)
The stroller handles operate using stroller handle
receivers that operate similarly to the swing away
armrest receivers on the TRA and YRA wheelchairs.
Figures 30 and 31 show examples of the stroller
handles being used with and without swing away
armrests.
To adjust the height of the stroller handles, follow
the procedures under “Adjusting the Height of the
Armrest Receiver (TRA and YRA)” on page 42.
To adjust the height of the stroller handle receiver,
follow the procedures under “Adjusting the Height of
the Armrest Receiver (TRA and YRA)” on page 42.
The stroller handle is equipped with a quick release
pin to prevent the stroller handle from coming out
while in use and for easy removal. To remove the
stroller handles push the release button on the
release pin and slide it out. The release pin is
attached with a lanyard to prevent it from being lost.
Stroller Handles
(YG Series)

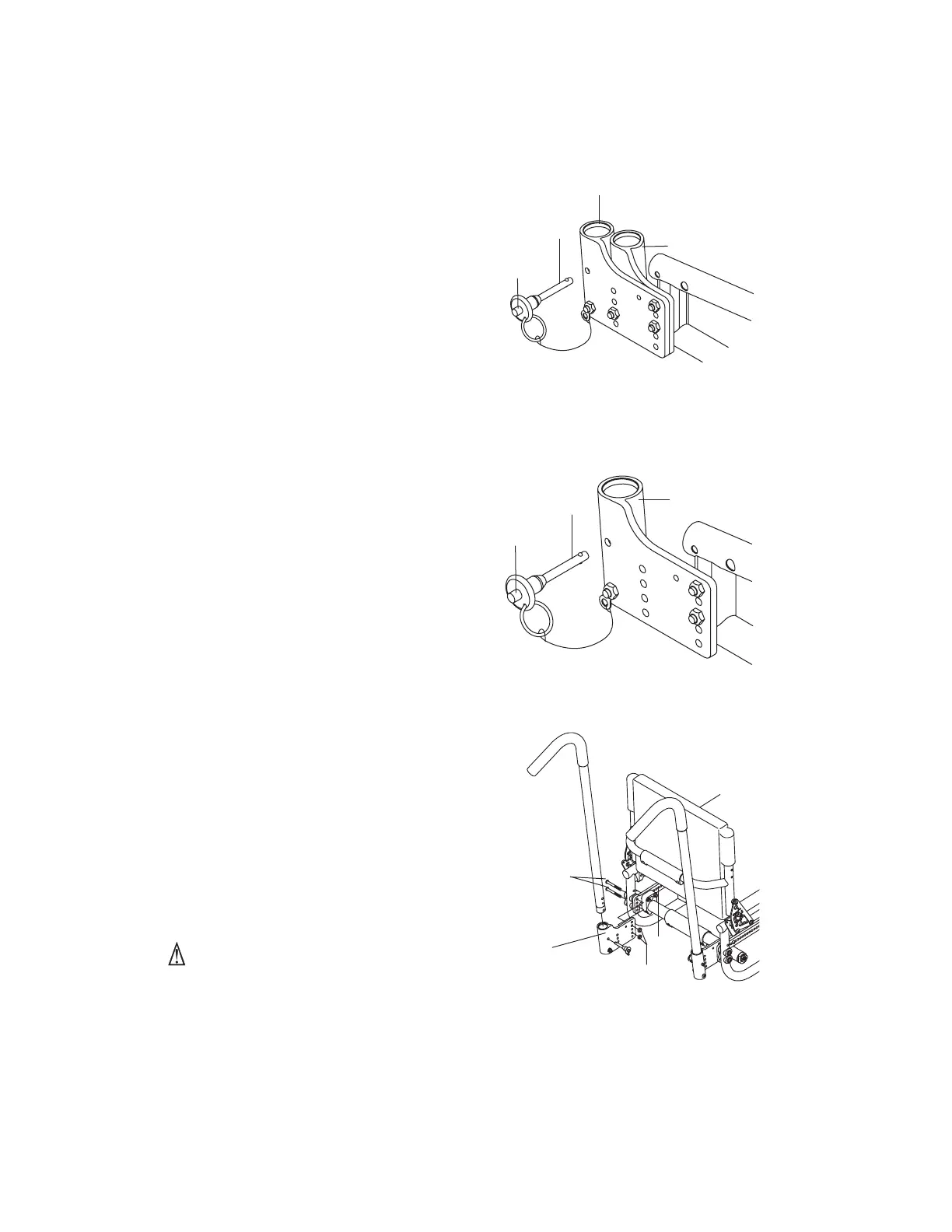

Figure 30
Armrest and Stroller Handle Assembly
Figure 31
Stroller Handle Assembly without Armrests
Quick
Release Pin
Release
Button
Stroller Handle
Receiver
Swing Away
Armrest Receiver
Quick
Release Pin
Release
Button
Stroller Handle
Receiver
The stroller handles operate using stroller handle
receivers that operate similarly to the swing away
armrest receivers on the TRA, YRA and EVO
wheelchairs. Figure 32 shows the YG Series stroller
handle receiver.
Adjusting the Height of the Receiver
Tools Needed:
• 5/32" Allen Wrench
• 7/16" Open End Wrench
1. Remove the Allen Screws that secure the stroller
handle receiver to the frame. See Figure 32.
2. Reposition the stroller handle receiver to the desired
height and reinsert the Allen Screws through the
complete assembly. Securely tighen the Allen
Screws and lock nuts.
WARNING
When reassembling, make sure that at least one of the
Allen Screws bolts the axle plate to the frame. This may
limit your options for adjusting the height of the stroller
handle receiver.
Figure 32
YG Series Stroller Handle Assembly
9
8
7
6
5
4
3
2
11
2
3
4
5
6
7
8
99
8
7
6
5
4
3
2
11
2
3
4
5
6
7
8
9
Figure 54
Figure 55
Figure 56
Stroller Handle
Receiver
Allen
Screws
Locknuts
Axle
Plate
