Figure 95
Repositioning the Handle
Push to Lock
Position
2. Slide the old Standard Push to Lock wheel lock out
of the clamp. See Figure 91.
3. Slide the new wheel lock into the wheel lock clamp,
but do not tighten the Allen Screws.
4. Follow the procedures under “Adjusting the Push to
Lock Wheel Lock” on page 71 to position and
secure the new wheel lock.
Uni-Lock
(TR Series, YG Series, YR Series, ZR Series, Aero Z
and Evo)
Adjusting the Uni-Lock Wheel Lock
Tools Needed:
• 3/16” Allen Wrench
1. Loosen the two Allen Screws in the wheel lock
clamp. See Figure 92.
2. Adjust the position of the wheel lock clamp on the
frame so the wheel stop embeds at least 3/16” into
the tire when engaged in the locked position.
3. Securely tighten the two Allen Screws that secure
the wheel lock clamp to the frame.
Replacing the Uni-Lock Wheel Lock
Tools Needed:
• 3/16” Allen Wrench
1. Loosen the two Allen Screws that secure the wheel
lock clamp to the frame.
2. Slide the old Uni-Lock out of the clamp. See Figure
92.
3. Slide the new Uni-Lock into the wheel lock clamp,
but do not tighten the Allen Screws.
4. Follow the procedures under “Adjusting the Uni-
Lock Wheel Lock” on
page 72 to position and
secure the new wheel lock.
Changing the Uni-Lock From the Push to
the Pull Position
Tools Needed:
• 5/32" Allen Wrench
The Uni-Lock wheel lock can be set up so that you
either pull the handle to engage the lock or push the
handle to engage the lock. To determine which setup
you have, locate the small socket head cap screw in
the wheel lock handle base. If it is in the upper
position (see Figure 93), the Uni-Lock is set to the
“Pull to Lock” position. If it is in the lower position (see
Figure 94), the Uni-Lock is set to the “Push to Lock”
position. You can change the operation from pull to
push or vice versa as follows:
1. Remove the socket head cap screw and reposition
it to either the Pull to Lock or Push to Lock position,
as desired. See Figure 95.
2. Securely tighten the socket head cap screw.

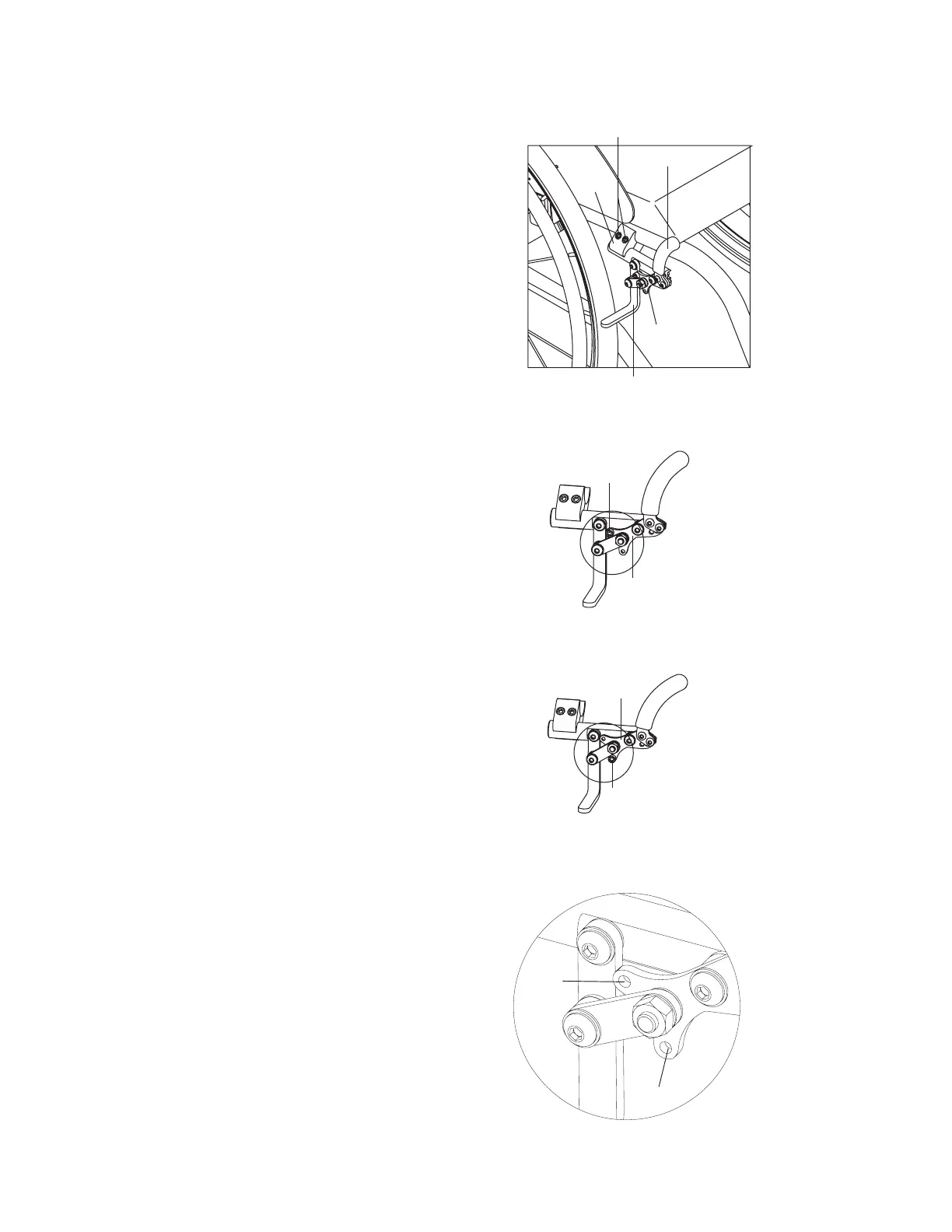

Figure 92
Adjusting/Replacing Uni-Lock Wheel Lock
Allen Screws
Uni-Lock
Handle
Wheel
Lock
Clamp
Wheel Lock
Handle Base
Figure 93
Pull to Lock Position
Figure 94
Push to Lock Position
Wheel Lock
Handle Base
Socket Head
Cap Screw
Wheel Lock
Handle Base
Socket Head
Cap Screw
Pull to Lock
Position
