TiLite Rigid TR Series - Bolt-On Push Handles (TR Series, YR Series, ZR Series, Aero Z and Evo); Mounting Push Handles; Removing Push Handles; Adjustable Height Bolt-On Push Handles (TR Series, YR Series, ZR Series, Aero Z and Evo)

TiLite
®
OM000007 - Rev. B
39
Bolt-On Push Handles
(TR Series, YR Series, ZR Series, Aero Z and Evo)
Mounting Push Handles:
Tools Needed:
• 5/16” Allen Wrench
1. See Figure 33 for the correct location to mount the
clamp-on push handles to the rigidizer bar.
2. Assemble the two halves of the clamp around the
rigidizer bar. See Figure 34.
3. Insert the 1” Allen Screw through a washer into the
bottom hole on the clamp and loosely tighten.
4. Insert the push handle into the clamp and align the
holes in the push handle with the upper two holes
in the clamp.
5. Insert the two 1-1/8” Allen Screws through the
washers, the two halves of the clamp and the push
handles and securely tighten.
6. Make sure the push handle is correctly positioned
for proper pushing and securely tighten the 1”
Allen Screw.
WARNING
NEVER attempt to lift a wheelchair up a curb, step or
flight of stairs by lifting on any removable (detachable)
parts, such as clamp-on push handles. If you ignore this
Warning, you may fall, tip over or lose control of the
wheelchair and seriously injure yourself or others or
damage the wheelchair.
Removing Push Handles:
Tools Needed:
• 5/16” Allen Wrench
1. Remove the three Allen Screws and remove the
clamp and handle. See Figure 34.
Adjustable Height Bolt-On Push
Handles
(TR Series, YR Series, ZR Series, Aero Z and Evo)
Mounting Push Handles:
Tools Needed:
• 3/8” Allen Wrench
1. See Figure 35 for the correct location to mount the
height adjustable clamp-on push handles.
2. Assemble the two halves of the clamp around the
rigidizer bar. See Figure 36.
3. Insert the 4 Allen Screws into the two halves of the
clamp and loosely tighten.
4. Insert the push handle through the clamp until the
handle is at the desired height and loosely tighten
the adjustable handle.

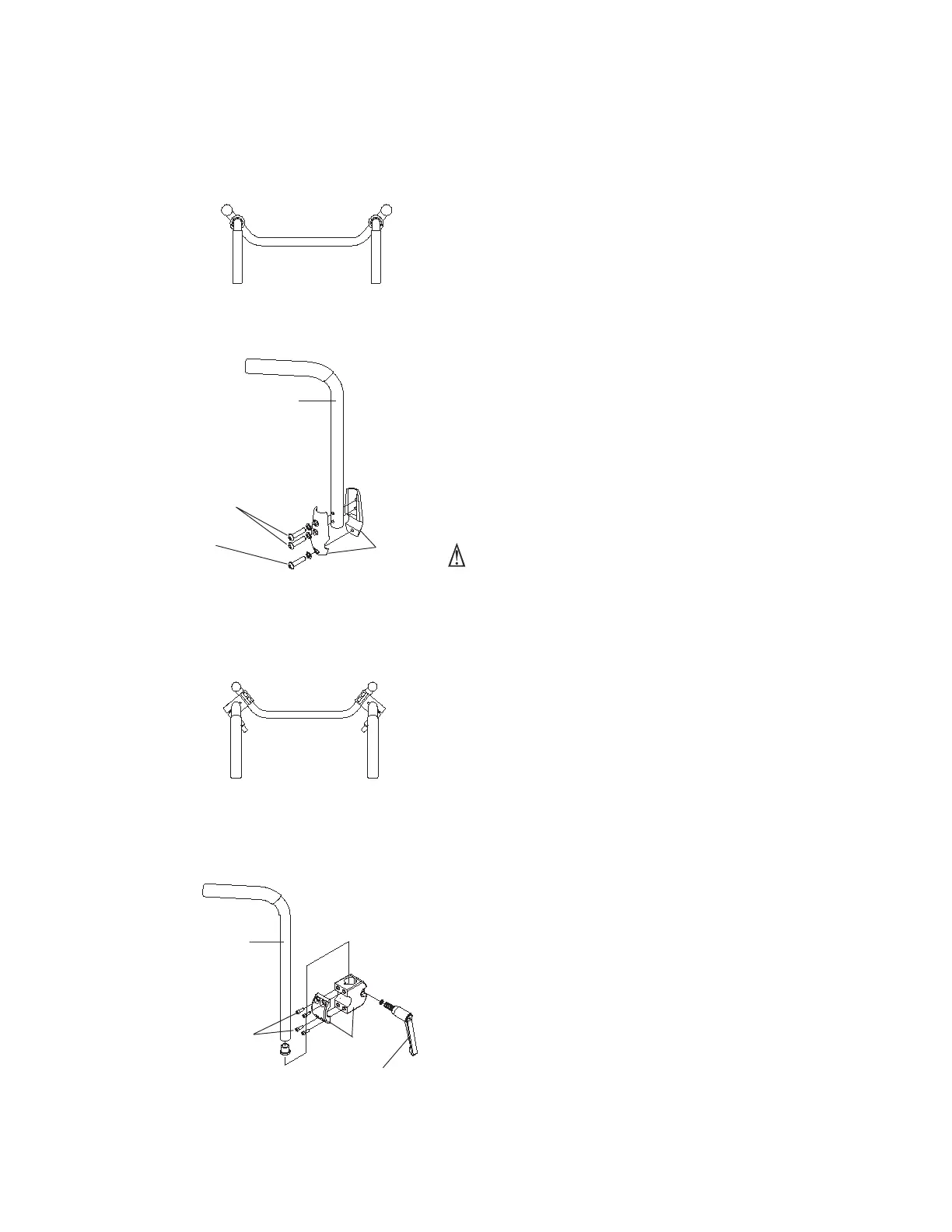

Figure 35
Proper Location for Height Adjustable Clamp-On
Push Handles
Figure 36
Height Adjustable Clamp-On Push Handles
Figure 33
Proper Location for Clamp-On Push Handles
Figure 34
Clamp-On Push Handles
Push
Handle
Push
Handle
Allen
Screws
1
1/8
” Allen Screws
Clamp
1” Allen Screw
Clamp
Adjustable
Handle
