OM000007 - Rev. B
42

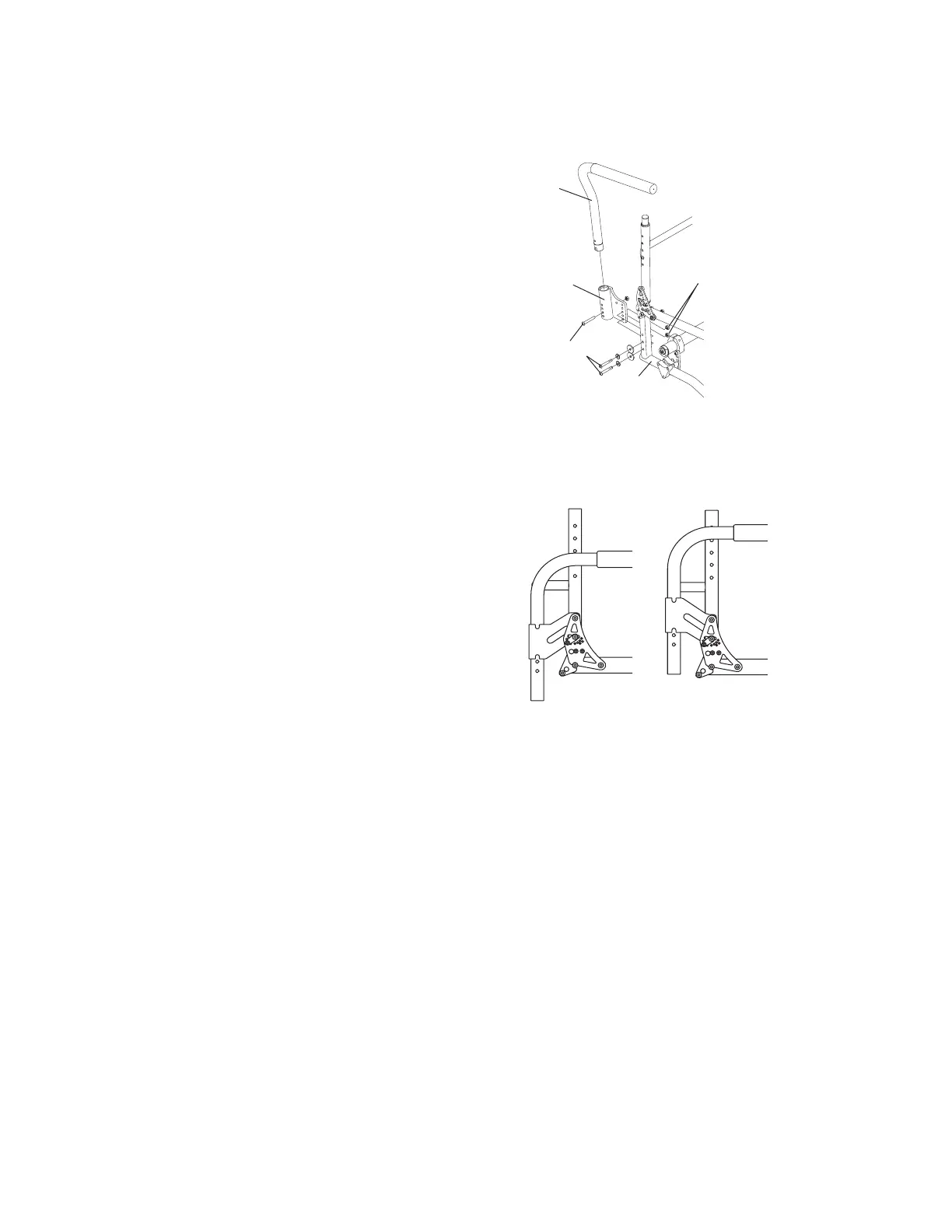

Figure 41
ZR Series/Aero Z/TR/YR Armrest Height
A. 9” – 12” B. 11” - 14”
AB
Figure 40
Height Adjustment of TRA/YRA Tubular Swing
Away Armrest
Frame
Adjusting the Height of the Armrest
Receiver
(ZR Series, Aero Z, TR and YR)
Tools Needed:
• 5/32” Allen Wrench
• 7/16” End Wrench
The armrest receiver can be inverted to achieve
a higher or lower height range for the swing away
armrest. See Figure 41.
1. Remove the armrest from the armrest receiver.
2. Remove the two Allen Screws that pass
through the backrest hinge, the armrest
receiver and the backrest tube. See Figure 39.
Do not remove the Allen Screws that attach the
backrest hinge to the seat tube.
3. Remove and invert the armrest receiver and
slide it back into place between the backrest
tube and the backrest hinge, making sure to
align the holes in the backrest receiver with the
holes in the backrest tube and the backrest
hinge.
4. Reinsert the Allen Screws through the
reassembled backrest hinge, the inverted
armrest receiver and the backrest tube and
securely tighten the Allen Screws and locknuts.
5. Reinstall the armrest in the armrest receiver.
Adjusting the Height of the Armrest
Receiver
(TRA and YRA)
Tools Needed:
• 5/32” Allen Wrench
• 7/16” Open End Wrench
The armrest receiver can be raised or lowered to
achieve a higher or lower height range for the
swing away armrest.
1. Remove the armrest from the armrest receiver.
2. Remove the two Allen Screws and locknuts that
secure the armrest receiver to the frame. See
Figure 40.
3. Reposition the armrest receiver to the desired
height and reinsert the Allen Screws through
the frame. Securely tighten the locknuts and
Allen Screws.
4. Reinstall the armrest in the armrest receiver.
Allen
Screws
Armrest
Armrest
Receiver
Locknuts
