Timberwolf TW 150DHB - Page 33

TIMBERWOLF
TW 150DHB
32

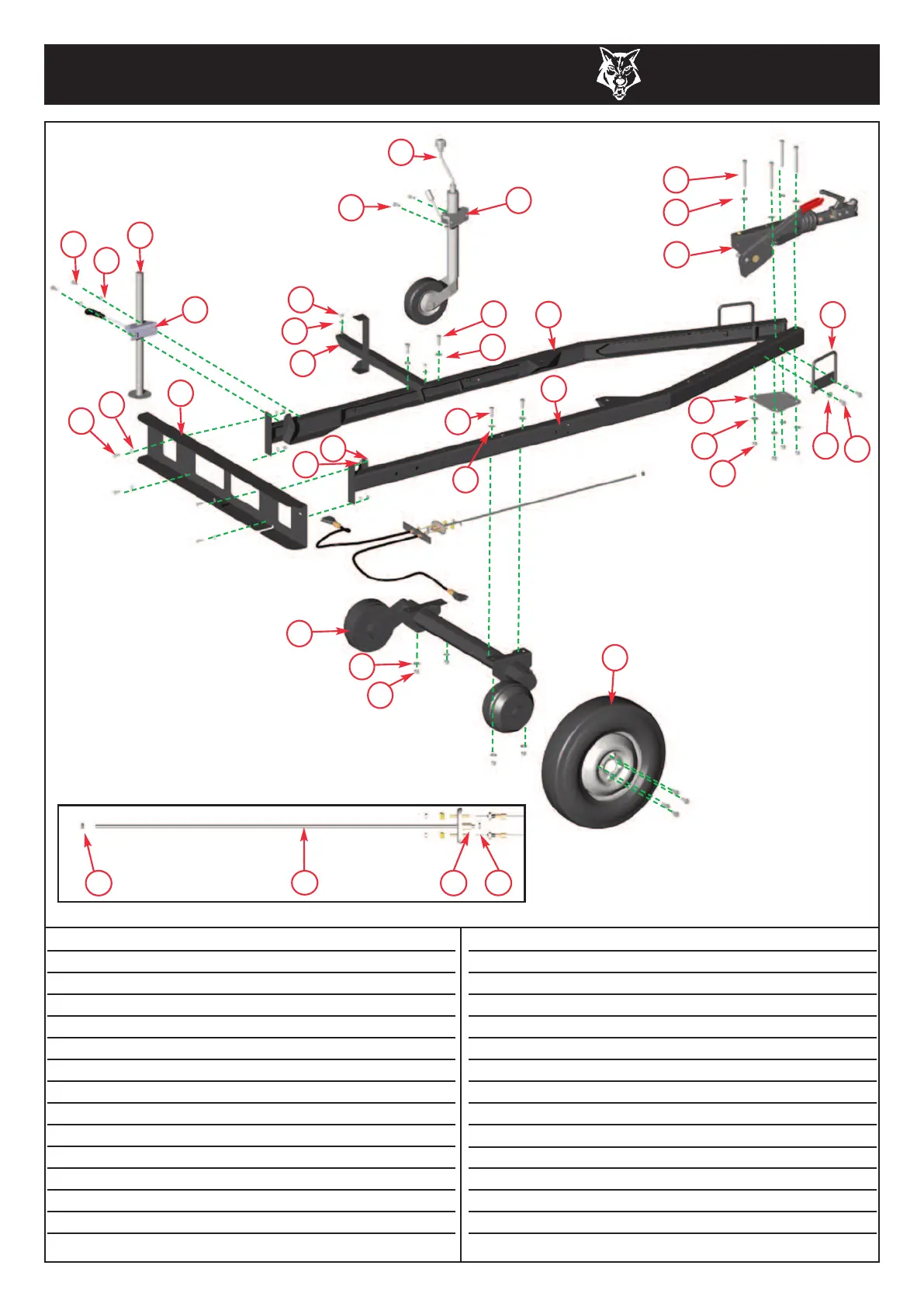

CHASSIS (1)
Item Part No Part Name Q’ty
1 0309 M10/40 Bolt 2
2 0701 M10 A Washer 2
3 0012 Prop Stand 1
4 0017 34 mm Prop Clamp 1
5 P*75 Jockey Wheel Assy 1
6 0305 M10/25 Caphead 2
7 18083 Jockey Wheel Clamp 1
8 0479 M8 P Nyloc Nut 6
9 0712 M8 C Washer 3
10 1701FB Tank Support 1
11 0350 M8/25 Bolt 4
12 0711 M8 A Washer 4
13 19804FB Lightboard Bracket 1
14 0430 M12/35 Bolt 4
Item Part No Part Name Q’ty
15 0704 M12 C Washer 24
16 19802FB Beam N/S 1
17 19803FB Beam O/S 1
18 0314 M12/110 Bolt 4
19 17479 Tow Head 1
20 17509 Brace Plate 1
21 0644 M12 P Nyloc Nut 8
22 3043FS Chassis Handle 2
23 1581 M12/35 Caphead 4
24 17476 Axle 1
25 19663 Wheel (inc spare) 3
26 1036 M10 Plain Nut 2
27 4010 Brake Rod 1
28 0079F Nut Ball 1
1
2
3
4
11
12
13
6
5
8
9
10
7
14
15
16
14
15
8
12
18
15
19
20
15
21
22
2315
24
25
26
26
27
28
17
15
21
