Timberwolf TW 150DHB - 39 Electrical Panel

TIMBERWOLF
TW 150DHB
39
ELECTRICAL PANEL
13
5

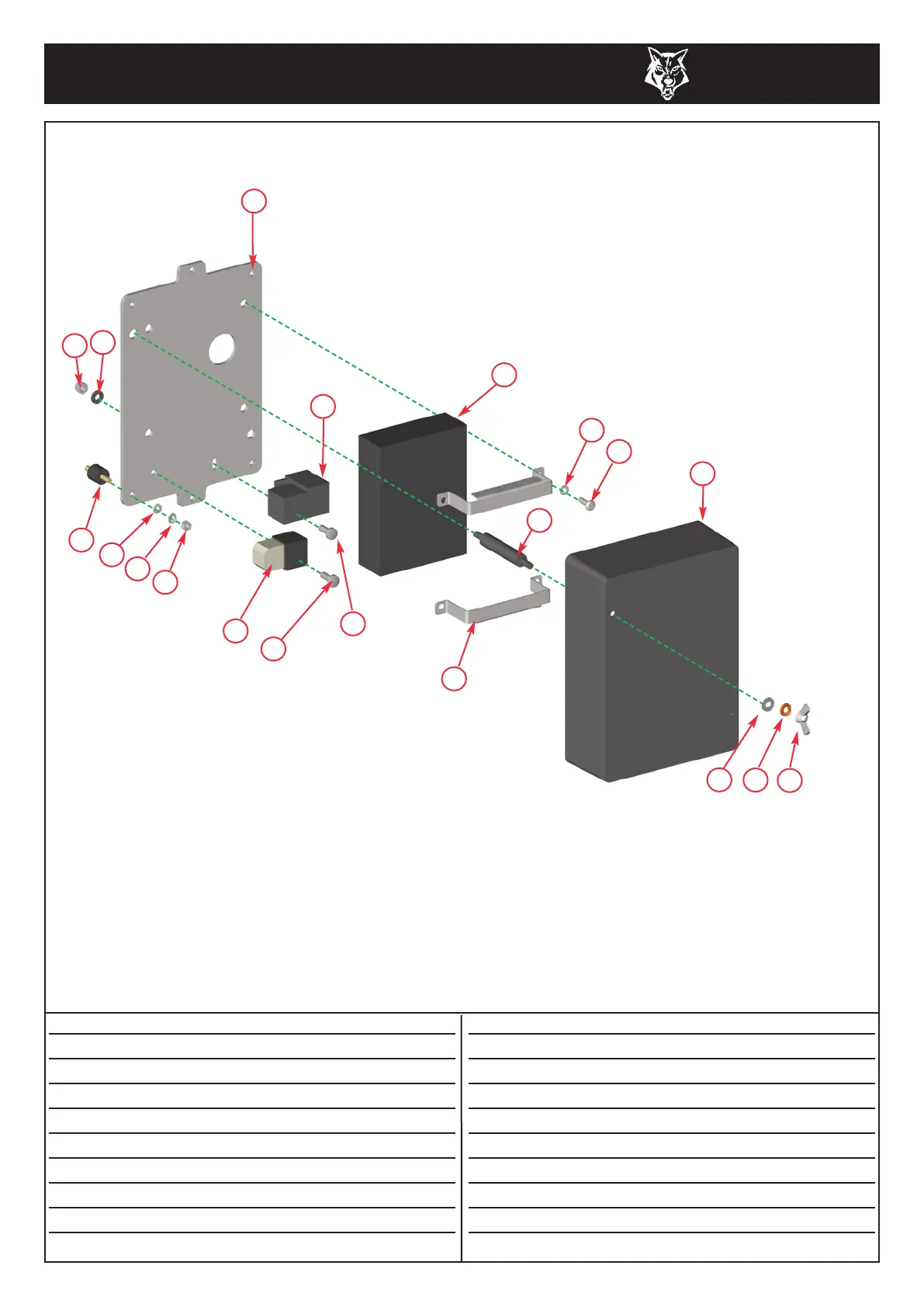

Item Part No Part Name Q’ty
1 3038FS Electrical Panel 1
2 18405 H-Box 1
3 0857 M5 AWasher 8
4 0435 M5/16 Pan Pozi 4
5 2725 Electrical Cover Stand Off 3
6 1930 Electrical Cover 1
7 18107 M6 Wing Nut 2
8 18106 M6 Spring Washer 2
9 0709 M6 C Washer 4
Item Part No Part Name Q’ty
10 Supp’d with loom Relay 1
11 0391 M6 T Nyloc Nut 2
12 4033 M5 AV Mount 4
13 Supp’d with loom Fuse 2
14 18291 M5 Plain Nut 4
15 0438 M6/16 Pan Pozi 1
16 1151 Countersunk Pop Rivet 1
17 3024 M5 Spring Washer 4
18 18398 Mounting Bracket 4
16
7
8
4
3
2
1
6
9
x4
x4
x2
12
17
14
11
9
10
15
3
18
