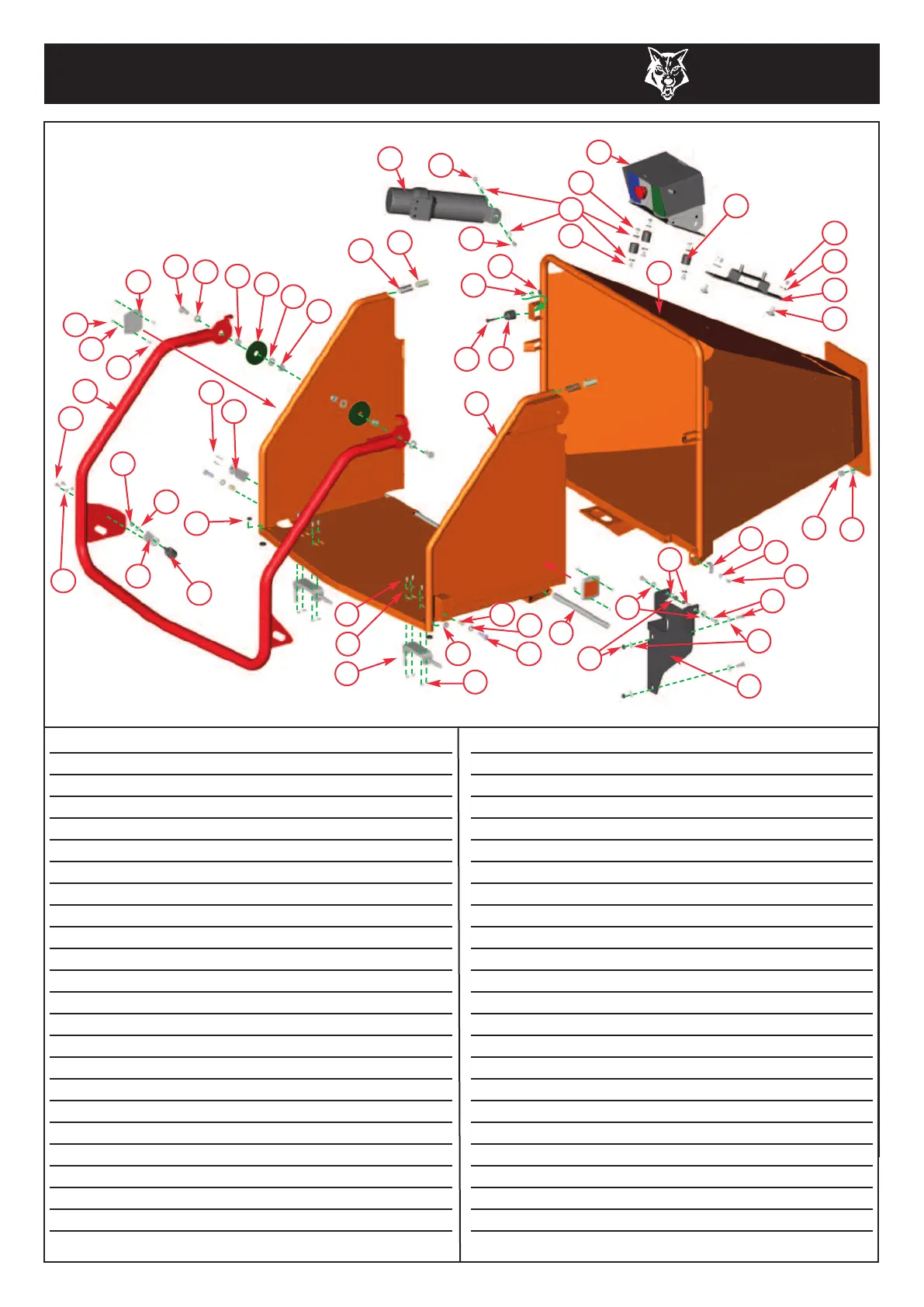

Timberwolf TW 150DHB - 43 Funnel

TIMBERWOLF
TW 150DHB
43
FUNNEL
1
7
35
13
9
20
18
19
21
24
23
17
22
10
27
28
11
2
16
12
16
30
31
31
32
33
34
25
2
14
33
34
15
34
Item Part No Part Name Q’ty
1 2809F Control Box (detail on pg 34) 1
2 1721 M8/10 Bolt 6
3 0289FS Spare Wheel Bracket 1
4 0045 M12 T Nyloc 4
5 17451FB Funnel Support Bracket 1
6 0320 M12/25 Cup Square 2
7 4238FO Funnel 1
8 1644 M8 Anti-Vibration Mount 3
9 0429 M12/35 Bolt 2
10 2919FO Feed Tray 1
11 2922FS Hinge Pin 2
12 0178 Rubber End Stop 1
13 1600 Nylon Pistons 2
14 0353 M8/50 Csk Soc. 1
15 4018S Pin Bracket 2
16 0712 M8 C Washer 18
17 1603 Die Springs 2
18 1605M Stainless Spacer 2
19 1599 Bearing Washer 2
20 1570FR Safety Bar 1
21 1348 Limit Switch 1
22 1520 M10/45 Bolt 2
23 1591 Nylon Spacer 2
Item Part No Part Name Q’ty
24 0479 M8 P Nyloc Nut 5
25 2727FS Bracket Actuator 1
26 4345 M10 P Nyloc Nut 2
27 2986 1/2” Spring Bolt 2
28 0391 M6 T Nyloc Nut 8
29 P*144 Operator’s Manual Cannister 1
30 0046 M12 Plain Nut 4
31 0704 M12 C Washer 8
32 4344 M10 Repair Washer 2
33 0709 M6 C Washer 12
34 0437 M6/16 Bolt 12
35 4206 Nylon Bush 1
36 1006 M4/30 Pan Pozi 2
37 2493 Rubber Cap 2
38 0350 M8/25 Bolt 4
39 0711 M8 A Washer 4
40 0481 M8 T Nyloc Nut 4
41 19169 M14 C Washer 2
42 18104 M5/12 Pan Pozi 4
43 0857 M5 A Washer 4
44 18924 Square Reflector 2
45 18102 M5 T Nyloc Nut 2
46 0347 M8/20 Button Head 3
31
3
6
31
4
36
33
26
16
40
37
16
39
24
38
39
5
8
4
42
43
44
45
x3
40
29
46
