Timberwolf TW 150DHB - Engine

TIMBERWOLF
TW 150DHB
40
ENGINE
26

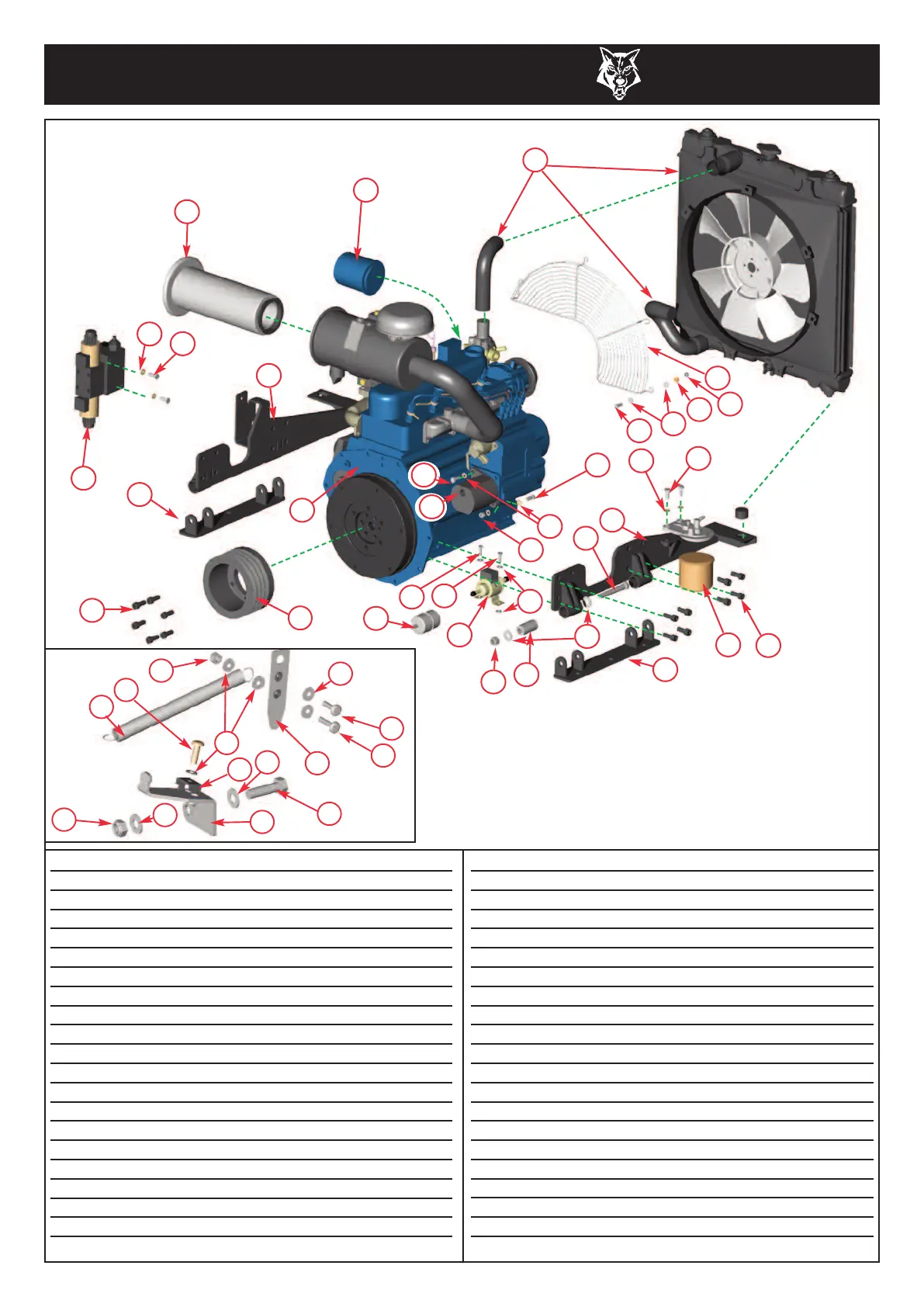

Item Part No Part Name Q’ty
1 0086 Air Filter 1
2 0095 Oil Filter 1
3 4319 Radiator Kit 1
4 1613 Directional Control Valve (DCV) 1
5 0879 Engine 1
6 0346 M8/20 Bolt 3
7 1170M Pulley Engine 150 x 4 1
8 19156FB Bracket Engine Mount 1
9 0350 M8/25 Bolt 2
10 0711 M8 A Washer 8
11
19155FB
Bracket Engine Mount 1
12 0304 M10/25 Fine Thread Socket Cap 22
13 0085 FuelFilter 1
14 0481 M8 T Nyloc Nut 2
15 0352 M8/40 Bolt 2
16 1660 Hydraulic Pump 1
17 3 M6/25 Bolt 1
18 1236 M6/20 Bolt 1
19 0708 M5 C Washers 5
20 1090F Throttle Arm Extension 1
Item Part No Part Name Q’ty
21 0712 M8 C Washer 3
22 0856 M5/20 Pan Pozi 1
23 0807 Fuel Pump 1
24 4315 In-Line Fuel Filter 1
25 0699 Throttle Clamp 1
26 1304 Spring 1
27 0435 M5/16 Pan Pozi 2
28 0236 M5 P Nyloc Nut 1
29 2814FS Throttle Cable Clamp 1
30 Supp’d with engine Radiator Fan Guard 1
31 0437 M6/16 Bolt 4
32 0709 M6 C Washer 11
33 18106 M6 Spring Washer 4
34 0392 M6 Plain Nut 4
35 0644 M12 PNyloc Nut 4
36 18338FS Engine Bracket Base 2
37 0332 M12/90 Bolt 4
38 18332 AV Mount 4
39 0704 M12 C Washer 8
