Timberwolf TW 150DHB - Chassis

TIMBERWOLF
TW 150DHB
33

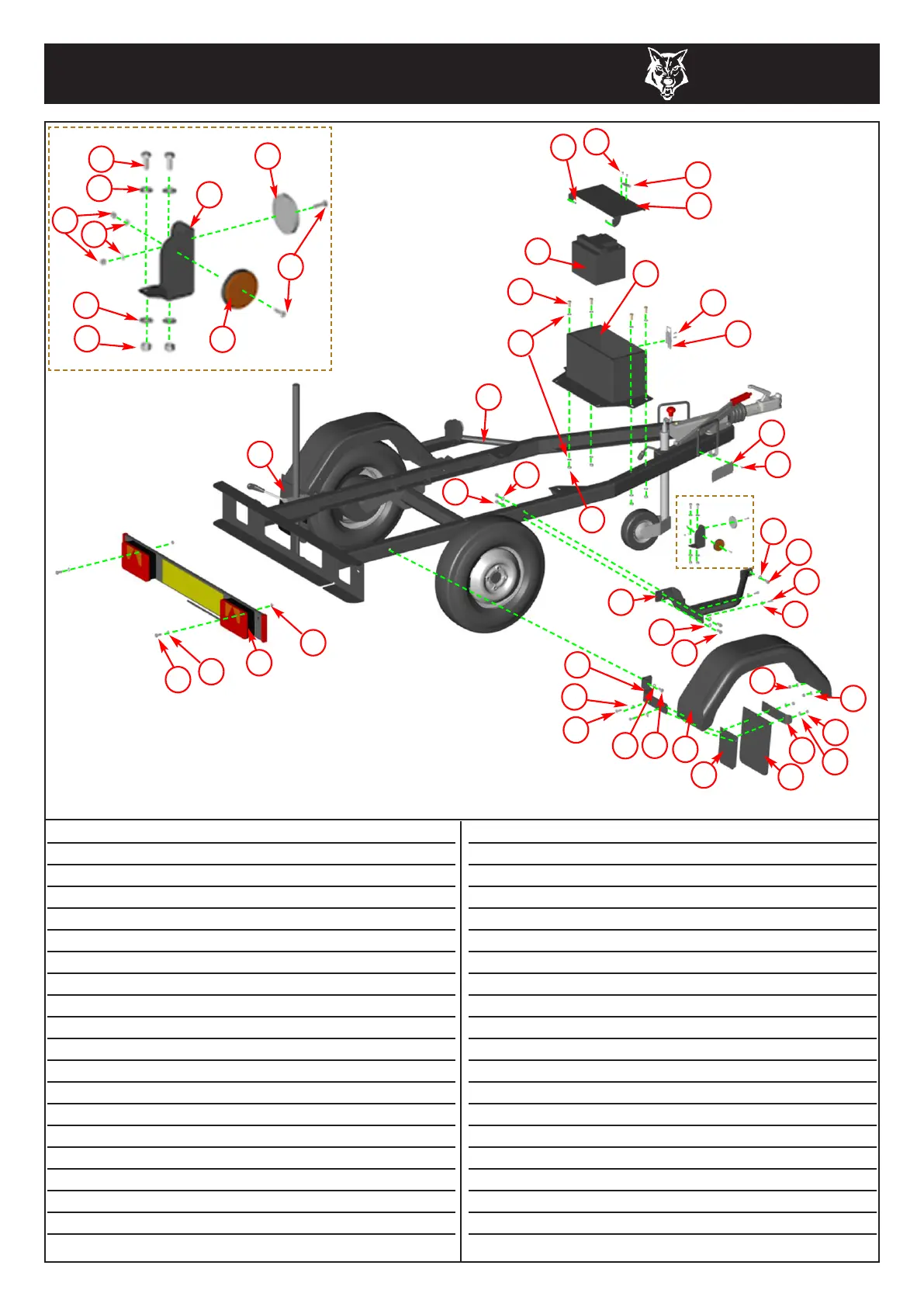

CHASSIS (2)
Item Part No Part Name Q’ty
1 0346 M8/20 Bolt 4
2 0711 M8 A Washer 8
3 0236 M5 P Nyloc Nut 4
4 18919 Reflector Support Bracket 2
5 0481 M8 P Nyloc Nut 12
6 18923 Reflector Amber 2
7 18922 Reflector Clear 2
8 0857 M5 A Washer 4
9 0435 M5/16 Pan Pozi 4
10 0066 Pop Rivet 4.8 x 6 4
11 0067 Pop Rivet 4.8 x 12 6
12 4088 Catch Plate 1
13 19645FB Battery/Tool Box Lid 1
14 4210 Battery 1
15 0360 M10/25 Bolt 6
16 19640FB Battery/Tool Box 1
17 0839 M10 C Washer 10
18 19682 Anti Trap Bar O/S 1
19 4345 M10 P Nyloc Nut 4
Item Part No Part Name Q’ty
20 0052 M10 T Nyloc Nut 4
21 2963 Catch 1
22 0714 M8 Mudguard Washer 4
23 19600 ID Plate 1
24 19683 Anti Trap Bar N/S 1
25 0350 M8/25 Bolt 4
26 0712 M8 C Washer 14
27 0701 M10 A Washer 6
28 19681 Rain Flap Clamp 2
29 19691 Rain Flap 2
30 19689 Rain Flap Support 2
31 19664 Mudguard 2
32 19655 Rear Mudguard Bracket O/S 1
33 18113 M8/35 Bolt 4
34 0479 M8 P Nyloc Nut 2
35 19795 Lightboard 1
36 19654 Rear Mudguard Bracket N/S 1
37 0382 M10/30 Bolt 4
38 0352 M8/40 Bolt 2
35
10
11
12
14
15
17
21
38
26
34
16
24
11
23
33
18
26
19
20
9
7
8
1
2
3
4
5
x2
6
27
15
25
26
15
5
26
28
29
30
5
22
31
32
17
x2
13
10
36
2
27
27
37
