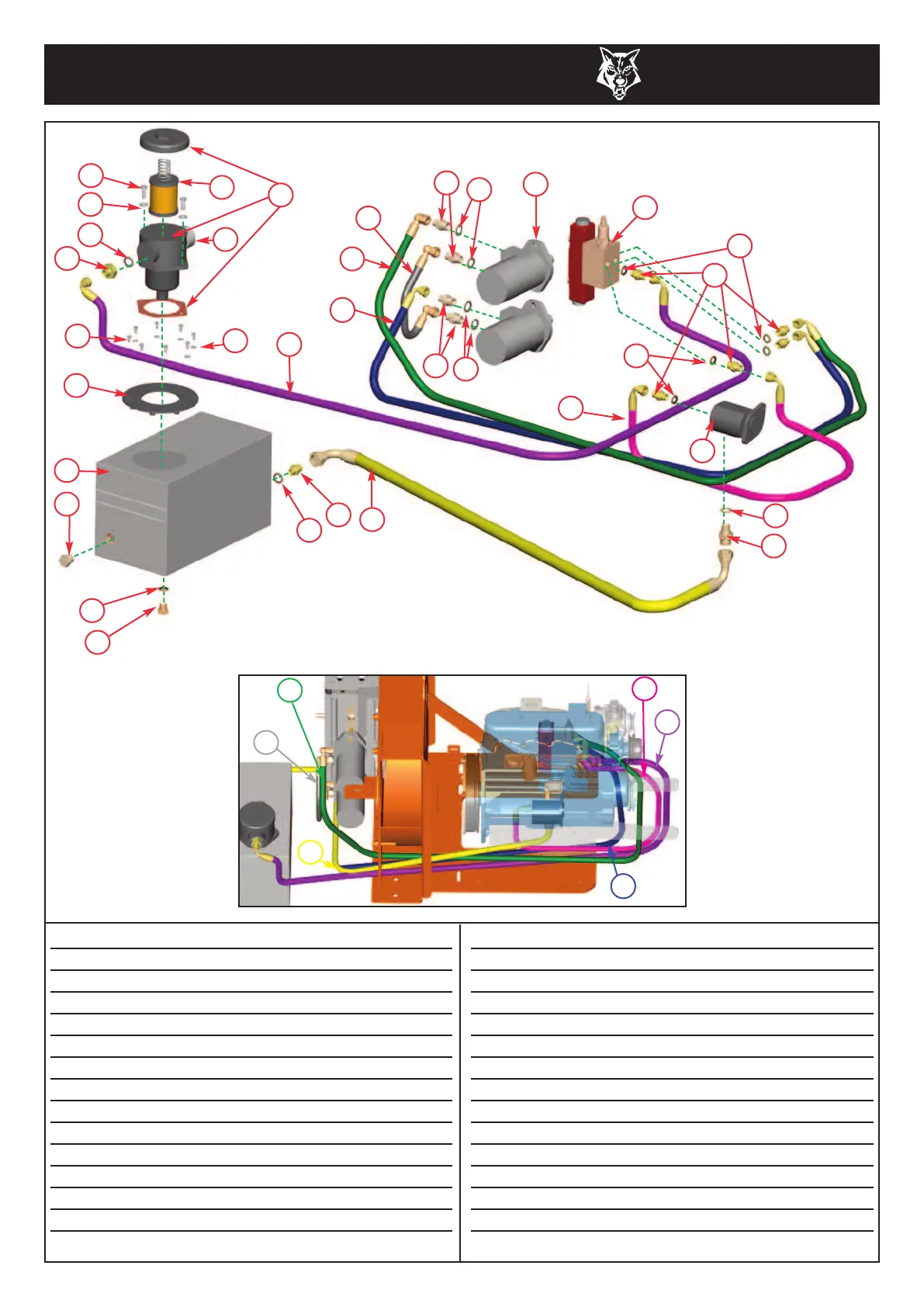

Timberwolf TW 150DHB - Hydraulics

TIMBERWOLF
TW 150DHB
44
HYDRAULICS
Item Part No Part Name Q’ty
1 1434 Tank Top Filter Housing 1
2 0100 Filter 1
3 0323 3/8” Hose, Top Motor to Btm Motor 1
4 0026 Adaptor mm 1/2”- 3/8” BSP 4
5 0398 Washer Dowty 1/2” 5
6 2982B Hydraulic Motor 2
7 4243 3/8” Hose, Pump to DCV 1
8 0161 Adaptor mm 3/8”- 3/8” BSP 5
9 0396 Washer Dowty 3/8” 6
10 0711 M8 A Washer 2
11 0350 M8/25 Bolt 2
12 1660 Hydraulic Pump 1
13 1583 Adaptor 1/2”- 3/4” BSP 1
14 3094 3/8” Hose, Bottom Motor to DCV 1
Item Part No Part Name Q’ty
15 4244 3/8” Hose, Hyd Filter to DCV 1
16 1703 Hydraulic Oil Tank 1
17 0225 Adaptor 3/4” - 3/8” 1
18 0152 Washer Dowty 3/4” 2
19 1766 Adapter 3/4” - 3/4” BSP 2
20 0211 3/8” BSP Plug 1
21 1613 Directional Control Valve (DCV) 1
22 17310 3/8” Hose, DCV to Top Motor 1
23 1067 Breather Filter 1
24 1658 M6/12 Bolt 8
25 4219 3/4” Tapered Blanking Plug 1
26 0709 M6 C Washer 8
27 1767 3/4” Hose, Hyd Tank to Pump 1
28 1702FS Tank Top Plate 1
6
7
12
8
4
5
18
4
22
5
13
19
3
27
21
9
7
5
16
27
3
15
14
14
22
15
1
18
17
9
20
25
28
24
11
10
23
2
9
26
