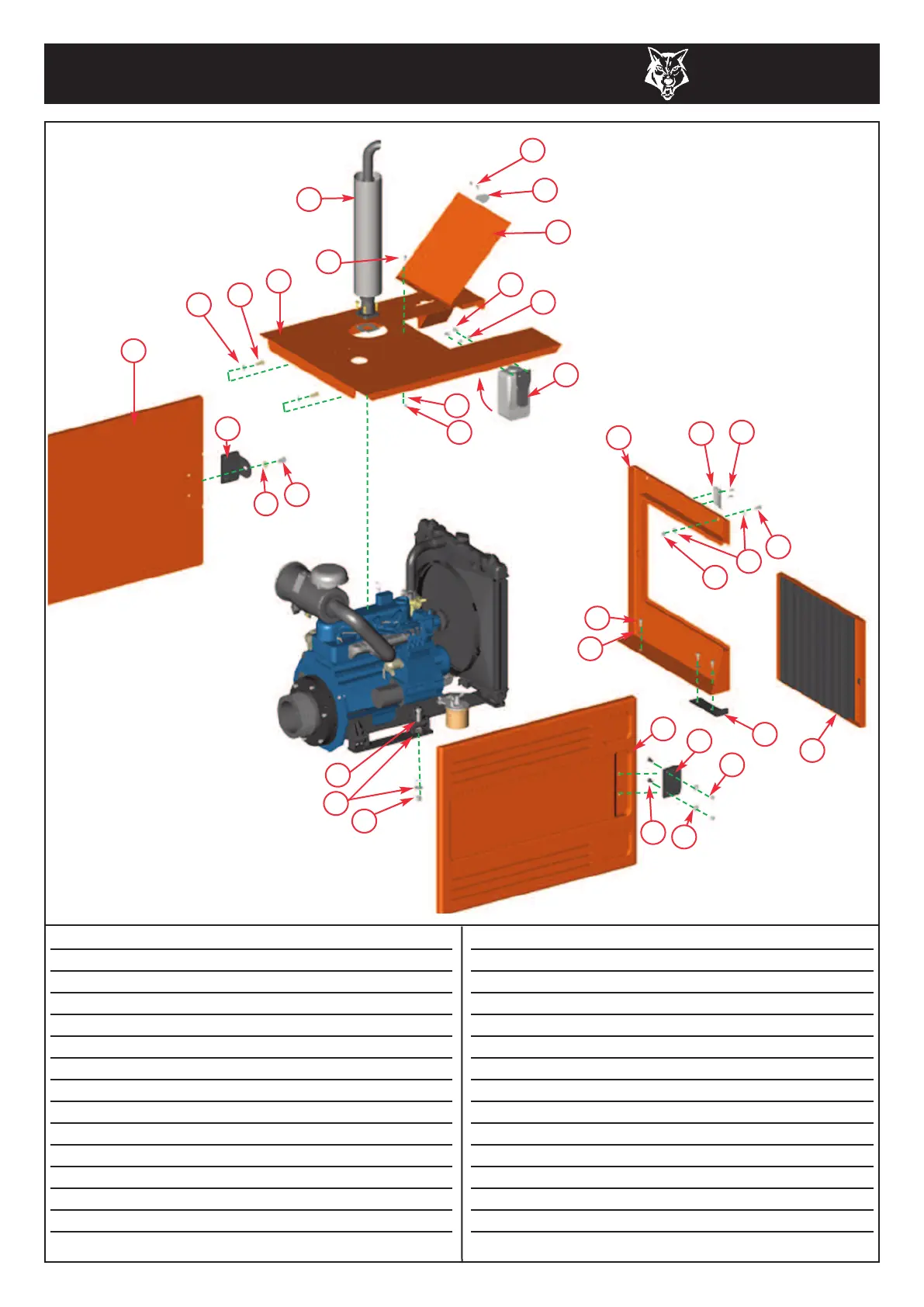

Timberwolf TW 150DHB - 41 Engine Bay

TIMBERWOLF
TW 150DHB
41
ENGINE BAY
Item Part No Part Name Q’ty
1 0765O Side Panel 2
2 0825FS Handle Side Plastic 2
3 17292FO Top Bonnet 1
4 0607FO Access Cover 1
5 18580FO Guard Front Engine Bay 1
6 18327FB Exhaust Muffler Complete 1
7 Supp’d with engine Reserve Tank 1
8 0344 M8/16 Bolt 2
9 0438 M6/16 Pozi 3
10 0709 M6 C Washer 3
11 0391 M6 T Nyloc Nut 3
12 0701 M10 A Washer 2
13 0360 M10/25 Bolt 2
14 0067 Pop Rivet 4.8 x 12 2
Item Part No Part Name Q’ty
15 4088 Catch Plate 1
16 0235 Catch 1
17 0346 M8/20 Bolt 5
18 0712 M8 C Washer 14
19 0479 M8 P Nyloc Nut 8
20 0704 M12 C Washer 14
21 0318 M12/20 Bolt 2
22 0711 M8 A Washer 2
23 0431 M12/40 Bolt 6
24 0644 M12 P Nyloc Nut 6
25 0348 M8/20 SktCsk Bolt 4
26 17312FB Side Panel Retainer 1
27 0066 Pop Rivet 5 x 6 2
28 18581FO Front Filter Grill 1
1
2
3
4
5
2
1
9
10
11
12
13
27
15
14
16
17
18
19
19
18
25
21
20
17
18
6
x2
x6
23
20
24
x3
28
26
8
22
7
