Timberwolf TW 150VTR - Control Tower

TIMBERWOLF
TW 150VTR
40

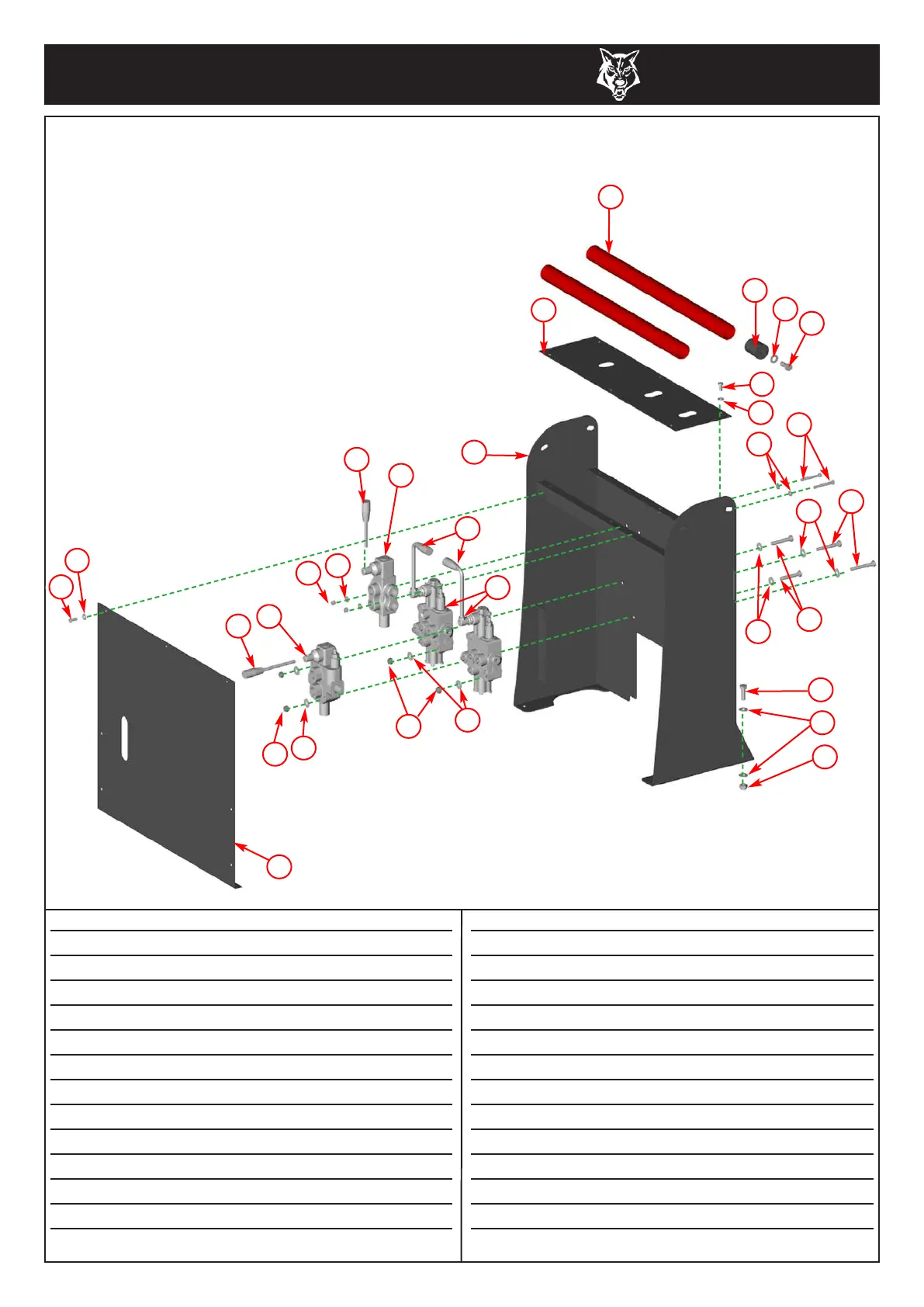

CONTROL TOWER
Item Part No Part Name Q’ty
1 1802FR Cross Bar 2
2 1879FB Control PanelTracked 1
3 0437 M6/16 Bolt 13
4 0709 M6 C Washer 17
5 0360 M10/25 Bolt 4
6 0701 M10 AWasher 4
7 1803P End Plug 4
8 1883FB Control Tower Tracked 1
9 0382 M10/30 Bolt 4
10 0839 M10 C Washer 8
11 0052 M10 T Nyloc Nut 4
12 1860 M8 Lever 1
13 1737 M8 Lever 1
Item Part No Part Name Q’ty
14 1738 Six Way Diverter Valve 1
15 3005 Four Port Valve 1
16 P*24 Proportional Crossover Valve 2
17 0142 M6 P Nyloc Nut 2
18 0481 M8 T Nyloc Nut 6
19 0712 M8 CWasher 6
20 0711 M8 A Washer 6
21 0341 M6/50 Bolt 2
22 0354 M8/60 Bolt 4
23 1319 M8/50 Bolt 2
24 1882FB Hose Guard 1
25 18850F L-shaped Track Handle 2
2
1
4
Date Last Modified: 27th Sept 12
7
11
3
3
5
x7
x6
8
6
9
10
x4
x4
4
x2
x2
x2
21
22
19
4
23
19
20
13
15
18
18
20
16
12
25
17
4
14
24
x2
