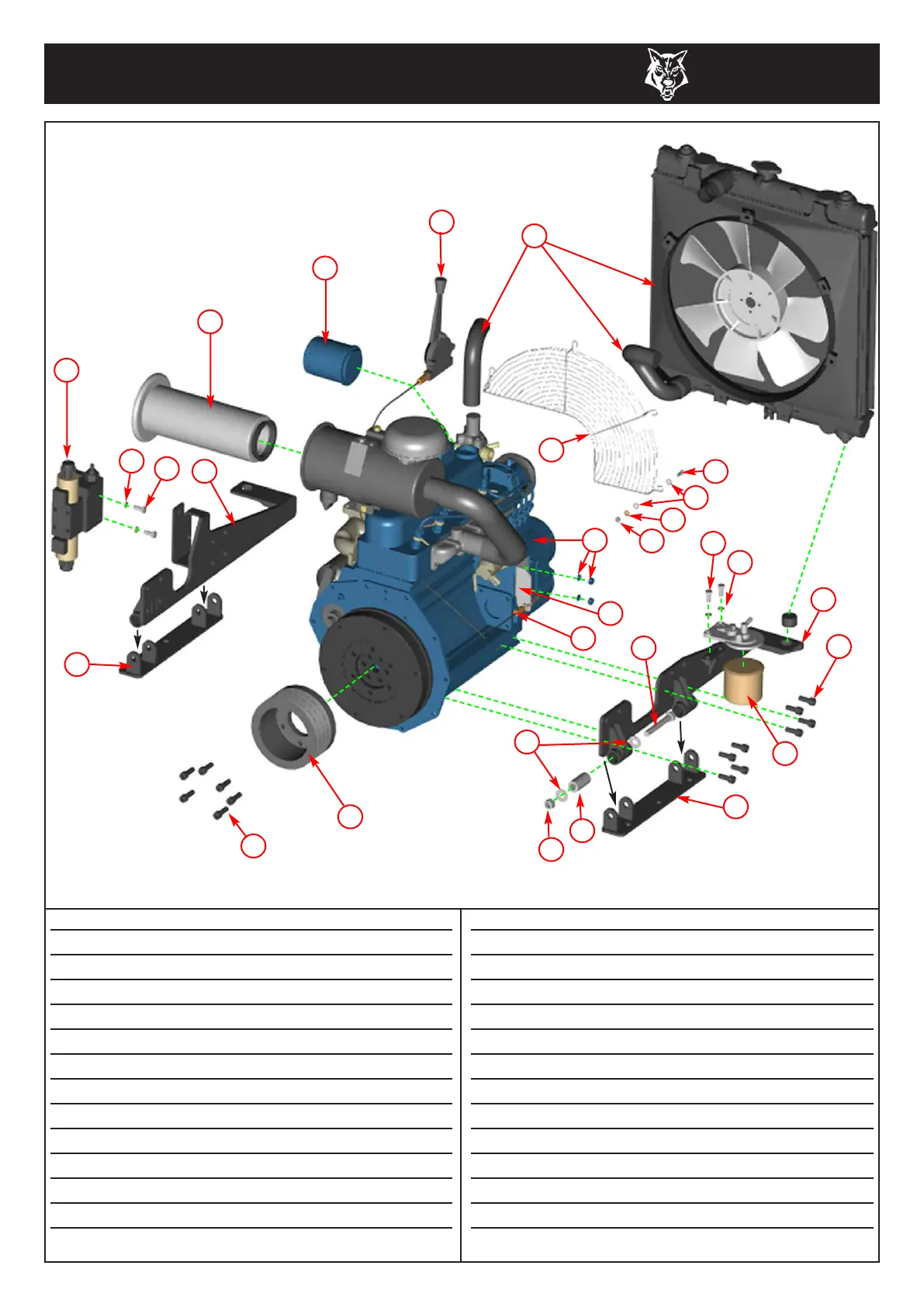

Timberwolf TW 150VTR - Engine

TIMBERWOLF
TW 150VTR
45
ENGINE
Date Last Modified: 17th Dec 09
Item Part No Part Name Q’ty
1 2946 Throttle Cable 1
2 0095 Oil Filter 1
3 0086 Air Filter 1
4 4252 Directional Control Valve 1
5 4319 Radiator Kit 1
6 0711 M8 A Washer 4
7 0346 M8/20 Bolt 2
8
19156FB Engine Bracket Nearside 1
9 1170 Pulley Engine 150 x 4 1
10 0879 Engine 1
11 0350 M8/25 Bolt 2
12
19155FB Engine Bracket Offside 1
13 0304 M10/25 Fine Thread Socket Cap 22
Item Part No Part Name Q’ty
14 0085 FuelFilter 1
15 2954 Throttle Cable Bracket 1
16 1170M Pulley Engine 168 x 4 1
17 4335 Radiator Fan Guard 1
18 0437 M6/16 Bolt 4
19 0709 M6 C Washer 8
20 18106 M6 Spring Washer 4
21 0392 M6 Plain Nut 4
22
0644 M12 PNyloc Nut 4
23
18338FS Engine Bracket Base 2
24 0332 M12/90 Bolt 4
25 18332 AV Mount 4
26 0704 M12 C Washer 4
