Timberwolf TW 150VTR - Electrical Layout

TIMBERWOLF
TW 150VTR
44

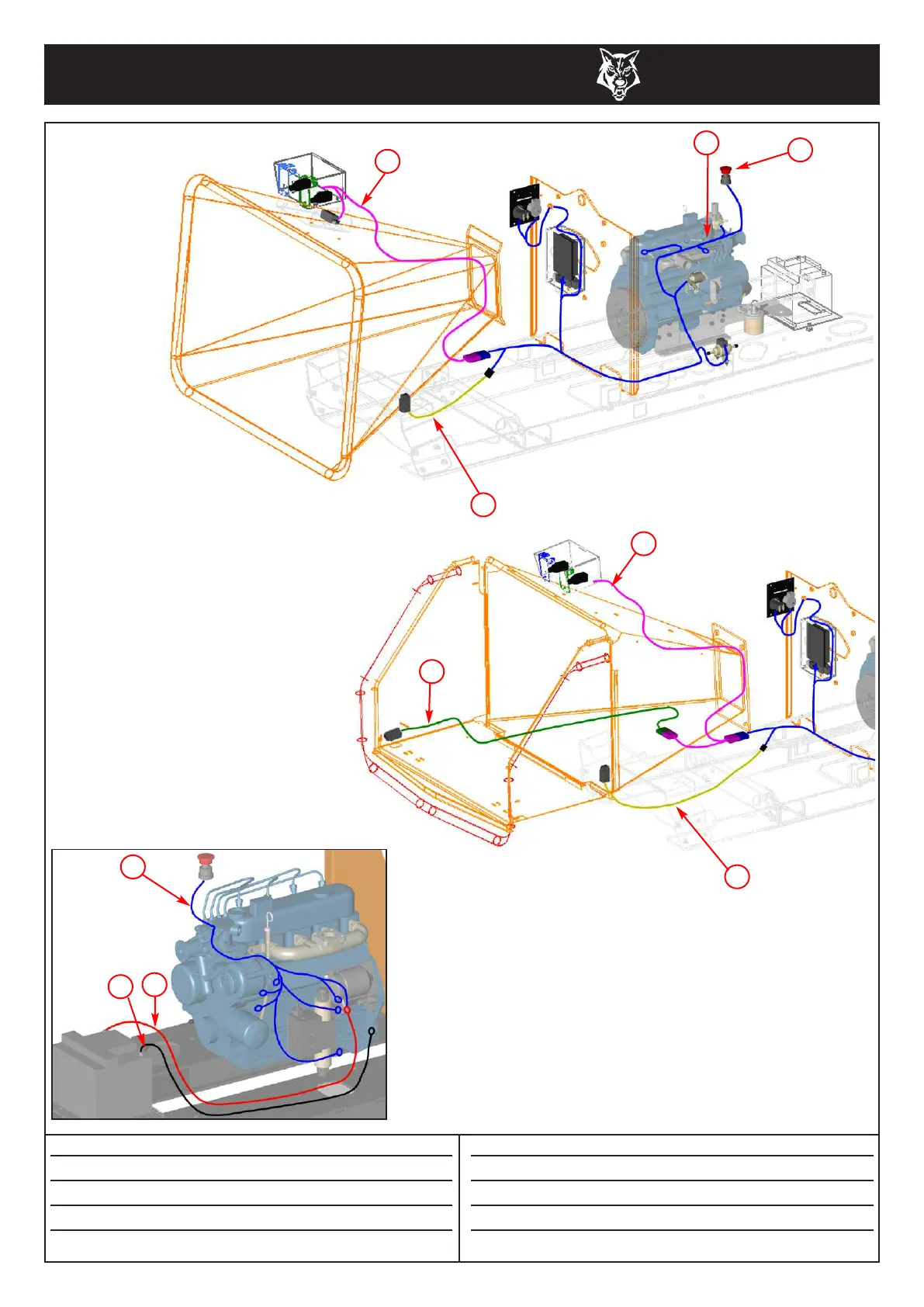

ELECTRICAL LAYOUT
Item Part No Part Name Q’ty
1 3019 Control Box Loom 1
2 18481 Engine Loom 1
3 2627 Emergency Stop Switch 1
4 4017 Safety Switch Loom 1
Item Part No Part Name Q’ty
5 1376
-
VE Battery Cable 1
6 1375
+
VE Battery Cable 1
7 1406 Safety Bar Loom 1
8 1975 Control Box Loom 1
1
2
Date Last Modified: 11th March 08
3
5
6
2
8
7
LOW FUNNEL
HIGH FUNNEL
4
4
