Timberwolf TW 150VTR - Discharge

TIMBERWOLF
TW 150VTR
41

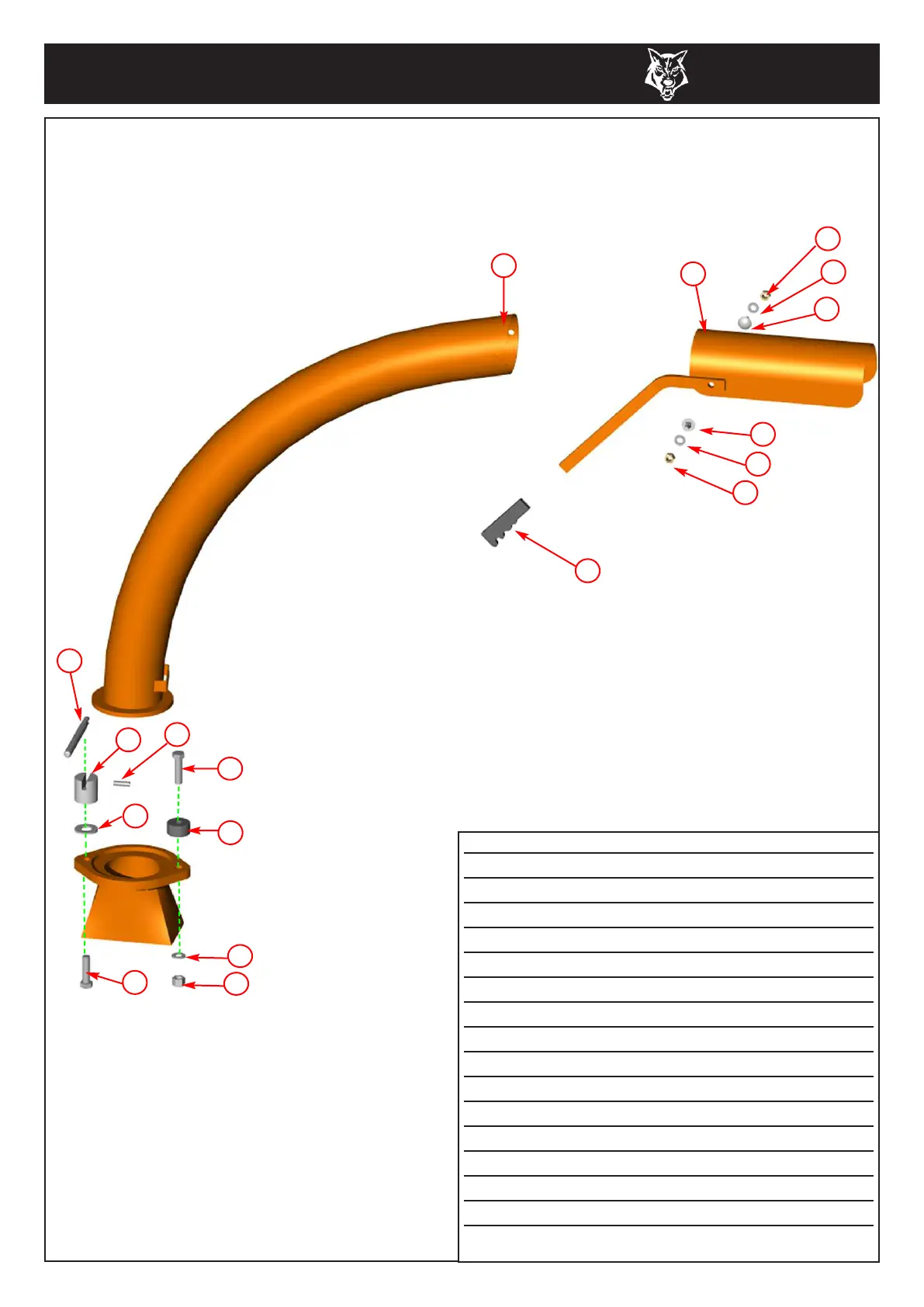

DISCHARGE
Item Part No Part Name Q’ty
1 0904FO Discharge Tube 1
2 0523FO Discharge Bucket 1
3 0045 M12 T Nyloc Nut 2
4 0702 M12 A Washer 2
5 0320 M12/25 Cup Square 1
6 0430 M12/35 Cup Square 1
7 0134 Black Handle Grip 1
8 1649MS Discharge Clamp Handle 1
9 4109M M16 Clamp Nut 1
10 4131 Roll Pin 1
11 0434 M16/70 Hex Bolt 1
12 1354 M16 C Washer 1
13 2837M Clamp Nut Small 1
14 1511 M16 P Nyloc Nut 1
15 0832 M24 Washer 1
16 0333 M16/60 Hex Bolt 1
1
11
6
3
7
2
Date Last Modified: 19th Dec 07
