Timberwolf TW 150VTR - Engine Bay

TIMBERWOLF
TW 150VTR
46

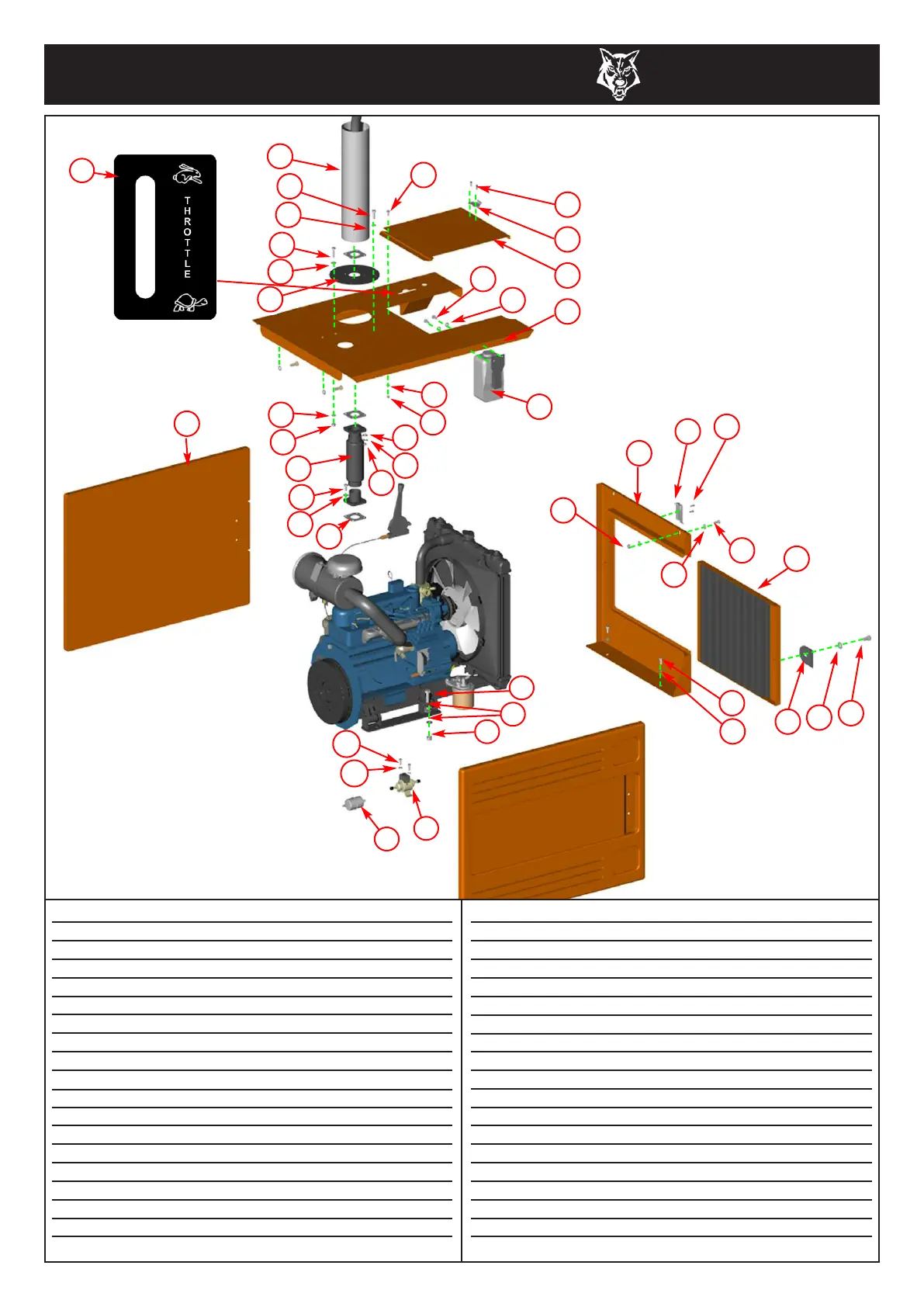

ENGINE BAY
Date Last Modified: 9th Sept 11
Item Part No Part Name Q’ty
1 2950 Throttle Decal 1
2 18915F Exhaust Muffler Complete 1
3 4320 Reserve Tank 1
4 0344 M8/16 Bolt 2
5 0438 M6/16 Pan Pozi 3
6 0709 M6 C Washer 5
7 0142 M6 P Nyloc Nut 3
8 0066 Pop Rivet 5 x 6 2
9 4088 Catch Plate 1
10 0607FO Access Cover 1
11 17292FO Top Bonnet 1
12 0807 Fuel Pump 1
13 0711 M8 A Washer 10
14 0765O Side Panel 2
15 2836FO Engine Guard Retainer 2
16 4315 In-Line Fuel Filter 1
17 0704 M12 C Washer 14
18 0318 M12/20 Bolt 2
Item Part No Part Name Q’ty
19 0346 M8/20 Bolt 10
20 18580FO Front Engine Bay Guard 1
21 0235 Catch 1
22 0350 M8/25 Bolt 2
23 0712 M8 C Washer 12
24 1757 M8 P Nyloc Nut 6
25 0431 M12/40 Bolt 6
26 1008 Spring Washer 4
27 0476 M8 Plain Nut 4
28 17988 Gasket 3
29 0644 M12 P Nyloc Nut 6
30 0437 M6/16 Bolt 2
31 18581FO Shroud Radiator withGrille 1
32 0067 Pop Rivet 4.8 x 12 2
33 18117 M8/35 Bolt 4
34 18851 Muffler Plate 1
35 19092 Flexi Adaptor 1
36 0714 M8 Mudguard Washer
15
17
18
22
23
26
27
x3 each side
16
12
20
24
1
8
9
10
11
2
5
6
7
x3
4
13
3
14
33
13
34
19
23
35
24
x4
x4
36
13
36
37
21
32
19
23
x2
x2
31
30
6
28
19
23
x4
28
