Timberwolf TW 150VTR - Electrical;Control Panels

TIMBERWOLF
TW 150VTR
43

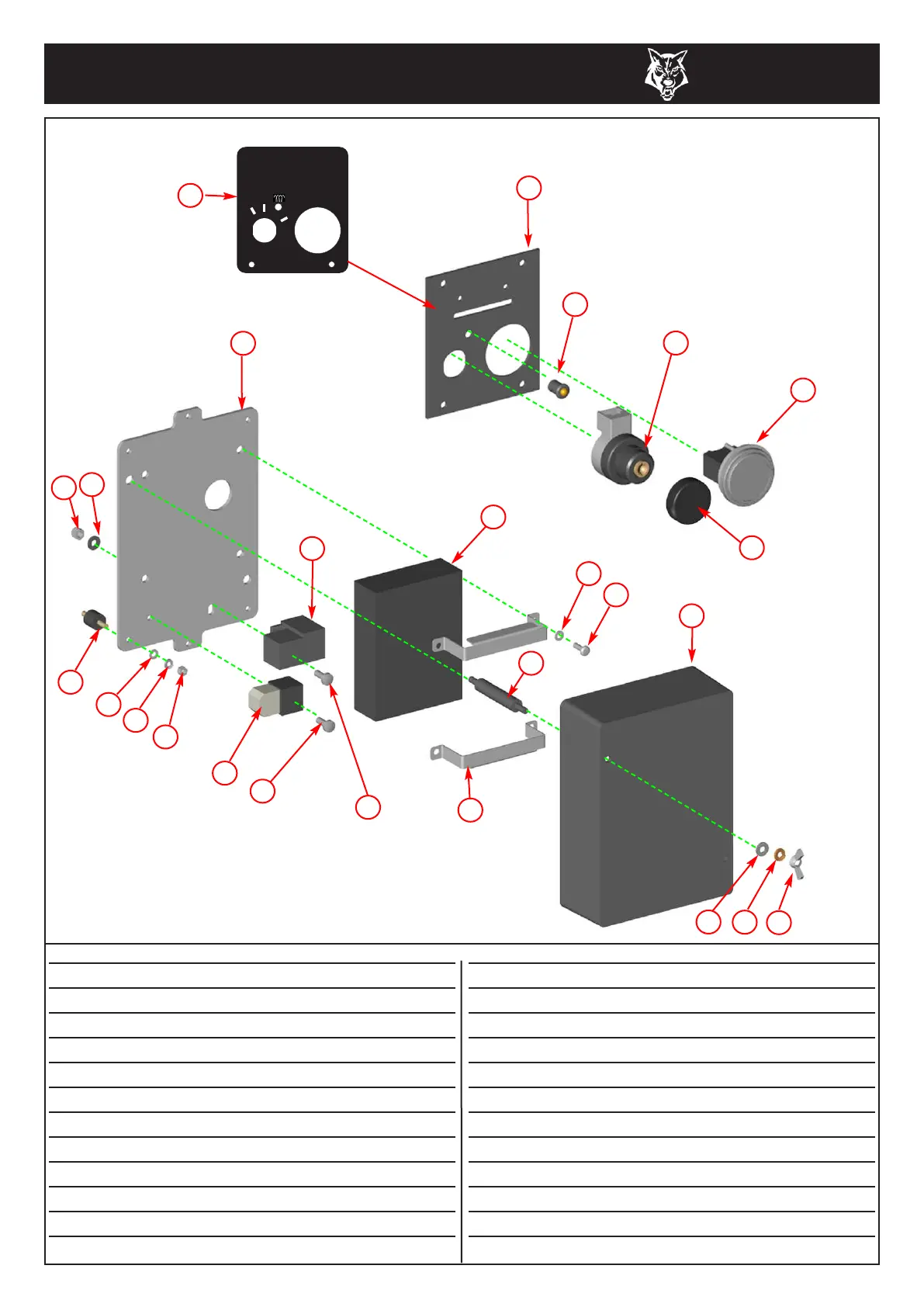

ELECTRICAL/CONTROL PANELS
Date Last Modified: 11th March 08
3
18
10
Item Part No Part Name Q’ty
1 1758S Control Panel 1
2 1757 Amber LED 1
3 Supp’d with engine Ignition Switch 1
4 0327 Hours Counter 1
5 18008 Control Panel Decal 1
6 3038FS Electrical Panel 1
7 18405 H-Box 1
8 0857 M5 AWasher 8
9 0435 M5/16 Pan Pozi 4
10 2725 Electrical Cover Stand Off 2
11 1930 Electrical Cover 1
12 18107 M6 Wing Nut 2
Item Part No Part Name Q’ty
13 18106 M6 Spring Washer 2
14 0709 M6 C Washer 4
15 Supp’d with loom Relay 1
16 0391 M6 T Nyloc Nut 2
17 4033 M5 AV Mount 4
18 Supp’d with loom Fuse 2
19 0236 M5 P Nyloc Nut 4
20 0438 M6/16 Pan Pozi 1
21 1151 Countersunk Pop Rivet 1
22 3024 M5 Spring Washer 4
23 1470 Rubber Protector 1
24 18398 Mounting Bracket 4
21
12
13
9
8
7
4
1
2
6
11
14
x4
x4
x2
17
8
19
16
14
15
0
1
2
5
20
22
23
24
