Timberwolf TW 150VTR - Fuel Tank

TIMBERWOLF
TW 150VTR
47
FUEL TANK

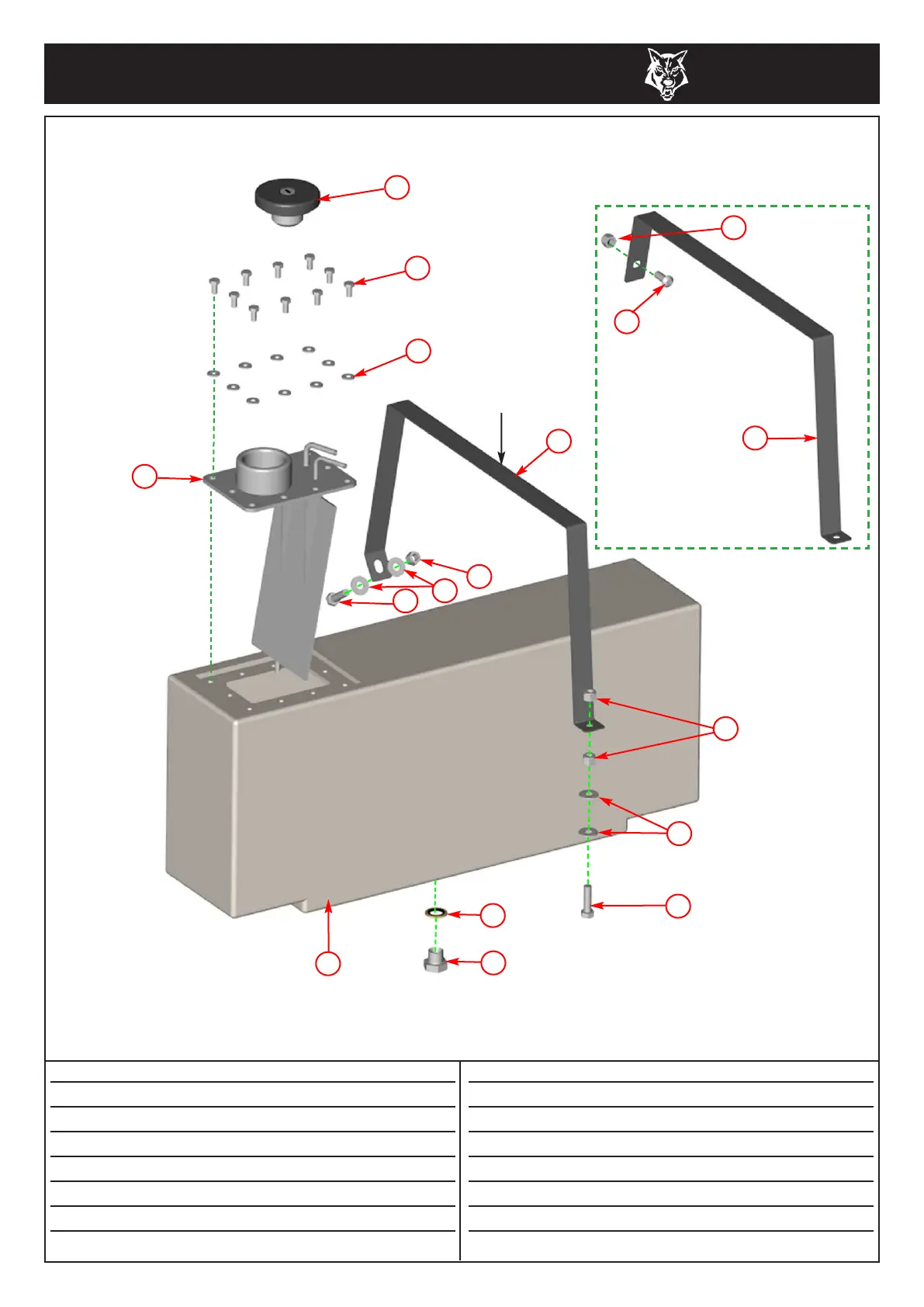

Item Part No Part Name Q’ty
1 1374 Locking Tank Cap 1
2 1658 M6/12 Bolt 10
3 0709 M6 C Washer 10
4 1576FS Tank Top 1
5 18391K Fuel Tank Kit (inc. parts 6 & 7) 1
6 0396 3/8” Dowty Washer 1
7 0211 3/8” Drain Plug 1
Item Part No Part Name Q’ty
8 4087F Tank Strap 1
9 1757 M8 P Nyloc Nut 4
10 0712 M8 C Washer 4
11 0346 M8/20 Bolt 1
12 0351 M8/30 Bolt 1
13 0347 M8/20 Button Head 1
14 18042F Tank Strap (short) 1
1
2
4
5
6
7
Date Last Modified: 5th Dec 07
3
8
9
10
11
9
10
12
models
with low
funnel only
13
9
models
with high
funnel only
14
