Timberwolf TW 150VTR - Chassis

TIMBERWOLF
TW 150VTR
36
CHASSIS (1)
Item Part No Part Name Q’ty
1 0346 M8/20 Bolt 2
2 0711 M8 A Washer 2
3 1868 M8 AV Mount 2
4 1691FS Switch Back Plate 1
5 1692 Limit Switch 1
6 1006 M4/30 Pan Pozi 2
7 4210 Battery 1
8 3042FB Chassis Bridge 1
9 0360 M10/25 Bolt 2
10 0701 M10 A Washer 20
11 0479 M8 P Nyloc Nut 4
12 0052 M10 T Nyloc Nut 4
13 18040FS Battery Clamp 1
14 0256 M5/16 Csk Socket Screw 6*
15 0708 M5 C Washer 6*
16 4092 Draw Latch High Funnel 1, Low Funnel 2
17 3010FB Funnel Support 1
18 18102 M5 T Nyloc Nut 6*
19 1812 M10/35 Bolt 12
20 2990FB Near Side Beam 1
21 2991FB Off Side Beam 1
22 0839 M10 C Washer 10
23 4008B Jacking Beam Cover 1
24 4007FB Jacking Beam 1
25 0354 M8/60 Bolt 1
26 0481 M8 T Nyloc Nut 3
Item Part No Part Name Q’ty
27 0321 M12/30 Bolt 8
28 0704 M12 C Washer 16
29 0644 M12 P Nyloc Nut 8
30 1628 M16/35 Bolt 4
31 1143 M16 A Washer 4
32 1796 M16 AV Mount 4
33 0382 M10/30 Bolt 8
34 1869FB Track Mount Adapter Bracket 1
35 4106FB Tank Stop Bar 1
36 2930 Rubber Buffer 1
37 4067S D Rubber Fixing Plate 1
38 0702 M12 A Washer 2
39 0431 M12/40 Bolt 2
40 18037 M8/12 Bolt 6
41 0712 M8 C Washer 15
42 4105 Chain 40 x 16 x 3.8 2
43 4094 R Clip 5 mm x 85 2
44 18041 M8 x 170 Hook Bolt 2
45 18039FB Battery Tray 1
46 0350 M8/25 Bolt 2
47 1644 AV Mount 4
48 18038FS Battery Base Plate 1
49 0347 M8/20 Button Head 1
50 0382 M10/30 Bolt 2
51 P*163 Clamp Plates 4
Date Last Modified: 14th Sept 12

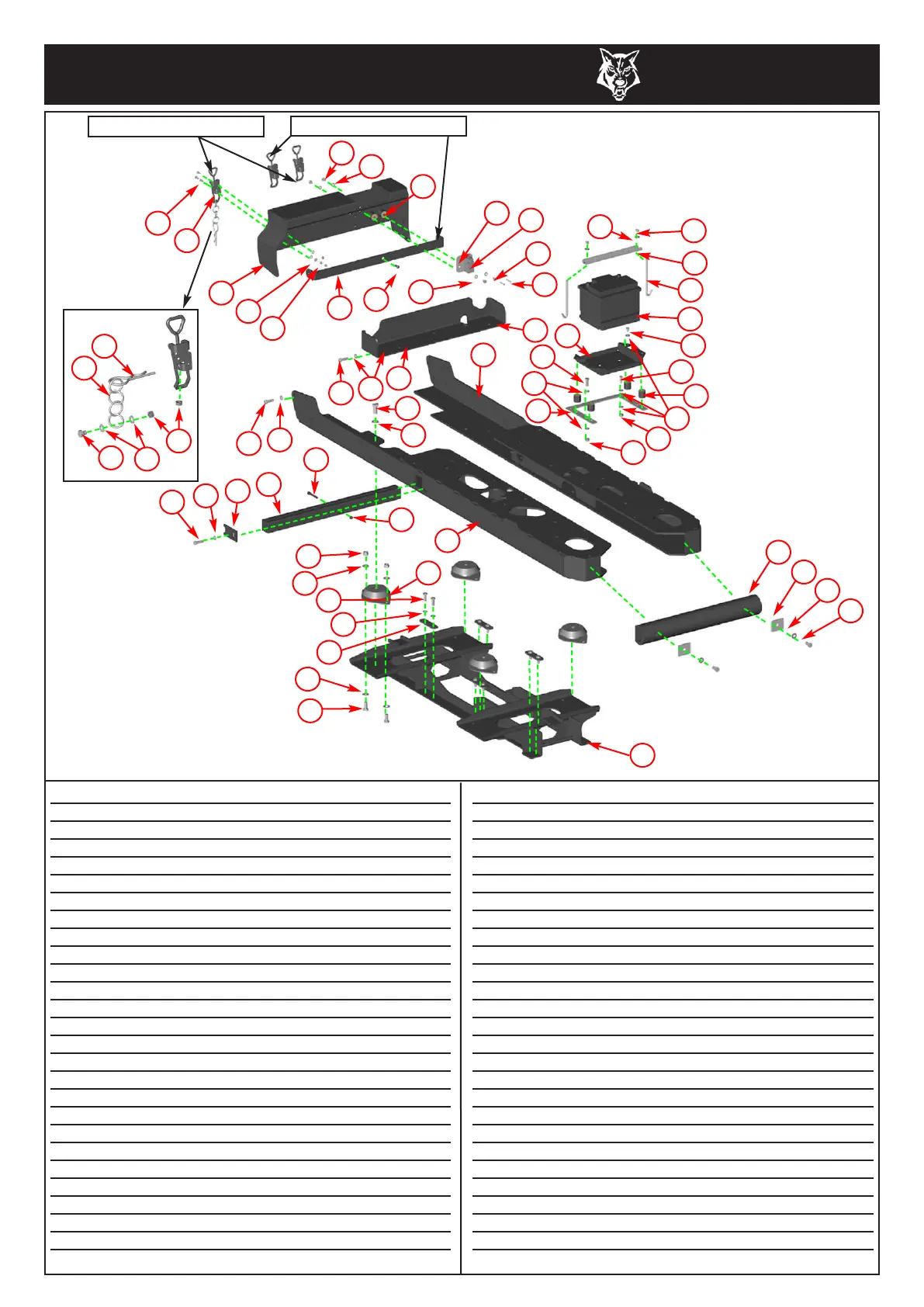

14
