TIMBERWOLF
TW 150VTR
37

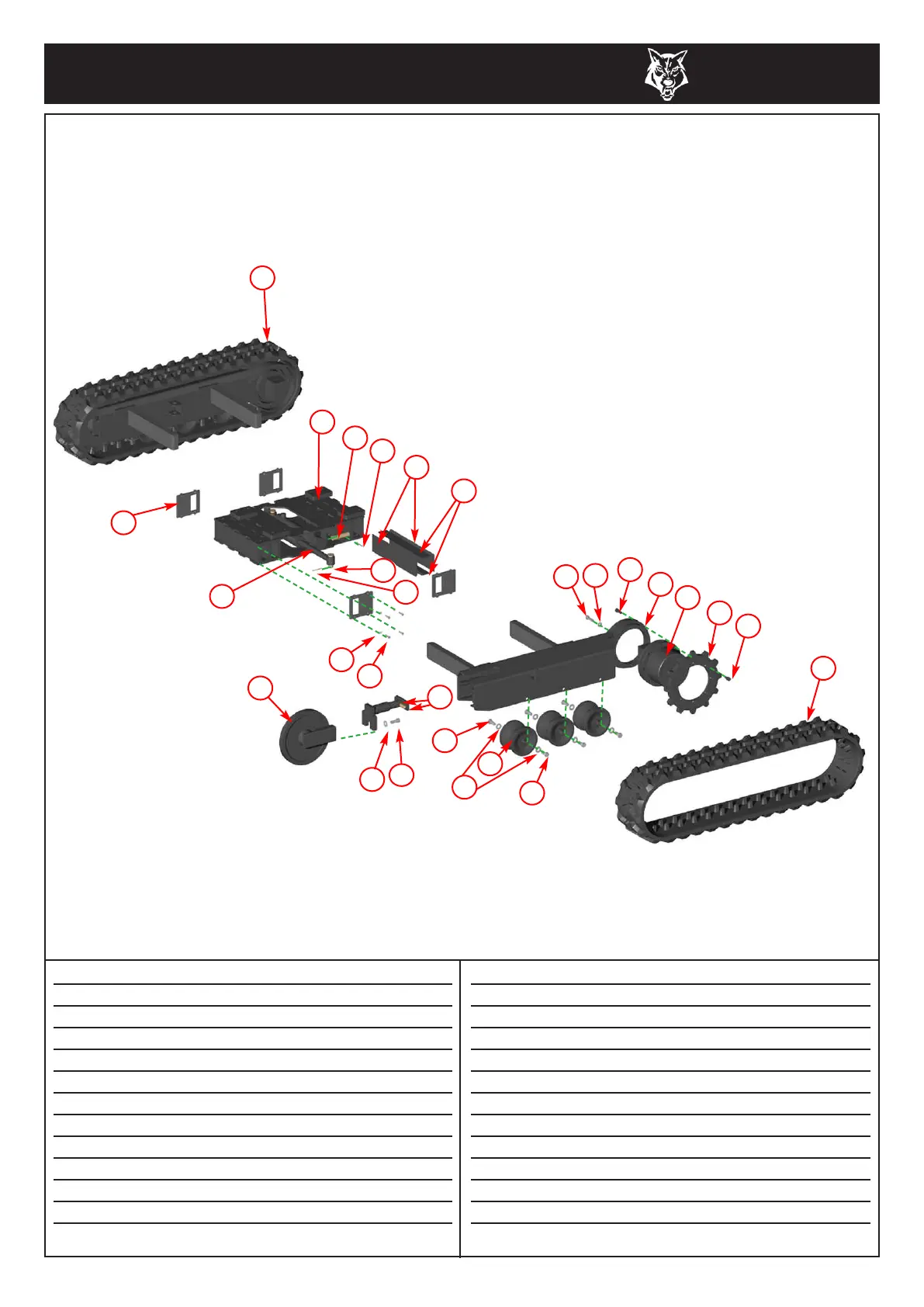

CHASSIS (2)
Item Part No Part Name Q’ty
1 18952 Crawler Track Assy 2
2 3077FB Slip Retainer 4
3 3074FB Variable Track Bridge 1
4 18014MS Cylinder Pin 4
5 1276 Split Pin 4
6 4045 Plastic Strip 8
7 4044 Plastic Strip 8
8 18105 M5/20 Bolt 16
9 4046 Hydraulic Cylinders 2
10 0708 M5 C Washer 16
11 18955 VTR Track Frame (handed pair) 1
12 1629 M10/25 Caphead 14
Item Part No Part Name Q’ty
13 18951 Motor Gear Box 2
14 19035 Sprocket 2
15 0373 M10/20 Caphead 16
16 19033 Rubber Track 2
17 19034 Bottom Roller 6
18 0704 M12 C Washer 12
19 0321 M12/30 Bolt 12
20 19036 Adjuster/Tensioner 2
21 0382 M10/30 Bolt 4
22 0701 M10 A Washer 4
23 19037 Idler Wheel 2
24 4068 M10/40 Bolt 2
1
Date Last Modified: 7th Jan 10
3
x4
7
6
4
5
4
5
9
10
8
2
12
11
13
14
15
17
18
19
19
20
21
22
23
16
22
24
