Timberwolf TW 150VTR - Page 39

TIMBERWOLF
TW 150VTR
38

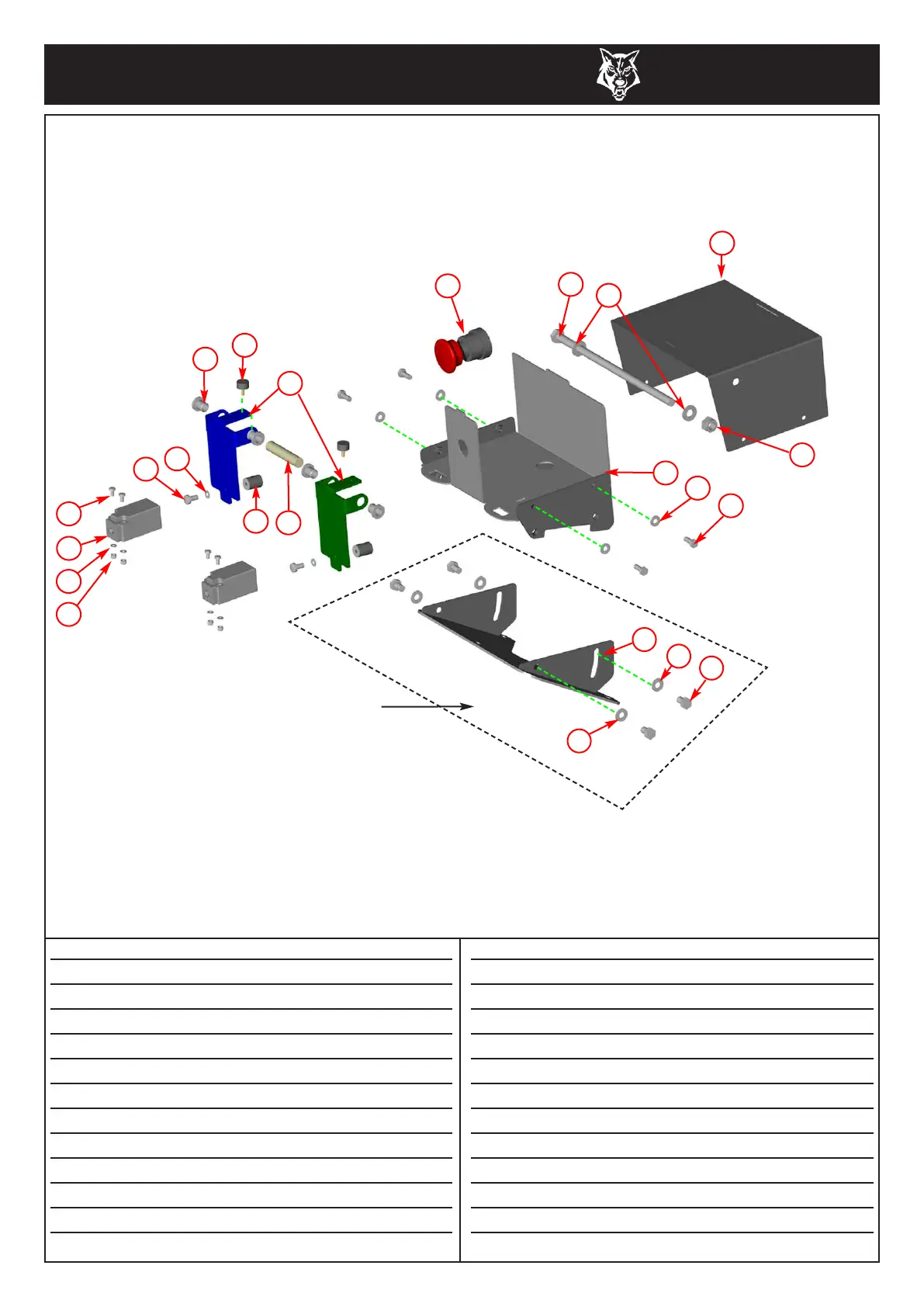

CONTROL BOX
Item Part No Part Name Q’ty
1 2794FB Control Box Cover 1
2 2803 M10/240 Bolt 1
3 0839 M10 C Washer 2
4 4345 M10 P Nyloc Nut 1
5 2795FB Control Box Base 1
6 0709 M6 C Washer 4
7 1658 M6/12 Bolt 4
8 2853 Stop Switch 1
9 2796FS Finger Plate 2
10 2834 AV Mount 2
11 2804 Bush M10 Top Hat 4
12 2807 AV Mount 20 x 16 2
Item Part No Part Name Q’ty
13 0857 M5 AWasher 2
14 18103 M5/8 Pan Pozi 2
15 18168 M4/35 Pan Pozi 4
16 1348 Limit Switch 2
17 18100 M4 Washer 6
18 18235 M4 P Nyloc Nut 6
19 made in production 65mm Spacer 1
20 2793FB Bracket Mounting Control Box 1
21 0712 M8 CWasher 2
22 0344 M8/16 Bolt 4
23 0711 M8 A Washer 2
2
1
8
11
9
10
15
13
14
20
21
22
3
4
5
12
6
7
16
17
18
Date Last Modified: 21st July 05
19
23
This section only fitted
on models with high
funnel/tray.
