2.7 Tilt Survey 2.0
After connecting the receiver with the TSI software, active the tilt survey function Slope Method 2.0 in Data
interface of the Surveying congure tab, then surveyor can carry out the tilt survey.
In this mode, when the user collect detail points in Detail Survey interface, the software will remind users to
shake the receiver to complete the tilt survey. At this time, the host can complete the collecting by shaking the
host at a uniform speed and waiting for the progress bar to reach 100%.

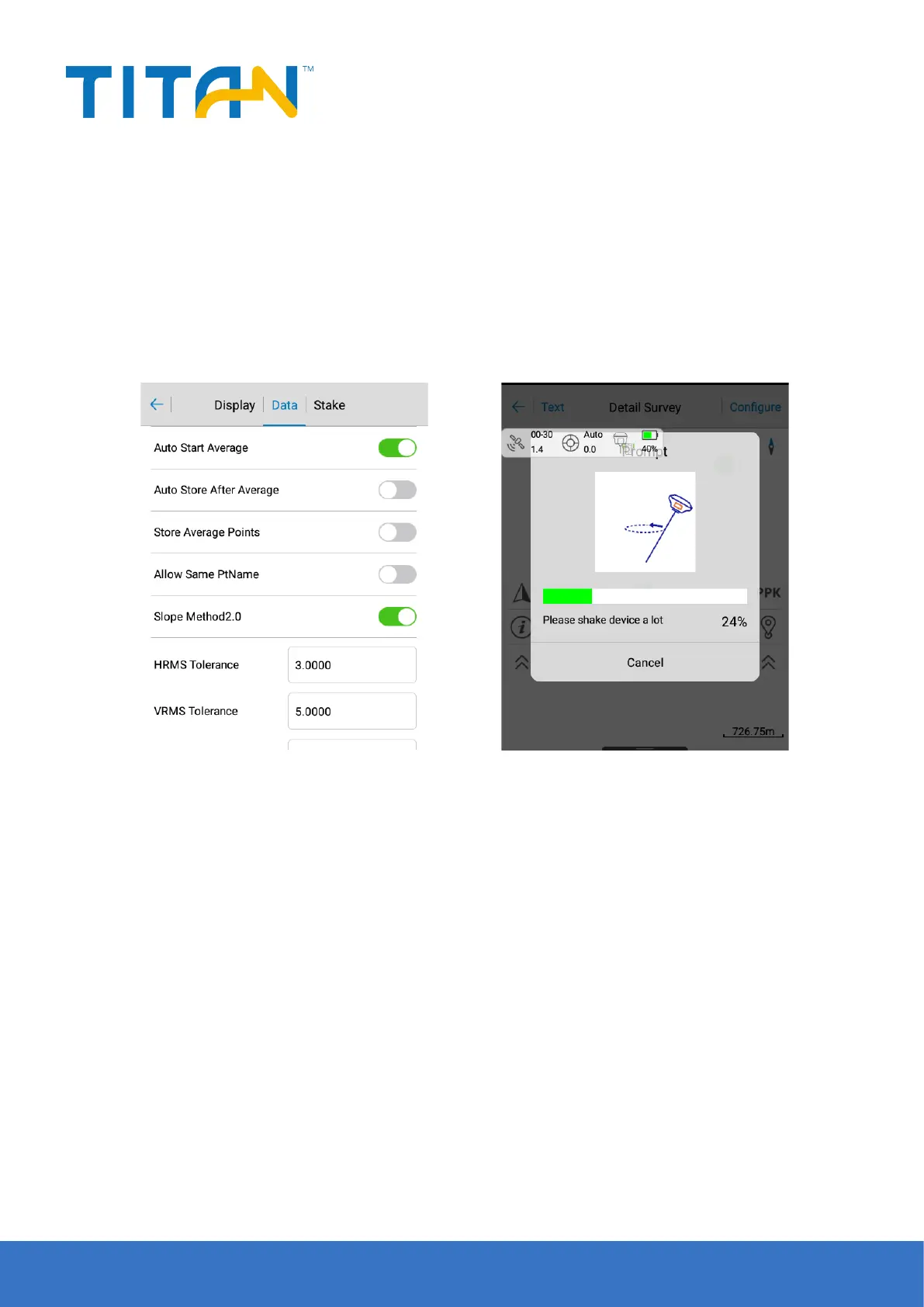

Figure 2-7-1 Active the tilt survey function Figure2-7-2 Tilt survey progress
