(1) Equipment Connection
Connect video output equipment to the encoder HDMI input (or HD-SDI input).
Connect video input equipment to the decoder HDMI output.
Connect the LAN ports of the encoder and decoder to the router. (If you want to
check operation without connecting to a network, directly connect the encoder
and decoder LAN ports to each other.)
Turn on the equipment.
(2) Decoder Settings
Connect the setup PC to the decoder remote port and configure the settings below.

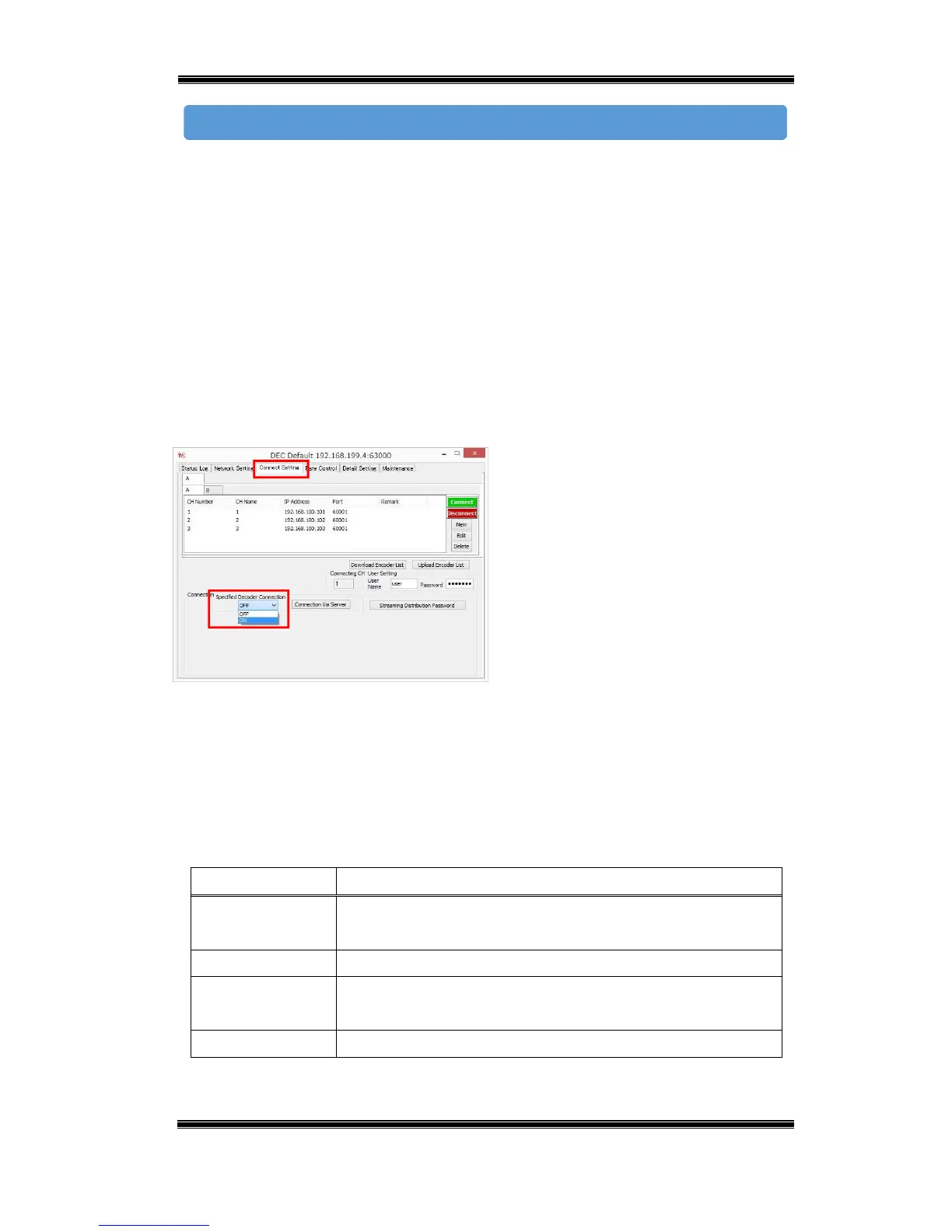

Figure 5-9 Decoder – Specified Decoder
Connection
■ Start up DECODER.
■ On the Connect Setting tab, select ON
for [Specified Decoder Connection].
(3) Encoder Settings
Connect the setup PC to the encoder remote port and configure the settings below.
Table 5-5 Specified Decoder Connection – Encoder Settings
Setting Description
Connect State Selecting a check box causes the stream to be transmitted to
that decoder.
Decoder IP Sets the transmission destination decoder IP address.
Decoder Port Sets the transmission destination decoder port number. (0 to
65535)
Remarks Remarks text (Up to 16 single-byte characters)
To Next Page
