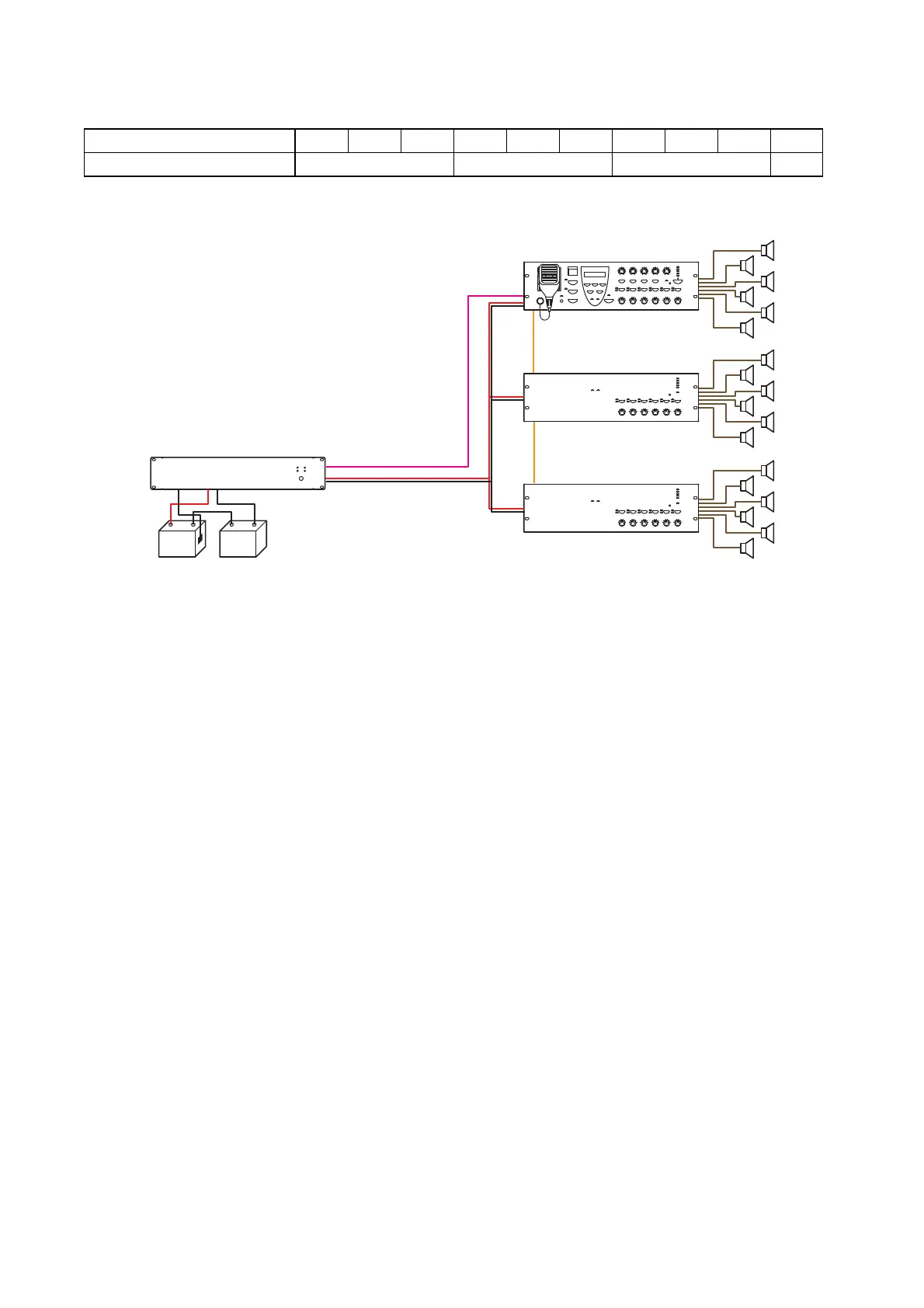

Below is an example showing that one VX-2000DS is required in a system including 3 VM amplifiers.
VM-3240VA
VM-3240E
VM-3240E
Lead-acid Battery
VX-2000DS
VM LINK
DC POWER
DS LINK
VM LINK
Number of VM amplifiers 1 2 3 4 5 6 7 8 9 10
Number of VX-2000DS' 1 2 3 4
[Required number of VX-2000DS units]
One VX-2000DS is required every 3 VM amplifiers.
