TOHATSU M40D2 - Proper Trim Angle; Improper Trim Angle (Bow Rises Too High); Improper Trim Angle (Bow Dips Into Water); Trim Angle Adjustment (Manual Tilt Type)

ENGINE OPERATION52
7
ENOM00052-0

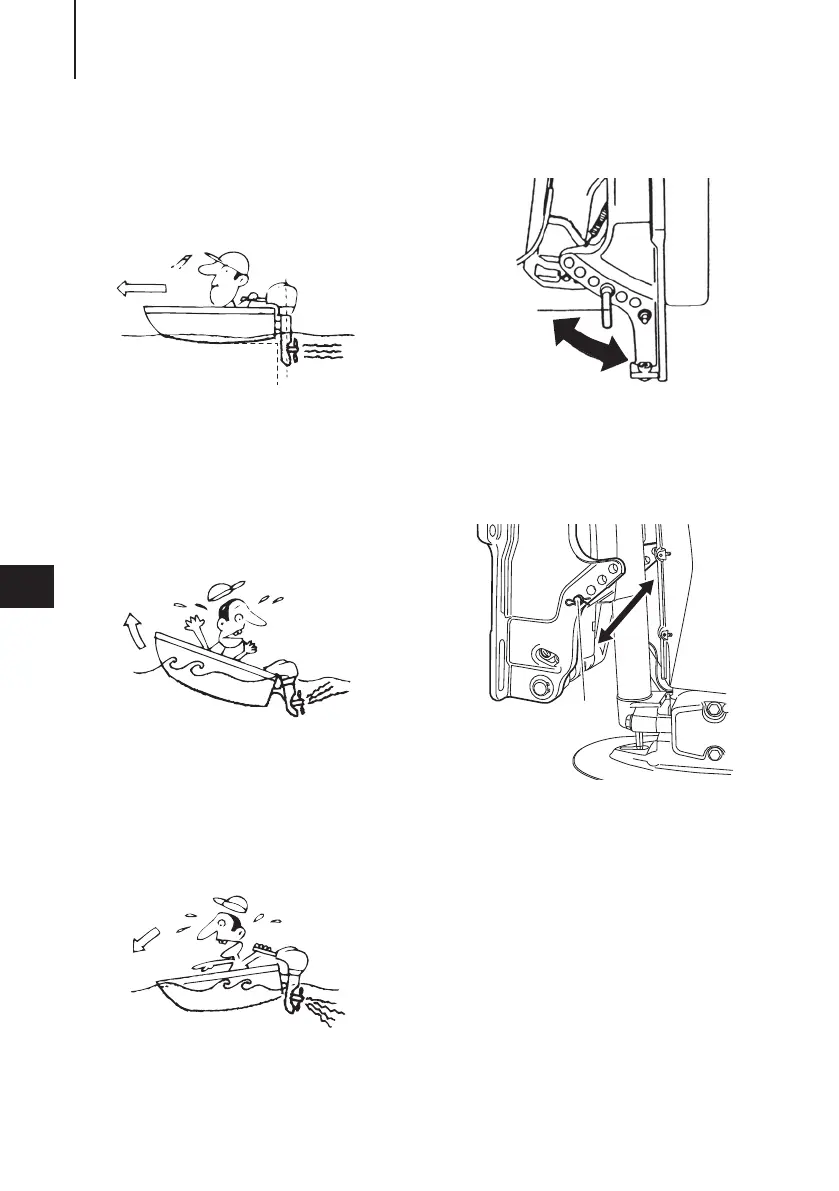

Proper trim angle
The position of the thrust rod is correct if
the hull is horizontal during operation.
1. Perpendicular to the water surface
ENOM00053-0
Improper trim angle (bow rises too
high)
Set the thrust rod lower if the bow of the
boat rises above horizontal.
ENOM00054-0
Improper trim angle (bow dips into the
water)
Set the thrust rod higher if the bow of
the boat is below horizontal.
 Manual Tilt type
1. Thrust rod
2. Higher
3. Lower
 Power Trim & Tilt type
1. Thrust rod
2. Higher
3. Lower
Trim angle adjustment (Manual Tilt type)
The transom angle adjustment
1. Stop the engine.
2. Shift into neutral position.
3. Tilt up the outboard motor.
1
ENOF00051-1
ENOF00052-0
ENOF00053-0
1
3
2
ENOF00674-A
1
2
3
2
3
ENOF00888-0
