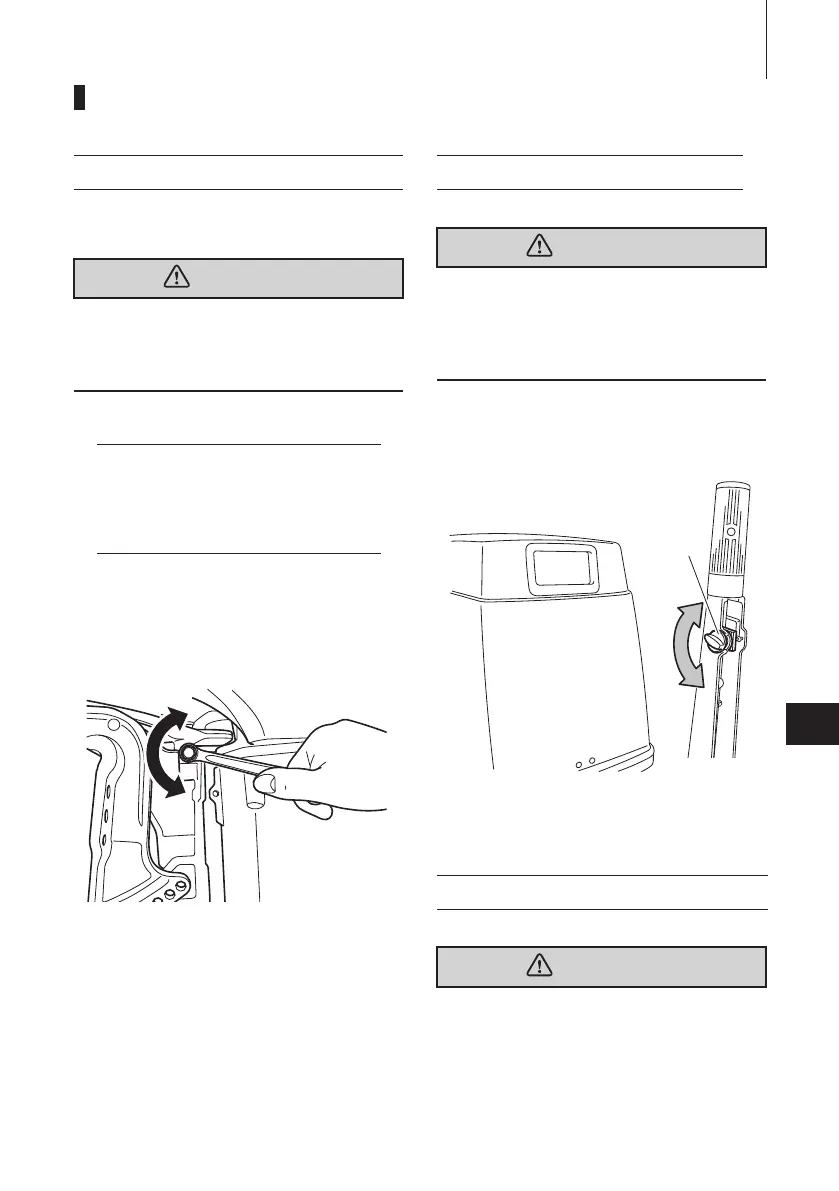

TOHATSU M40D2 User Manual

61
9
ADJUSTMENT
ENOM00073-C
Tiller handle type
ENOW00074-2
Steering may be difficult when steering fric-
tion adjustment bolt is over tightened, it may
also result in loss of control causing an acci-
dent and could lead to severe injury.
ENON00506-1
Note
The steering friction adjustment bolt is
used to adjust the friction load of the
steering. Excessive tightening of the
adjustment bolt may cause damage to the
swivel bracket.
Steering friction can be adjusted in
accordance with your preference by
turning the steering friction adjustment
bolt.
1. Steering friction adjustment bolt
2. Lighter
3. Heavier
ENOM00074-A
ENOW00074-1B
Do not overtighten the throttle adjustment
screw or it could result in difficult handling
of the outboard motor, resulting in the loss
of control causing an accident and could
lead to severe injury.
Friction adjustment of the throttle grip
can be made with the throttle adjustment
screw.
1. Heavier
2. Lighter
3. Throttle friction adjustment screw
ENOM00075-0
ENOW00074-1C
Do not overtighten the remote control
throttle friction adjustment screw or it
could result in difficult handling of the out-
board motor, resulting in the loss of control
1. Steering friction
WARNING
ENOF01922-0
1
2
3
2. Throttle grip friction
WARNING
3. Remote control lever friction
WARNING
1
2
3
ENOF01923-0
