Service Information
4st 60 2019
2) Measuring instruments
For the following measuring instruments, use commercially available ones.
Circuit tester ( Resistance : 1Ω, 10Ω, 10 kΩ, AC voltage : 30 to 300V, DC voltage : 30V )
Vernier calipers ( M1 type, 300 mm )
Micrometer ( minimum graduation of 0.01, outer, 0 to 25 mm, 25 to 50 mm, 50 to 75 mm )
Cylinder gauge ( 4 to 6 mm, 10 to 25 mm, 25 to 30 mm, 50 to 75 mm )
Ring gauge ( ø5.5, ø17, ø42, ø70 )
Dial gauge ( minimum graduation of 0.01 )
Thickness gauge ( 0.03 to 0.3 mm )
V block
Surface plate ( 500 mm x 500 mm )
Dial gauge magnet base or dial gauge stand
1. Tools and Instruments

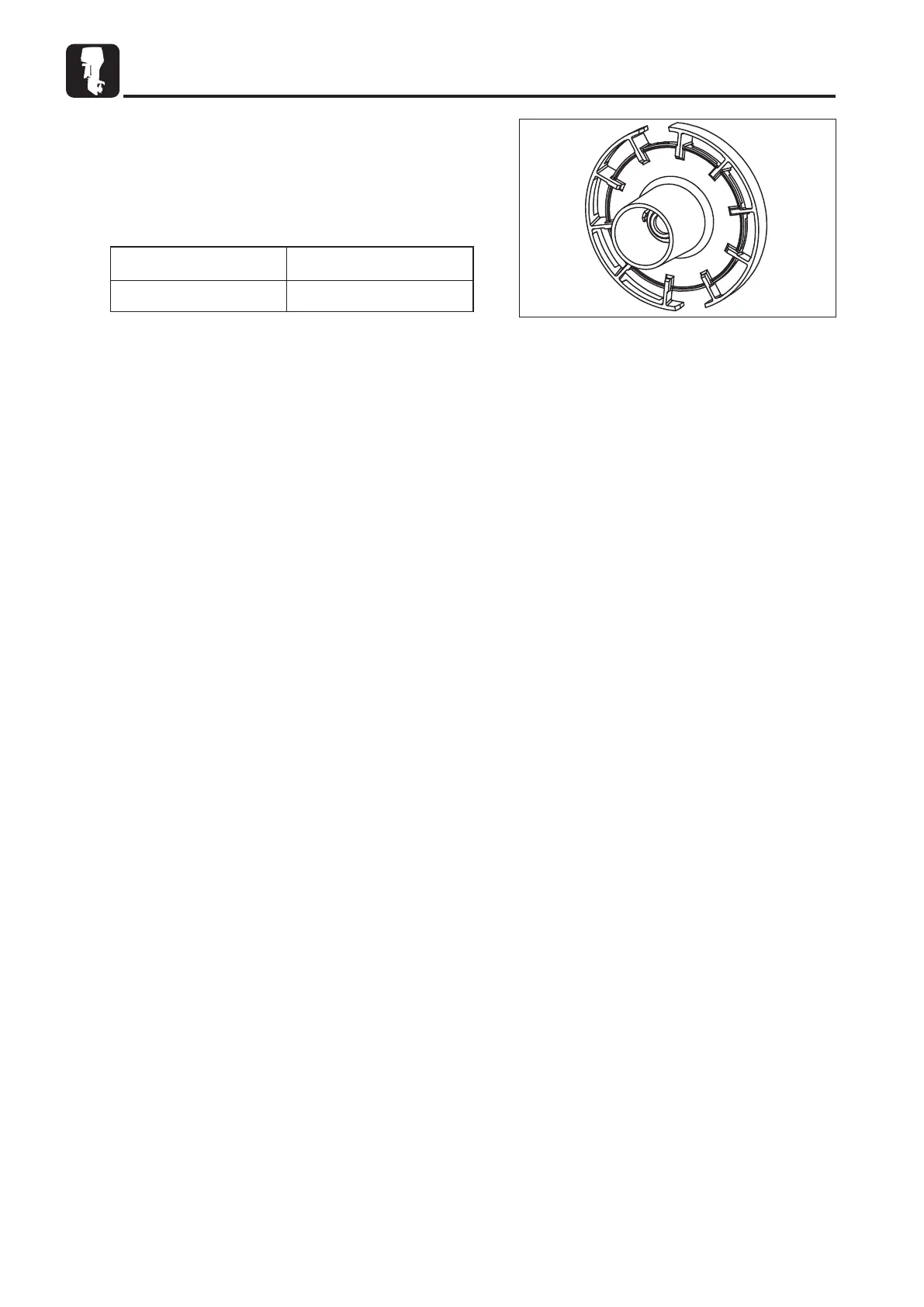

1) Test Propeller
P/N. 3UR-64110-0
Outer diameter : 236 mm
Width : 22.5 mm
Outboard motor model
Rotational speed at WOT
(Wide Open Throttle) (r/min)
MFS60A 5000 - 6000
