5
5-39
4st 60 2019
First step:
Cylinder Head Bolts (M10)
1
~
8
30 N·m (22 lb·ft) [ 3.0 kgf·m ]
Cylinder Head Bolts (M8)
9
~
14
15 N·m (11 lb·ft) [ 1.5 kgf·m ]
Second step:
Cylinder Head Bolts (M10)
1
~
8
60 N·m (44 lb·ft) [ 6.0 kgf·m ]
Cylinder Head Bolts (M8)
9
~
14
30 N·m (22 lb·ft) [ 3.0 kgf·m ]

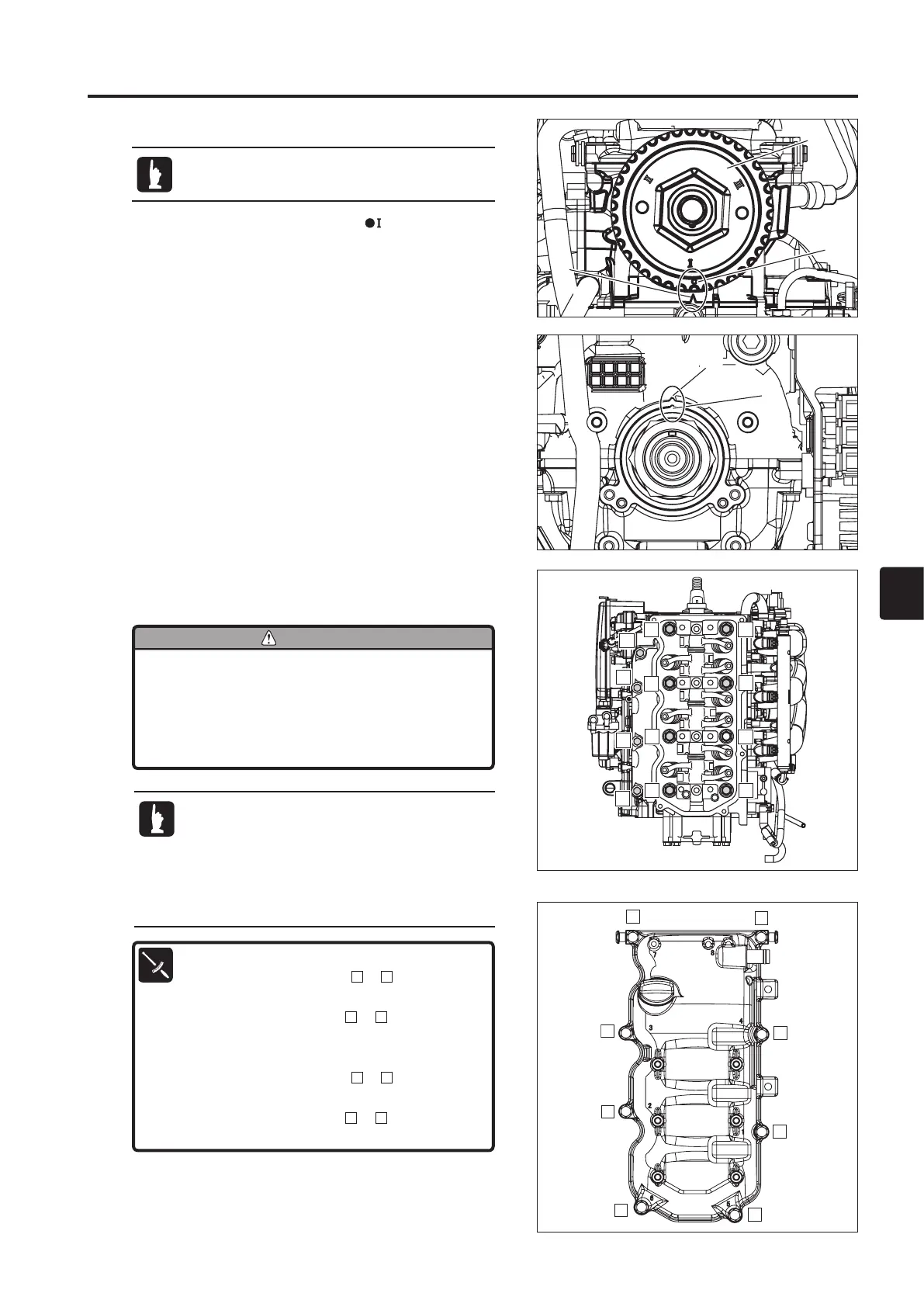

1. After installing cam shaft pulley, bring " " mark a of pulley
1 to "V" mark b of cylinder head.
2. Check that "V" mark c of belt guide and "V" mark d of
cylinder block are aligned with each other.
3. Install cylinder head with new gasket, and tighten bolts in the
order shown in two steps to specified torque.
• Do not reuse cylinder head gasket. Be sure to
replace with new one.
• Do not turn timing pulley or cam shaft pulley with
timing belt removed. Doing so can make pistons
and valves interfere with each other, resulting in
damages to these parts.
• First, tighten M10 bolts in two steps to specified
torque. Then, tighten M8 bolts in two steps to
specified torque.
• After installing cylinder head, install timing belt
and check valve clearance. For the procedure,
refer to relevant sections.
No.1 piston is to be at top dead center of
compression stroke.
22) Installation of Cylinder Head
4. Install cylinder head cover, and tighten them.
3
2
1
4
5
6
8
7
1
a
b
d
c
1
4
8
5
6
2
3
7
9
10
11
12
