Tip:
1. PWM and PPM signals can automatically
identify and switch to the corresponding interface.
2. sBus is an inverted signal. baud rate 100kbps 8-bit
data bit 2-bit stop bit even parity
===============================

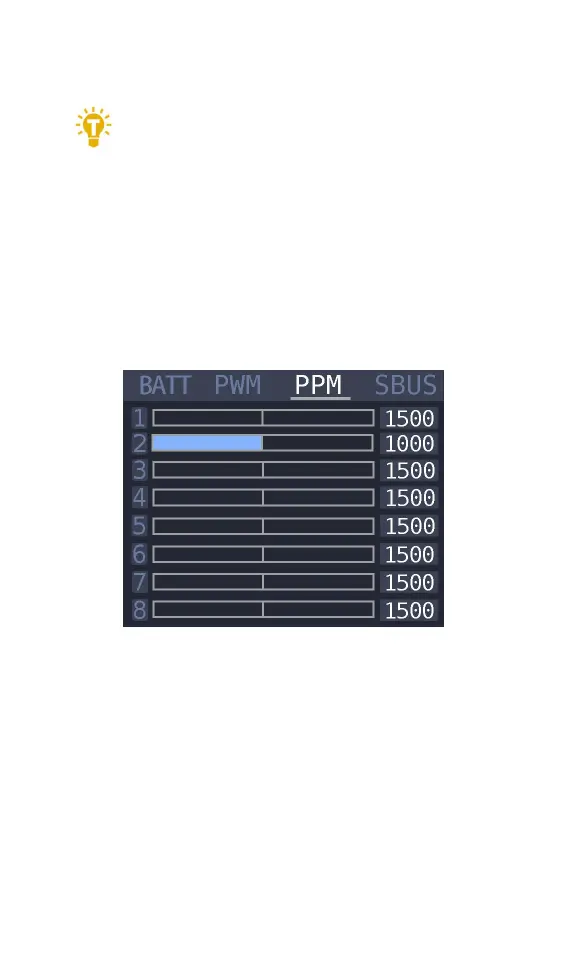

Press up or down switch on the measurement main
interface to move the cursor to the [PPM] item. press
[OK] to enter the PPM test interface as shown below.
Move the cursor to the [SBUS] item and press [OK]
to enter the compatible signal test of SBus. Dbus.
etc.. Press up or down and switch the 16 channel
value and status bit. The display interface is as
follows 2 (9-16 channel display is omitted)
